30 public designs on one GF180MCU reticle
Reserve a slot on wafer.space Run 3 Or start with Tiny Tapeout
The run as a whole: what its designs add up to.
Public designs
in 38 of the reticle's 40 slot positions
Open source
with a public repository and an open licence
Transistors
across the unique designs
Logic cells
gates and flip-flops
SRAM
in foundry and custom macros
Whole dies
and 12 half and quarter slots
Private designs on the reticle are not in the public layout and are not counted. Designs placed more than once are counted once.
Start small with a Tiny Tapeout tile, or go straight to a whole die on the next wafer.space run.
Book a die to itself on wafer.space Run 3: orders close 9 December 2026.
Reserve a slotTiny Tapeout GF 26c and 26d take projects until 7 December 2026, to be made on wafer.space Run 3.
Submit a projectEvery Tiny Tapeout chip comes on a board you can plug in, with all of its projects ready to try.
Buy a chip and board
A5 · BTAP
A4 · RZ80
A3 · TZ01
A2 · 2975
A1 · JKU2
B5 · BTAP
B4 · RZ80
B3 · TZ01
B2 · 2975
B1 · OCD2
C5 · MOSB
C4 · MOSB
C1 · OCD2
D5 · AS03
D4 · TTPG
D3 · TTP2
D2 · GD03
D1 · GD04
E5 · KIAN
E4 · BRWN
E3 · MOLE
E2 · OCD1
E1 · TQVC
F5 · JKU1
F4 · WSLG
F3 · CHES

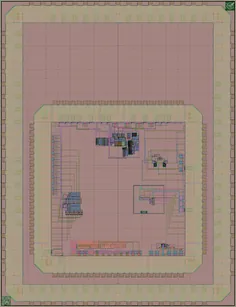

F2 · MOS2
F1 · GD04
G5 · CAFE
G4 · RZML

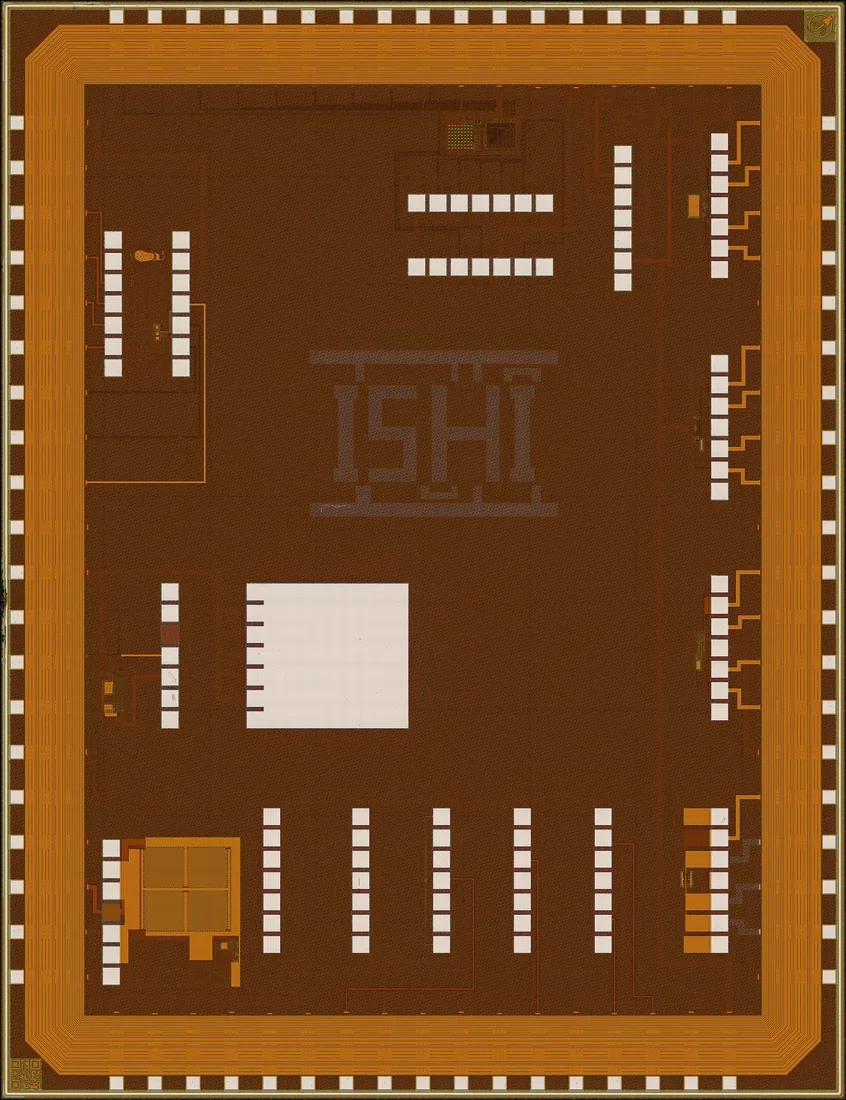

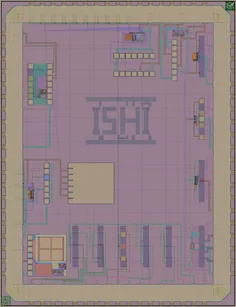

G3 · ISHI
G2 · RBOY
G1 · TQVC
H5 · HZ80

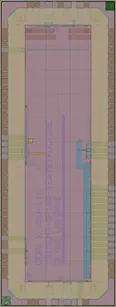

H4 · TRID
H3 · GD02
H2 · TQVB
H1 · TQVA

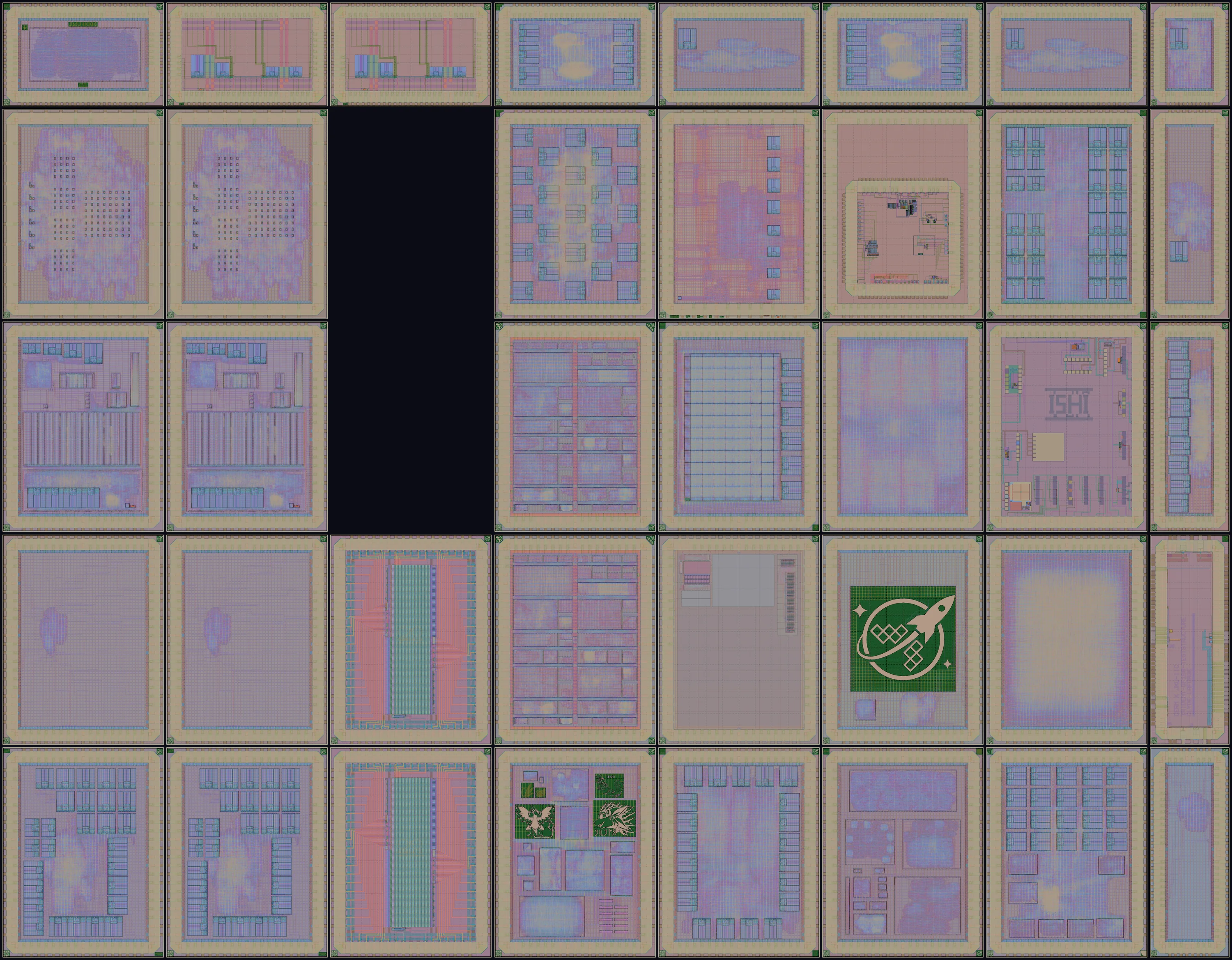

Every design rendered from the layout at the same scale and placed where it sits on the 30 × 23.4 mm reticle. Dark gaps are private designs or empty slots. Point at a die to see its name, and select it for its details.Every die is listed further down.
How much of the reticle each design took: a 1 × 1 slot is a whole die of its own, and the ½ sizes are halves and quarters of one. Some designs are placed more than once, so 30 designs fill 38 slots.
| 1 × 1 | 26 |
| 1 × ½ | 7 |
| ½ × 1 | 4 |
| ½ × ½ | 1 |
| Total | 38 |
|---|
Where this run is now, from opening orders to shipping parts.
Missed this run? wafer.space Run 3 takes orders until 9 December 2026: reserve a slot.
From the wafer.space run schedule.
Where the area of 30 dies (507 mm² of silicon) actually went
The kinds of design on this run.
RISC-V and CPUs 10 Multi-project die 5 Analog and mixed-signal 3 Retro computing 3 Memory test chip 2 Accelerators 2 Art and logos 1 FPGA 1 Security 1 Test structures 1 Other digital 1The ready-made gate libraries the designs were built from: how many tracks tall each cell is, and the voltage it runs at.
| Standard cell library | Logic cells | Share |
|---|---|---|
| 7t-5V gf180mcu_fd_sc_mcu7t5v0 | 1.7M | 77% |
| 9t-5V gf180mcu_fd_sc_mcu9t5v0 | 443k | 21% |
| AS 7t-3.3V gf180mcu_as_sc_mcu7t3v3 | 35k | 2% |
| AS extra 7t-5V gf180mcu_as_ex_mcu7t5v0 | 5k | <1% |
Each bar is one die, split the same way as above. Sorted by how much of the die is logic.
Transistor voltages and optional devices across the 30 designs
A design counts for a voltage when its standard cells, SRAM or its own transistors use it. 5 V and 6 V transistors share the thick gate oxide; a marker layer in the layout tells them apart.
Not drawn by any design: Native transistors, 10 V LDMOS, Diffusion resistors, N-well resistors, Metal resistors, Well diodes, Schottky diodes, Zener diodes, One-time programmable memory, Inductors.
Only devices outside standard cells, SRAM macros and I/O pads count, since every die has those. A single test structure counts the same as a large block. Faded names have the device only inside a reused block; hover over one to see which.
| Transistors | Own design | With the pad ring | Which (own design) |
|---|---|---|---|
| 3.3 V and 5 V/6 V | 8 | 8 | |
| 3.3 V only | 0 | 0 | |
| 5 V/6 V only | 22 | 22 | 22 designsCloneless1, WS-Multi, BreakingTTAPs, FazyRV Hachure, chess-move-generator, Racquet Half r1p0 (1/2 slot), Racquet r2p0 - 23 core SoC, Racquet Wide 1x0.5, FOSSi open-source replacement for Z80 classic 8-bit CPU (0.5 x 1 slot), gf180mcu-jku-projects, gf180mcu-jku-atbs-adc, KianV: A 32-bit RISC-V Linux SoC taped out on GF180MCU, FABulous FPGA, RISCBoy-180, FOSSi open-source replacement for Z80 classic 8-bit CPU, LGN FashionMNIST - Logic Gate Network trained on FashionMNIST, TinyQV - Crowdsourced RISC-V SoC, TinyQV - Crowdsourced RISC-V SoC (0.5x1), TinyQV - Crowdsourced RISC-V SoC (1x0.5), Tiny Tapeout GF 0.2, standard, TillitisZedulo-testchip2025, wafer.space Logo |
3.3 V transistors have the thin gate oxide; 5 V and 6 V ones share the thick one. "Own design" counts the standard cells, SRAM and transistors the designer chose; "with the pad ring" adds the transistors of the I/O pad cells, measured in each design's pad ring.
The licence each designer declared when submitting.
| Declared licence | Designs |
|---|---|
| Apache-2.0 | 22 |
| proprietary | 3 |
| GPL-3.0-only | 1 |
| CERN-OHL-S-2.0 | 1 |
| BSD-3-Clause | 1 |
| MIT | 1 |
| CERN-OHL-W-2.0 | 1 |
Some repositories carry a different licence file from the one declared at submission, or none: check a design's repository, and its page here, before reusing it.
How the designs will be packaged, and whether they passed the design-rule checks before manufacture.
The maximum packs one cell type edge to edge with no room for wiring. Real designs need the wiring. Each box gives the most of a cell that fits with any GF180MCU library, then with the libraries this run used.
Inverters per mm²
GF180MCU maximum,
with
AS 7t-3.3V
inv_2
With this run's libraries:
AS 7t-3.3V: 114k inv_2
Buffers per mm²
GF180MCU maximum,
with
AS 7t-3.3V
buff_2
With this run's libraries:
AS 7t-3.3V: 76k buff_2
Flip-flops per mm²
GF180MCU maximum,
with
AS 7t-3.3V
dfxtp_2
With this run's libraries:
AS 7t-3.3V: 17k dfxtp_2
AS extra 7t-5V: 14k dfxtp_2
Typical die
median logic cells/mm² of core across 26 digital dies (1,000 or more logic cells)
20% of the core covered by logic cells
Percentages compare with the buffer maximum for each design's own library: buffers are among the smallest and most common logic cells, so a design made only of buffers, packed edge to edge with no wiring, would reach 100%.
What each slot size held on this run, and what it would hold at its densities
| Logic cells in its digital designs1,000 or more logic cells | Logic cells at this run's density | Theoretical maximum, 7t-5V cells | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Slot | Die | Core area | Designs | Most | Median | Typical7k / mm² | Best25k / mm² | Densest40k / mm² | NAND gatesnand2_1 | Flip-flopsdffq_1 |
| 1 × 1 | 3.93 × 5.12 mm | 12.9 mm² | 21 | 316k | 87k | 89k | 316k | 512k | 1.2M | 203k |
| 1 × ½ | 3.93 × 2.53 mm | 5.0 mm² | 4 | 36k | 36k | 34k | 123k | 199k | 457k | 79k |
| ½ × 1 | 1.94 × 5.12 mm | 4.5 mm² | 4 | 35k | 35k | 31k | 109k | 177k | 406k | 70k |
| ½ × ½ | 1.94 × 2.53 mm | 1.7 mm² | 1 | 36k | 36k | 12k | 42k | 69k | 158k | 27k |
Swipe the table sideways for more columns.
Core area is each design's CORE_AREA, read from its own LibreLane config at the commit that was checked; where that could not be read, the project template's, 442 µm in from each edge of the die. Density inside the seal ring is over the whole die less its 26 µm seal ring: all the silicon a slot gives its designer, pad ring included. "Typical" and "best" multiply the core area by this run's median and best core densities, and "densest" by the densest 1 mm² any design on this run reached; SRAM and analog blocks take their area out of that. The theoretical maxima fill the core with nothing but that one cell of 7t-5V, the library most used on this run, edge to edge with no routing.
Pick the slot size your design needs on wafer.space Run 3: orders close 9 December 2026.
A digital die here is one with 1,000 or more logic cells. Solid bar: average over the core. Dark line inside it: average over all the silicon inside the seal ring, pad ring included. Outlined bar: the densest mm² outside SRAM (a dash where memory covers most of the design). The scale ends at the buffer theoretical maximum (76k cells/mm²). The numbers are core / seal ring / densest, in logic cells per mm².
| Design | Slot | Library | Logic cells | Inside core per mm² |
Inside seal ring per mm² | Densest mm² per mm² |
Core covered | Core mm² |
|---|---|---|---|---|---|---|---|---|

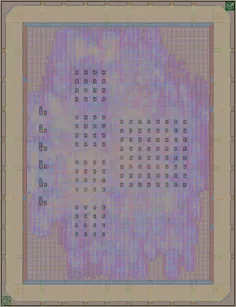

| Cloneless1 2975 | 1 × 1 | 7t-5V | 316,440 | 24,525 | 16,101 | 31,548 | 56% | 12.90* |
| TinyQV - Crowdsourced RISC-V SoC TQVA | ½ × ½ | 7t-5V | 35,711 | 20,611 | 7,633 | 22,636 | 47% | 1.73 |

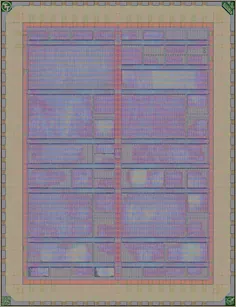

| Tiny Tapeout GF 0.2, standard TTP2 | 1 × 1 | mixed | 203,781 | 15,793 | 10,369 | 26,088 | 46% | 12.90* |

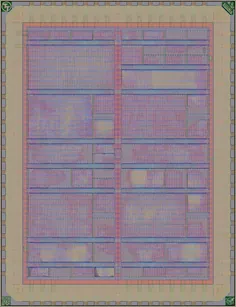

| Tiny Tapeout GF 0.2, power-gated TTPG | 1 × 1 | mixed | 203,780 | 15,793 | 10,369 | 26,088 | 46% | 12.90* |

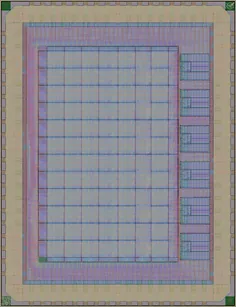

| FABulous FPGA MOLE | 1 × 1 | 7t-5V | 203,757 | 15,774 | 10,367 | 27,014 | 49% | 12.92 |

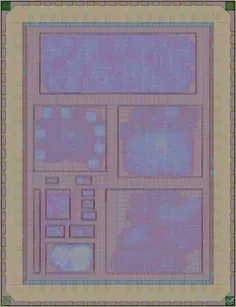

| gf180mcu-jku-projects JKU1 | 1 × 1 | 7t-5V | 174,469 | 13,506 | 8,877 | 39,690 | 29% | 12.92 |

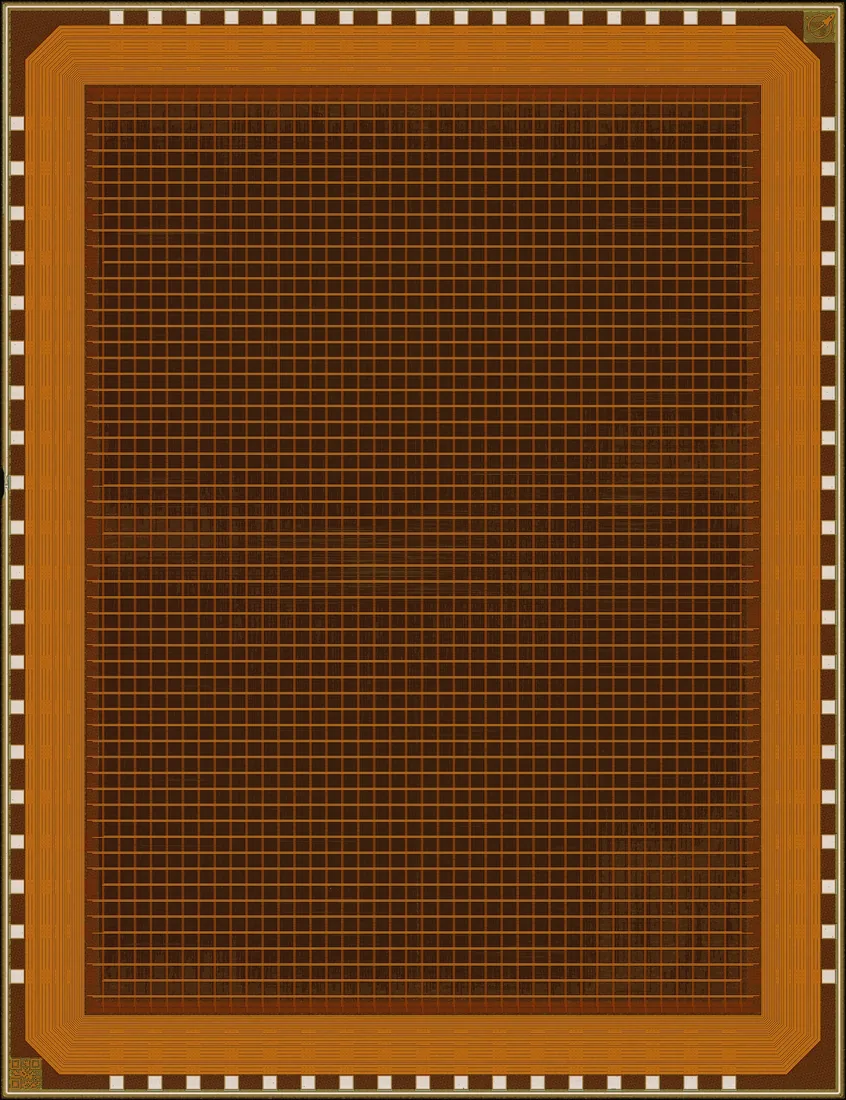

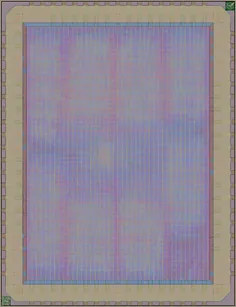

| chess-move-generator CHES | 1 × 1 | 9t-5V | 145,076 | 11,231 | 7,382 | 12,616 | 35% | 12.92 |

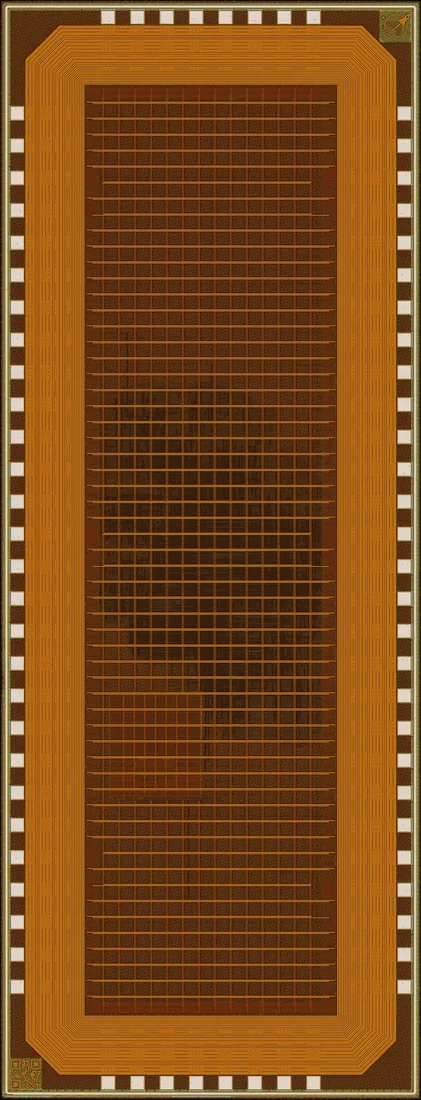

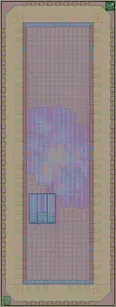

| TinyQV - Crowdsourced RISC-V SoC (0.5x1) TQVB | ½ × 1 | 7t-5V | 35,416 | 7,944 | 3,701 | 23,580 | 18% | 4.46 |

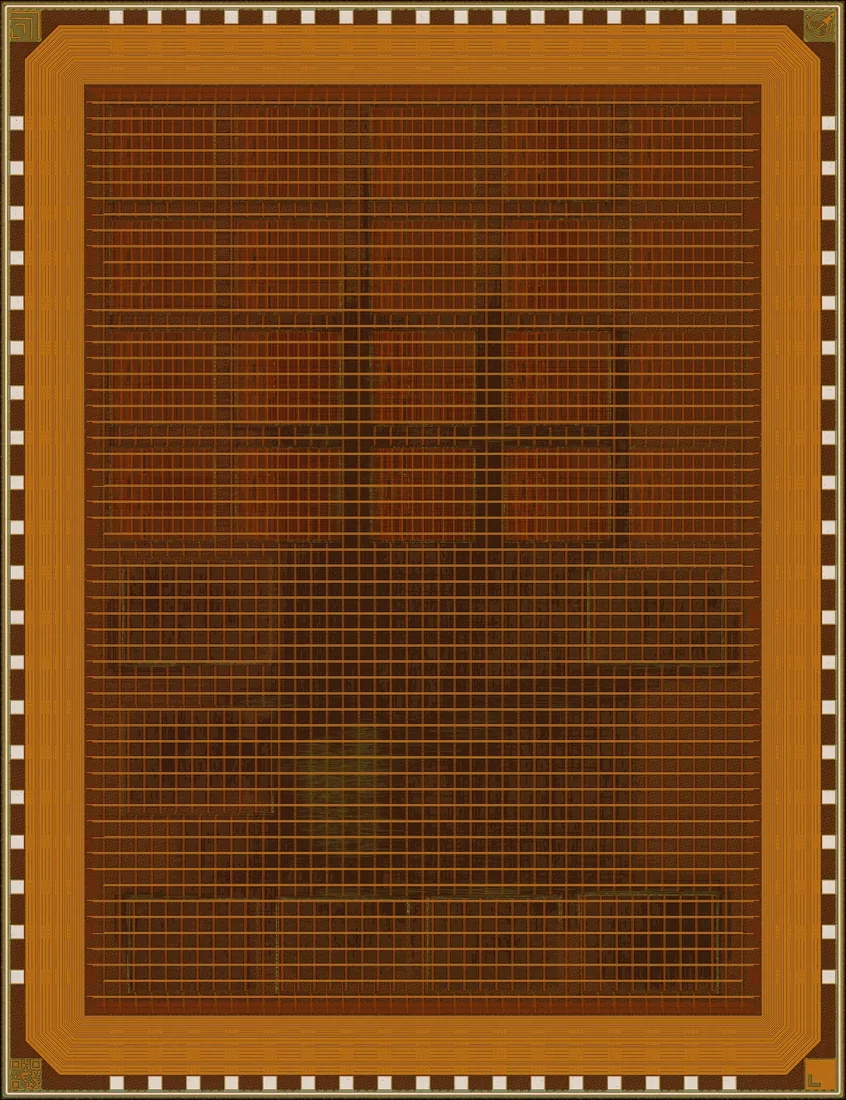

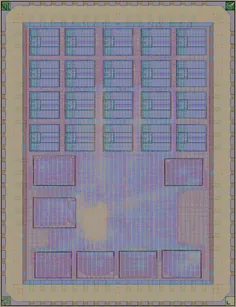

| FazyRV Hachure CAFE | 1 × 1 | 7t-5V | 100,546 | 7,784 | 5,116 | 21,486 | 26% | 12.92 |

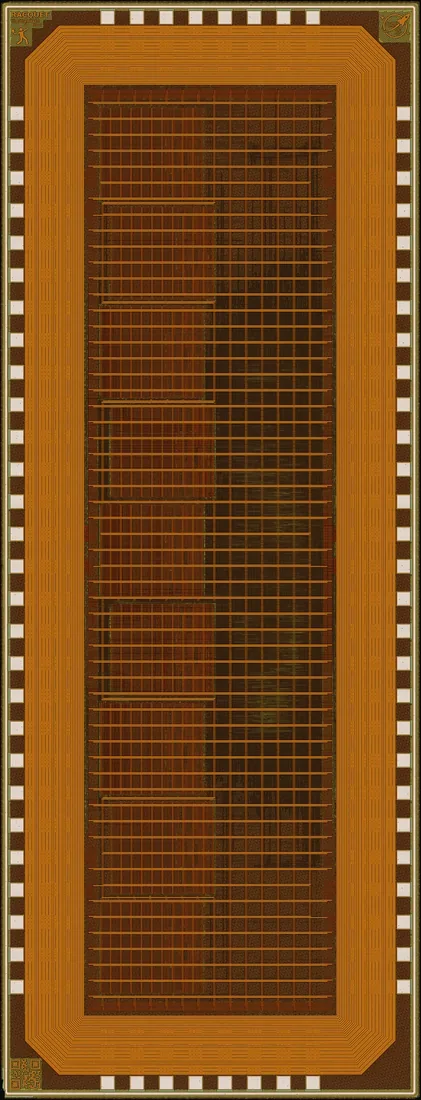

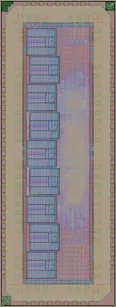

| Racquet Half r1p0 (1/2 slot) GD02 | ½ × 1 | 7t-5V | 34,564 | 7,753 | 3,612 | 11,735 | 21% | 4.46 |
| TinyQV - Crowdsourced RISC-V SoC (1x0.5) TQVC | 1 × ½ | 7t-5V | 36,116 | 7,194 | 3,758 | 16,157 | 16% | 5.02 |

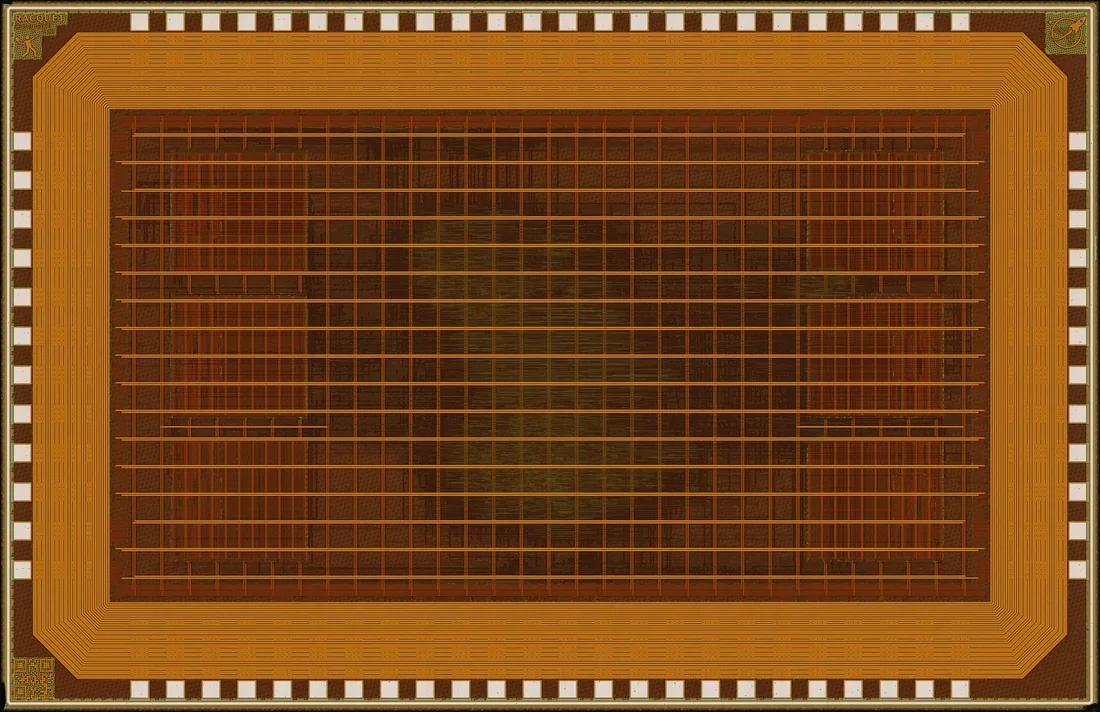

| Racquet Wide 1x0.5 GD04 | 1 × ½ | 9t-5V | 35,525 | 7,077 | 3,697 | 18,167 | 28% | 5.02 |

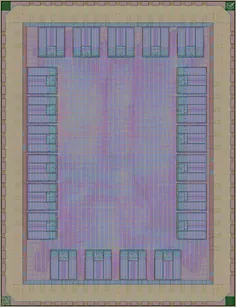

| KianV: A 32-bit RISC-V Linux SoC taped out on GF180MCU KIAN | 1 × 1 | 9t-5V | 88,941 | 6,885 | 4,525 | 12,888 | 24% | 12.92 |

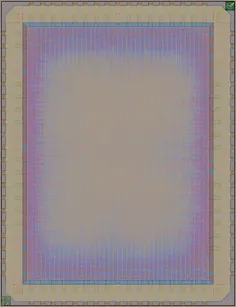

| LGN FashionMNIST - Logic Gate Network trained on FashionMNIST RZML | 1 × 1 | 7t-5V | 88,407 | 6,852 | 4,498 | 8,379 | 23% | 12.90* |

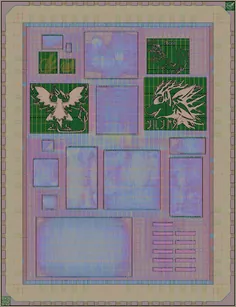

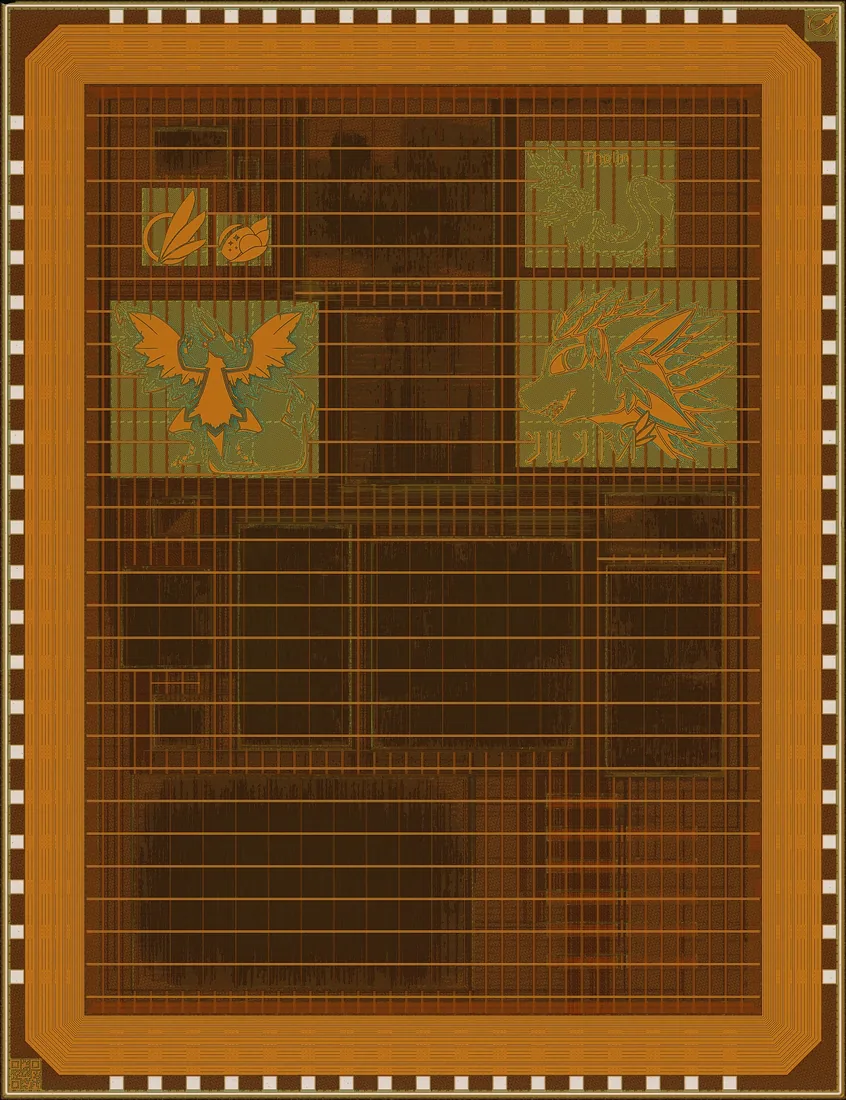

| WS-Multi AS03 | 1 × 1 | mixed | 86,629 | 6,706 | 4,408 | 21,295 | 19% | 12.92 |

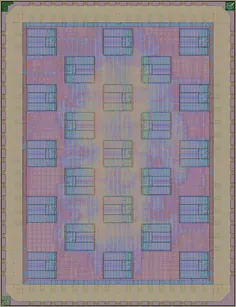

| Racquet r2p0 - 23 core SoC GD03 | 1 × 1 | 7t-5V | 78,208 | 6,054 | 3,979 | — | 17% | 12.92 |

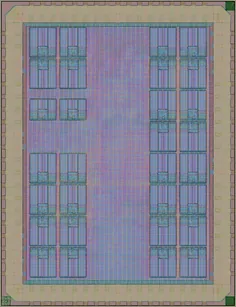

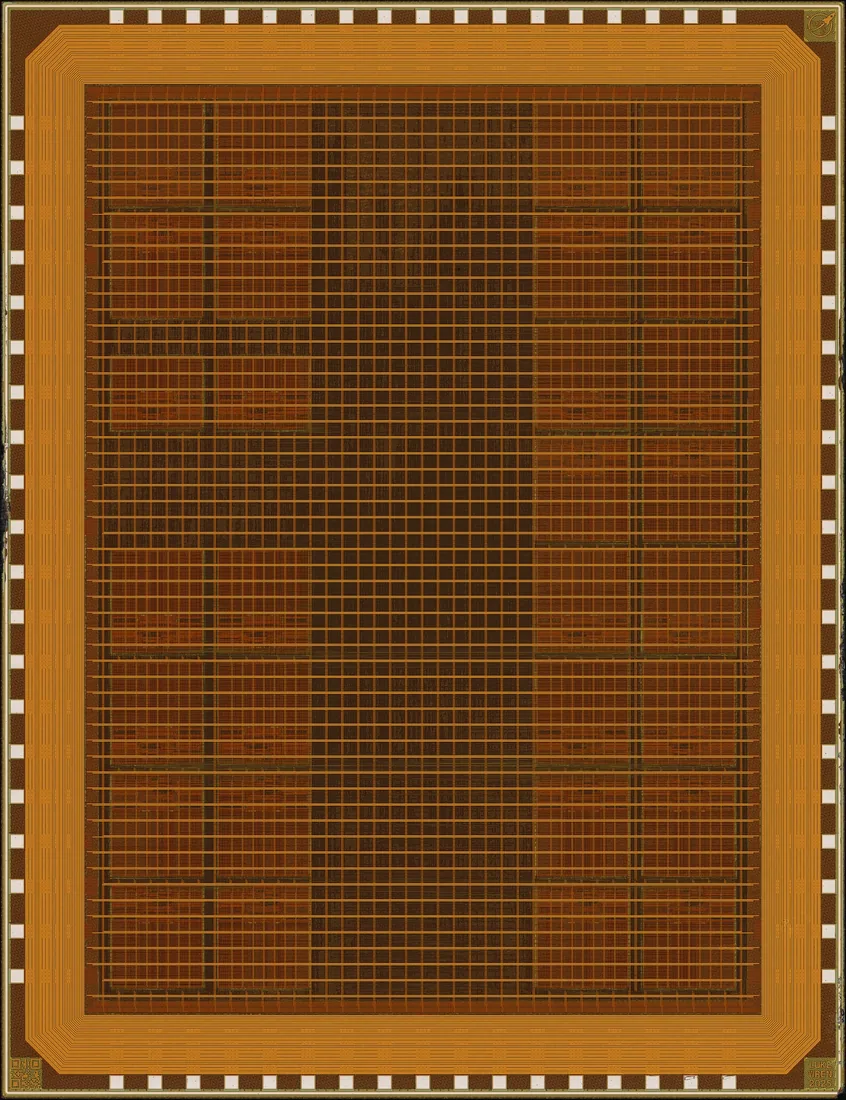

| RISCBoy-180 RBOY | 1 × 1 | 9t-5V | 69,949 | 5,415 | 3,559 | 13,571 | 23% | 12.92 |

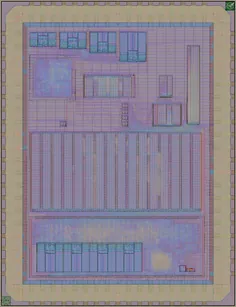

| TillitisZedulo-testchip2025 TZ01 | 1 × 1 | 7t-5V | 58,018 | 4,491 | 2,952 | 18,145 | 13% | 12.92 |

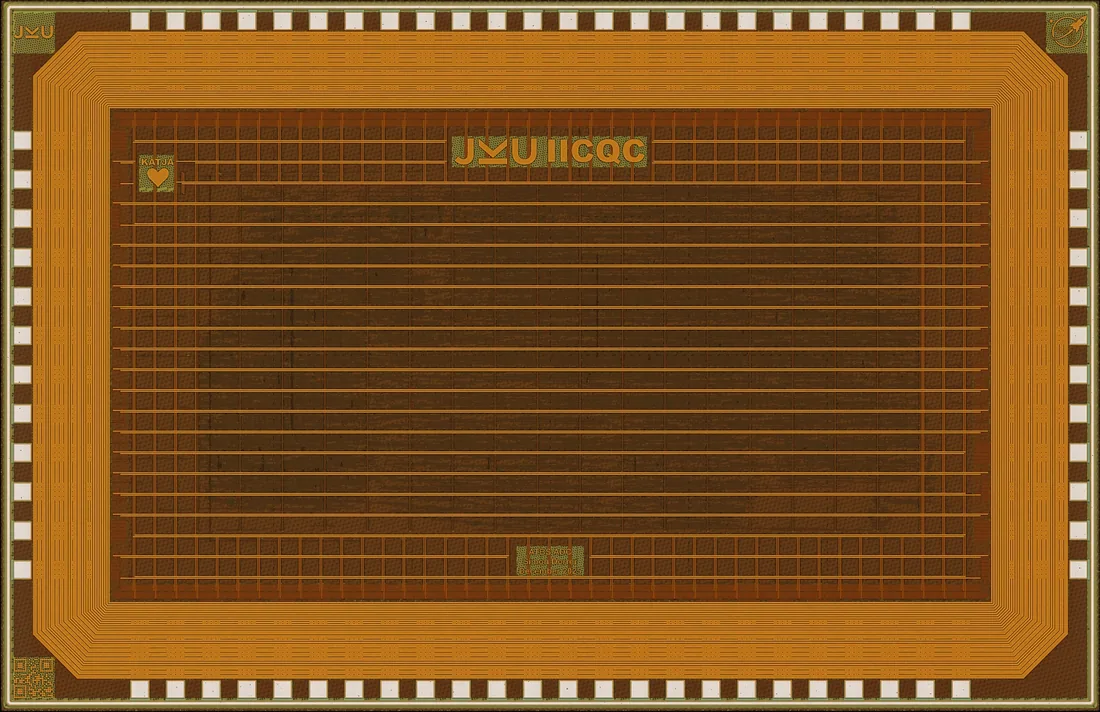

| gf180mcu-jku-atbs-adc JKU2 | 1 × ½ | 9t-5V | 22,476 | 4,477 | 2,339 | 8,798 | 19% | 5.02 |

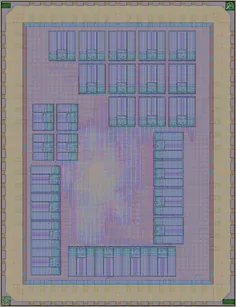

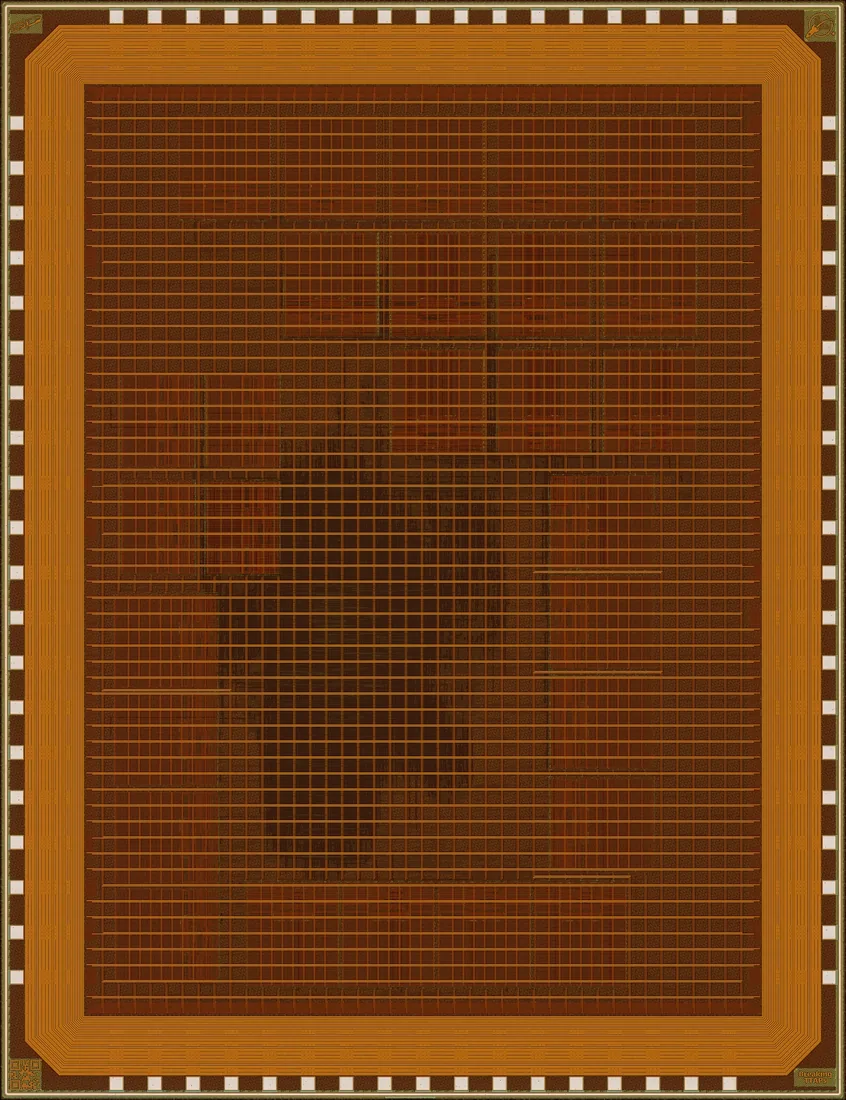

| BreakingTTAPs BTAP | 1 × 1 | 9t-5V | 43,225 | 3,346 | 2,199 | 20,600 | 9% | 12.92 |

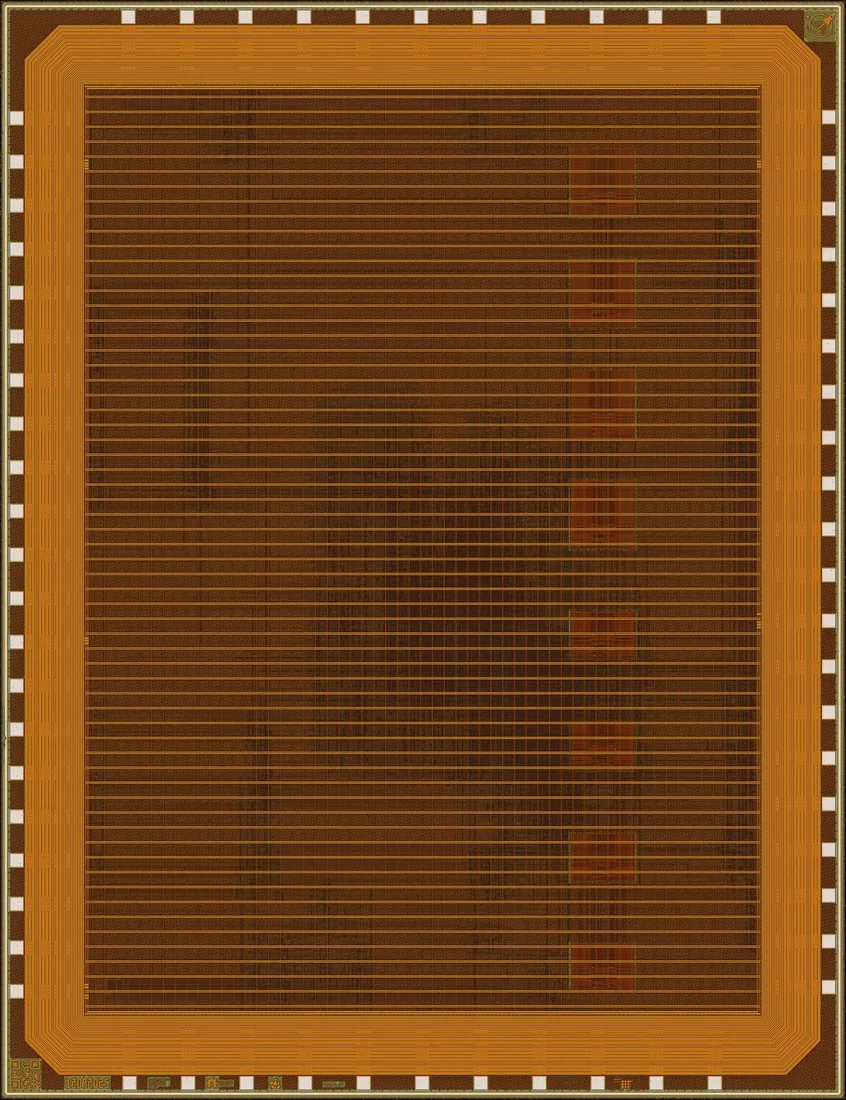

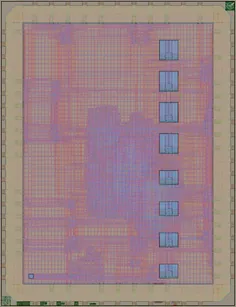

| openframe_caravel_picorv32 OCD1 | 1 × 1 | AS 7t-3.3V | 34,431 | 2,668 | 1,752 | 10,353 | 7% | 12.90* |

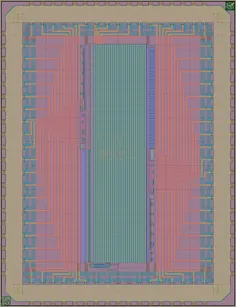

| MOSbiusV3 MOSB | 1 × 1 | 9t-5V | 17,889 | 1,386 | 910 | 4,932 | 5% | 12.90* |

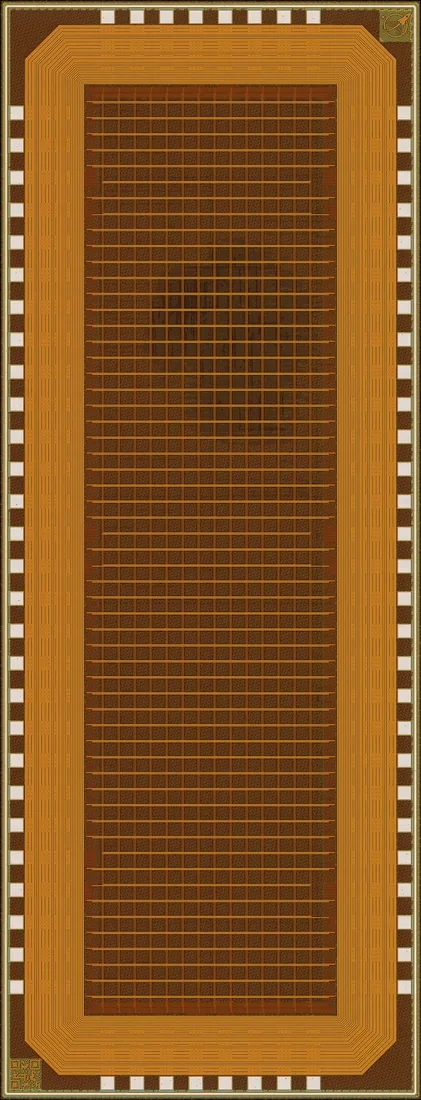

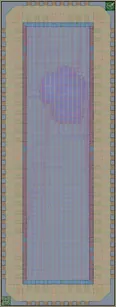

| FOSSi open-source replacement for Z80 classic 8-bit CPU (0.5 x 1 slot) HZ80 | ½ × 1 | 9t-5V | 5,143 | 1,154 | 537 | 4,951 | 4% | 4.46 |

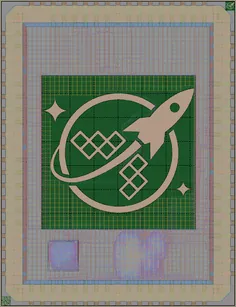

| wafer.space Logo WSLG | 1 × 1 | mixed | 14,290 | 1,106 | 727 | 11,110 | 4% | 12.92 |

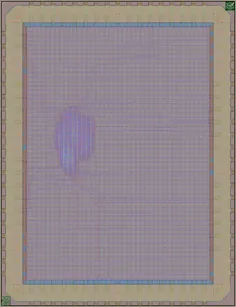

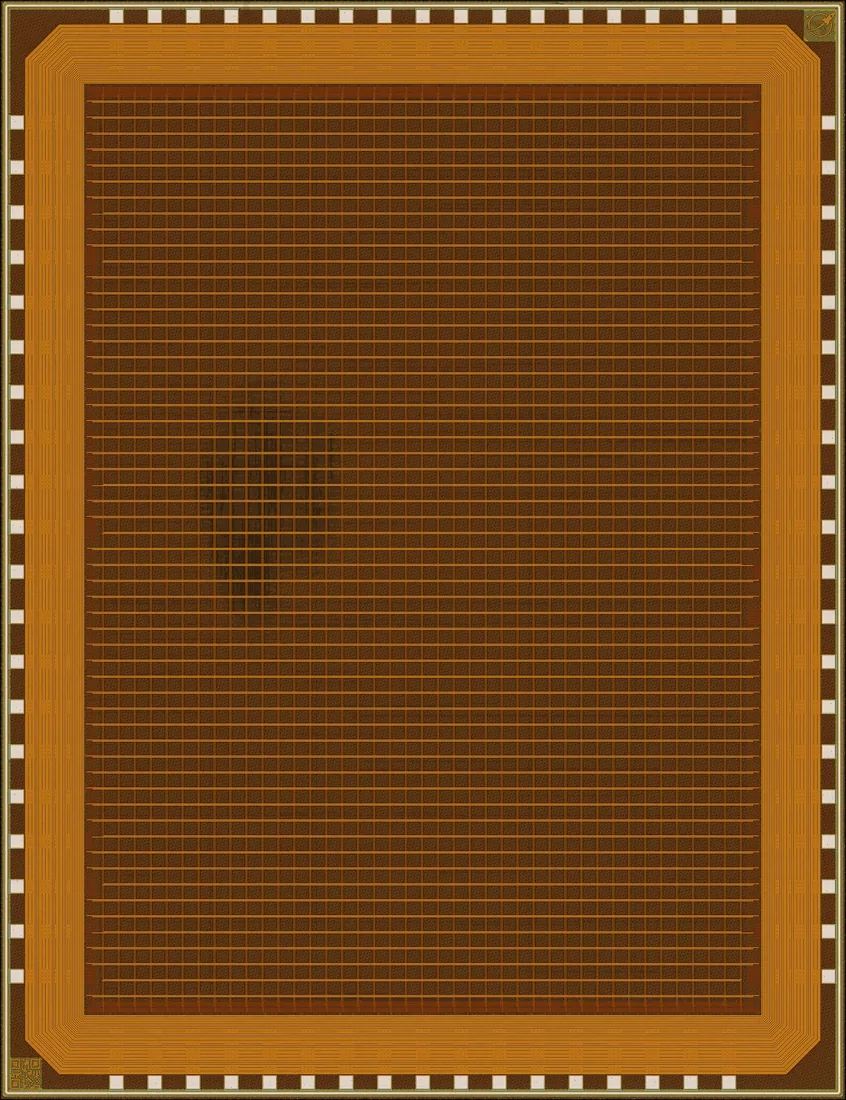

| FOSSi open-source replacement for Z80 classic 8-bit CPU RZ80 | 1 × 1 | 9t-5V | 5,209 | 403 | 265 | 4,684 | 1% | 12.92 |

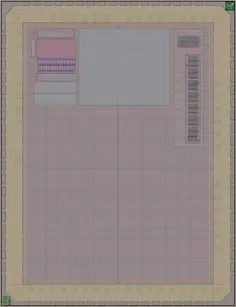

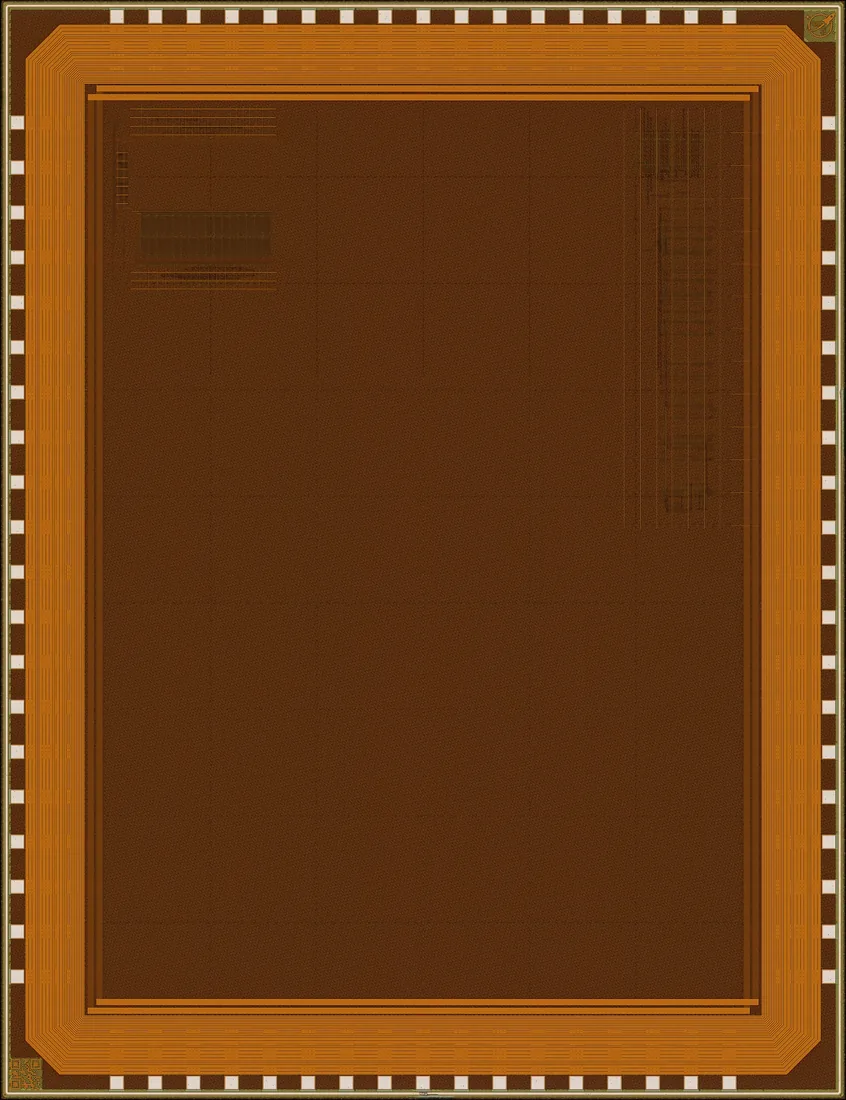

| FA25_Engn2912e_Saligane_Brown BRWN | 1 × 1 | 7t-5V | 4,379 | 339 | 223 | 2,590 | 1% | 12.90* |
* The project template's core: the design's own config could not be read.
Every design on this run: an index, then grouped by what it does. Select one for its layout, its measurements and any die photographs.
All 30 public designs by their code, with the slot each took and how much logic it packs.
Swipe the table sideways for more columns.
These designs have been made more than once: first as a Tiny Tapeout tile or on a Google shuttle, then on wafer.space, or improved and made again on a later run. Start small, then come back bigger. The ringed marker is this run.
Tiny Tapeout tile
Google shuttle
wafer.space die
this run
Each marker is one version of the design: hover over it or focus it for details, and select it to open its
page. On a phone, the table below lists every one.
Tiny Tapeout GF 0.2, standard (TTP2) and Tiny Tapeout GF 0.2, power-gated (TTPG) each hold dozens of small projects from Tiny Tapeout, the cheaper way to make a first chip. Each has pages of its own, project by project.
Tiny Tapeout chips on wafer.space Submit to the next one, by 7 December 2026

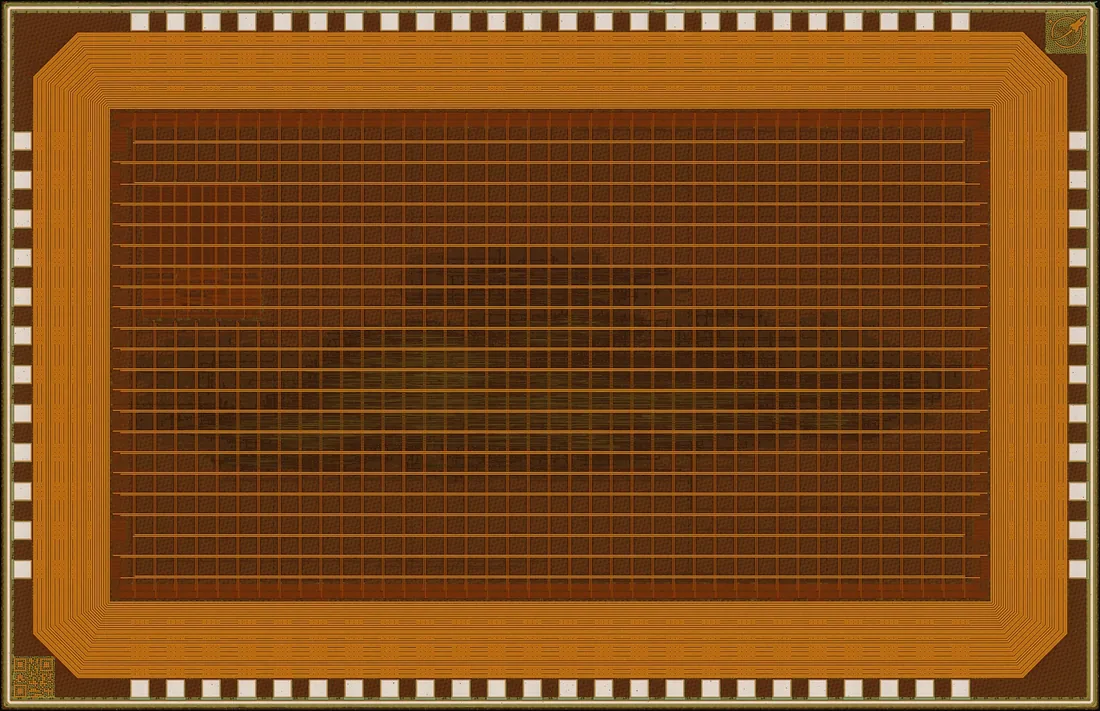

Optical micrographs of the fabricated dies © 2026 InfoSecDJ, CC BY-SA 4.0
Microscope images © 2026 InfoSecDJ, CC BY-SA 4.0. Each project page links to a zoomable viewer of its die. The full-resolution images are online too.
Everything on this page is measured from the public layout; the dates come from the published schedules.
The full written analysis is the density report. The measurements behind it:
Generated by ws-run-reports from layout/G801.oas (md5 3ae7349e205f60d9f997cf7d3a688500).
