wafer.space Run 1

AutoMOS-Chipathon-2025 full size

MOS2 · Analog and mixed-signal · 1 × 1 slot

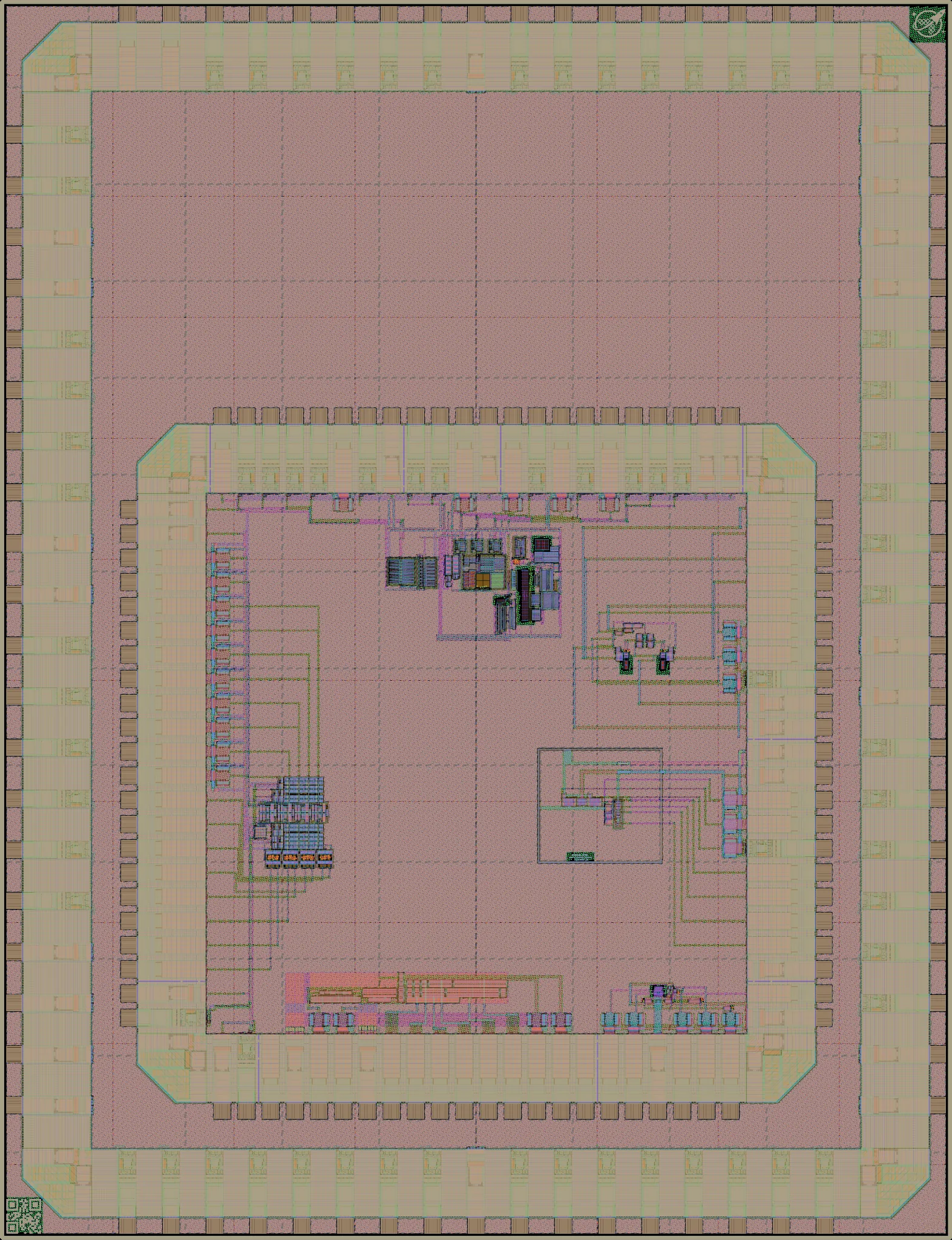

Rendered from the layout at 2.5 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings

Every figure here is measured from the public layout, the same way for every design on the run: see data and method, and how its designs used the process.

Embedded Chipathon design

Die3.93 × 5.12 mm (20.1 mm²)
Core area12.90 mm² inside the pad ring
the project template's, 442 µm in from each edge
Inside the seal ring19.65 mm² (the die less its 26 µm seal ring)
Placements1 on the reticle, in slot F2 MOS2 on the reticle
Bond pads162
Transistors80,297
Logic cells0 + 52 filler and tap cells
SRAMNo SRAM

Submission

LicenceMIT declared
Repository: MIT in LICENSE — agrees
Templatewafer-space/gf180mcu-project-template
from its README
How it was checked
Commit and PDK pin The licence and template were read from the repository at commit 85e9753659e8.
Chip-on-boardNot selected at submission
PrecheckPassed the check it was accepted on, 2026-01-03, gf180mcu-precheck 1.5.5 (from its image)
Passed latest re-run, 2026-08-02, gf180mcu-precheck 1.7.3
step results and logs

Process features

Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.

3.3 V3,440 custom transistors
5 V1,329 custom transistors
Gate oxidesThin (3.3 V) and thick (5 V/6 V) in the design itself
MIM capacitors50 (5,897 µm², between Metal4 and Metal5)
High-resistance poly resistors275 (1,810 µm²)
Unsalicided poly resistors31 (12,004 µm²)
Diodes242 (24,009 µm²)
Deep N-well13 (39,091 µm²)
Bipolar transistors32 (67 µm²)
I/O librarygf180mcu_fd_io (1490 cells), gf180mcu_ws_io (18 cells)

Where the area went

How this design's area splits between other and pad ring.

64%
36%
  • Other 12.90 mm² (64%)
  • Pad ring 7.22 mm² (36%)

Precheck

Before a design is made, the wafer.space platform checks it against the foundry's design rules. MOS2 was accepted on this check, and has been checked again since with newer rules.

All 15 steps passed, with 0 KLayout DRC errors, on 2026-01-03.

Every step, and the latest re-run
StepAccepted on
check 215, 2026-01-03, initial, gf180mcu-precheck 1.5.5 (from its image)
PDK wafer-space/gf180mcu 1.6.6, LibreLane e2f0b0e
Latest re-run
check 729, 2026-08-02, drc_update, gf180mcu-precheck 1.7.3
PDK open_pdks 1.0.604, LibreLane 5fe3db1
KLayout.ReadLayoutpassedpassed
KLayout.CheckTopLevelpassedpassed
KLayout.CheckSizepassedpassed
KLayout.GenerateIDpassedpassed
KLayout.Rendernot in this flowpassed
KLayout.Densitypassedpassed
Checker.KLayoutDensitypassedpassed
KLayout.ZeroAreaPolygonspassedpassed
Checker.KLayoutZeroAreaPolygonspassedpassed
KLayout.Antennapassedpassed
Checker.KLayoutAntennapassedpassed
Magic.DRCpassedpassed
Checker.MagicDRCpassedpassed
KLayout.DRCpassedpassed
Checker.KLayoutDRCpassedpassed
KLayout.WriteLayoutpassedpassed
KLayout DRC errors00
Magic DRC errors (advisory)00
Filessteps · log (gzip)steps · log (gzip)

The steps of the gf180mcu-precheck LibreLane flow, as run by platform.wafer.space. The design was accepted on the newest finished check before it was submitted; later re-runs check the same file with updated rules. KLayout DRC is the sign-off check. Magic DRC is advisory: its count does not stop a design. In the logs, Magic's "Error while reading cell" lines about fill cells are messages from its reader, not check failures.
