Tiny Tapeout GF 0.3Die T0P3 on wafer.space Run 2

32 projects on one chip, measured one by one and as a whole die

Buy a chip and board Put your design on the next one All its projects on tinytapeout.com

What was built

The chip as a whole: what its projects add up to.

32

Projects

on the chip

32

Open source

with a public repository

1.6M

Transistors

across the unique designs

113k

Logic cells

gates and flip-flops

256 bytes

SRAM

in foundry and custom macros

Counted inside the projects only, so these totals are smaller than the die's own figures on its run's page: the pads, Tiny Tapeout's multiplexer and controller and the fill are left out.

Get this chip, or make your own

Tiny Tapeout puts many small designs on one chip. Start with a tile, then come back with a whole die.

Get a Tiny Tapeout chip

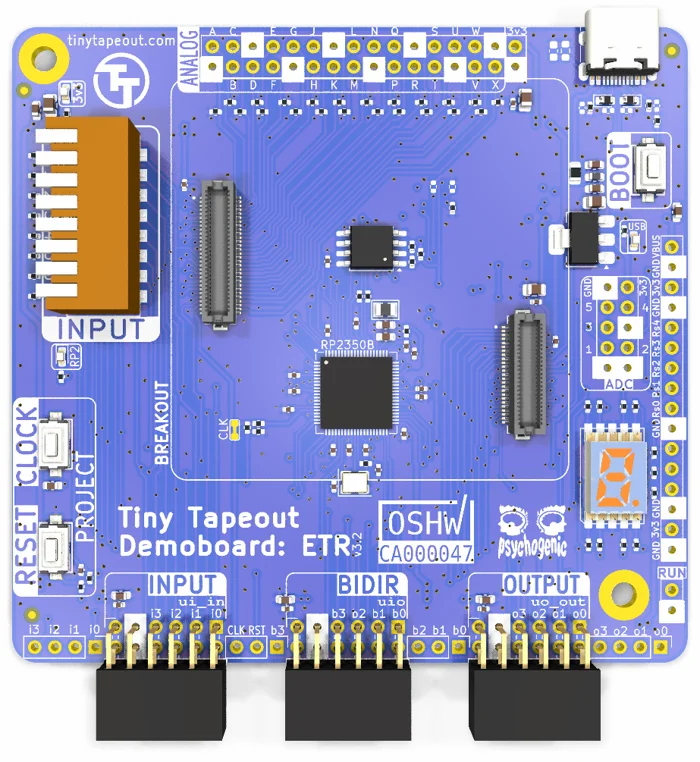

Every Tiny Tapeout chip comes on a board you can plug in, with all of its projects ready to try.

Buy a chip and board

Put your design on the next one

Tiny Tapeout GF 26c and 26d take projects until 7 December 2026, to be made on wafer.space Run 3.

Submit a project

Make a whole chip of your own

When a design outgrows a few tiles, it can have a die to itself on wafer.space Run 3: orders close 9 December 2026.

Reserve a slot

The die

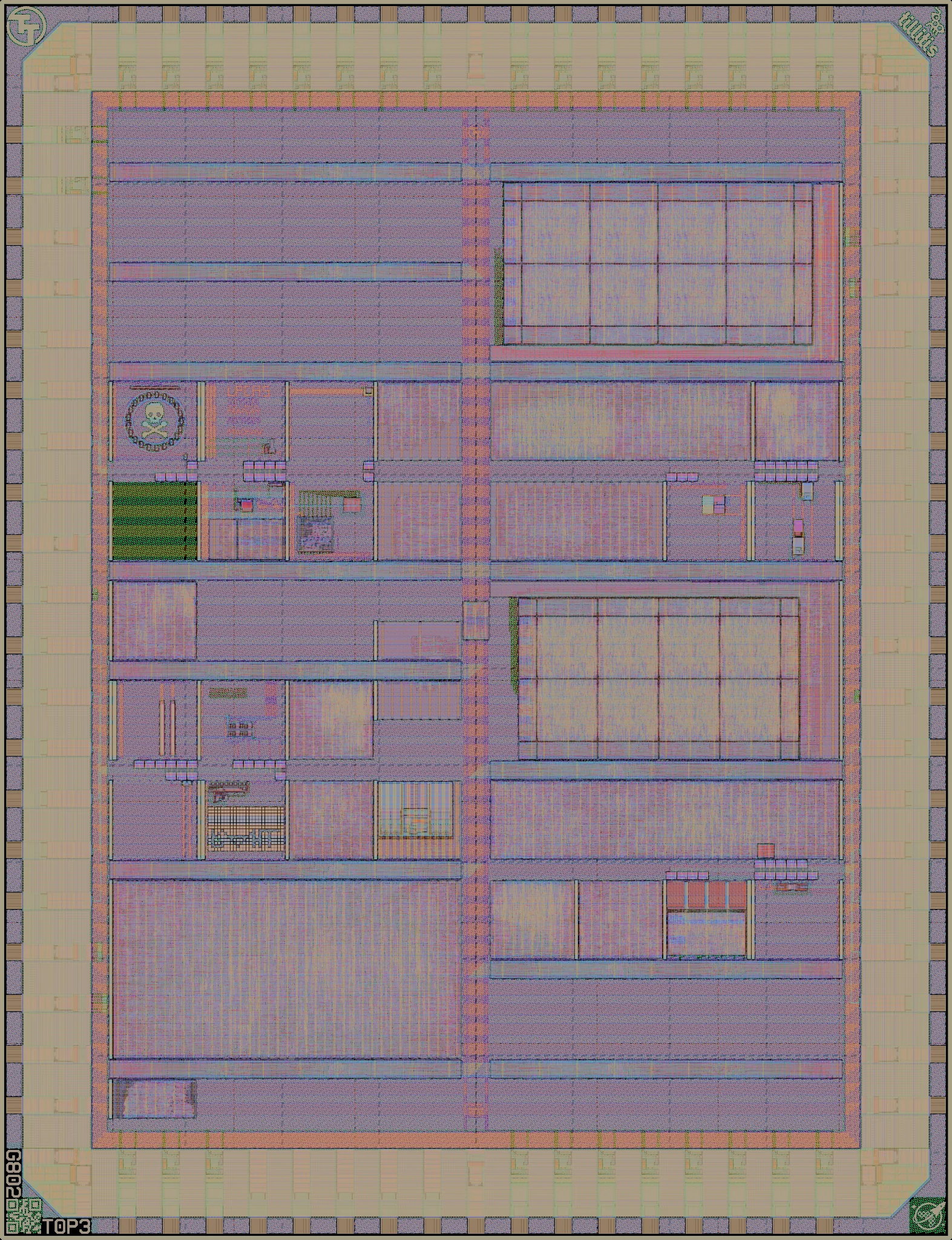

519 518 262 038 039 294 007 005 037 260 292 258 003 035 290 256 001 000 033 288 448 450 099 452 101 356 103 454 199 102 358 359

Every design rendered from the layout at the same scale and placed where it sits on the 3.9 × 5.1 mm die. Point at a project to see its name, and select it for its details.Every project is listed further down.

Project sizes

How many tiles each project took. A tile is the smallest piece of a Tiny Tapeout chip you can submit a design to.

Total	32
1 × 1 tiles	3
1 × 2 tiles	23
2 × 2 tiles	1
3 × 2 tiles	1
4 × 2 tiles	1
4 × 4 tiles	3

Layout on GitHub

Shuttle status

Two schedules meet here: Tiny Tapeout collects the projects and builds the die, then wafer.space manufactures it on wafer.space Run 2 and ships the parts.

Done so far

wafer.space 1 March 2026 Campaign opens Run 2 slots available for purchase on Crowd Supply
wafer.space 30 April 2026, 23:59 AoE Early bird deadline Last day to purchase at early bird pricing, for whole-die slots on the run (not Tiny Tapeout projects)
Tiny Tapeout 19 June 2026 Tiny Tapeout GF 0.3 submissions close Last day to submit a project to this Tiny Tapeout shuttle
wafer.space 30 June 2026, 23:59 AoE Purchase deadline Final deadline to purchase slots, for whole-die slots on the run (not Tiny Tapeout projects)
Tiny Tapeout 4 July 2026 Tiny Tapeout GF 0.3 tapeout release Tiny Tapeout publishes the die's layout (tapeout-ws2607) and sends it to wafer.space
wafer.space 14 July 2026, 23:59 AoE Submission deadline Final deadline to submit clean GDS
wafer.space 22 July 2026 Tape-out to GlobalFoundries GDS files delivered to GlobalFoundries for fabrication
wafer.space 30 July 2026 Masks released Masks approved and fabrication started
wafer.space 17 September 2026 First wafers returned An initial set of wafers back from GlobalFoundries
wafer.space 8 October 2026 First wafers diced The initial wafers cut into individual dies

Still to come

Today, 24 October 2026
wafer.space 22 October 2026 (expected) First dies sorted Dies from the initial wafers picked and sorted by project
wafer.space 22 October 2026 (expected) First bare dies shipped Initial bare dies shipped to customers
wafer.space 12 November 2026 (expected) First packaged parts shipped Initial chip-on-board packaged parts shipped
wafer.space 10 December 2026 (expected) Main wafer lot returned The first full lot of Run 2 wafers back from GlobalFoundries
wafer.space 31 December 2026 (expected) Main lot bare dies shipped Bare dies from the main lot shipped to customers
wafer.space 15 January 2027 (expected) Last wafer lot returned The rest of the Run 2 wafers back from GlobalFoundries
wafer.space 21 January 2027 (expected) Main lot packaged parts shipped Chip-on-board packaged parts from the main lot shipped
wafer.space 5 February 2027 (expected) Last lot bare dies shipped Bare dies from the last lot shipped to customers
wafer.space 26 February 2027 (expected) Last lot packaged parts shipped Chip-on-board packaged parts from the last lot shipped

Missed this one? Tiny Tapeout GF 26c and 26d take projects until 7 December 2026: submit a project.

From the wafer.space run schedule and the Tiny Tapeout GF 0.3 repository.

How people used their silicon

Where the area of 32 projects (7 mm² of silicon) actually went

46%

26%

27%

Logic cells 46% — gates and flip-flops doing the design's actual work
SRAM 1% — memory macros
Filler and tap cells 26% — inserted by the tools to keep rows continuous and wells tied
Other 27% — routing channels, analog and custom layout, power grid and empty space

What people built

The kinds of design on this chip.

Analog and mixed-signal 11 Other digital 6 FPGA 3 Security 2 Test structures 2 Games 2 RISC-V and CPUs 2 Communications 2 Art and logos 1 Retro computing 1

Standard cell libraries

The ready-made gate libraries the designs were built from: how many tracks tall each cell is, and the voltage it runs at.

Standard cell library	Logic cells	Share
7t-5V gf180mcu_fd_sc_mcu7t5v0	88k	78%
AS 7t-3.3V gf180mcu_as_sc_mcu7t3v3	25k	22%

Area budget of every design

Each bar is one project, split the same way as above. Sorted by how much of the project is logic.

450 USB CDC (Serial) Device 038 Hardware Entropy Explorer: UART/SPI TRNG and PUF 358 Hardware Entropy Explorer: UART/SPI TRNG and PUF (Analog) 199 TinyQV RISC-V SoC 519 Simon Says memory game 003 VGA Nyan Cat 359 Tiny FABulous FPGA (3.3V version) 102 Tiny FABulous FPGA 258 Abad2048 518 KianV uLinux SoC 448 wafer.space Logo VGA Screensaver 356 2048 sliding tile puzzle game (VGA)

Show all 32 projects

099 Until heat death do us part 033 Simple Signal Generator 452 PolyWave 288 Philippine flag waving 037 algofoogle analog stuff 000 Chip ROM 035 GF R2R DAC 001 Tiny Tapeout Factory Test 256 256x8 SRAM 294 Oscillating Bones 005 74HCT00 Quad 2-Input NAND (3.3 V) 007 TT GF180mcuD Analog Factory Test 039 MoM capacitor 101 TT GF180mcuD Testbuffer 103 tnt's recreation of a 555 on GF180mcu 260 GF BGR 262 Quadrature VCO 290 Analog 4 bit Current DAC 292 3.3V Folded Cascode OTA 454 MCML VCO

Which parts of the process were used

Transistor voltages and optional devices across the 32 designs

Transistor voltages

3.3 V 11

5 V 23

6 V 1

A design counts for a voltage when its standard cells, SRAM or its own transistors use it. 5 V and 6 V transistors share the thick gate oxide; a marker layer in the layout tells them apart.

Optional devices drawn by designers

Device	Designs	Which
High-resistance poly resistors	8	8 projects GF R2R DAC, algofoogle analog stuff, TT GF180mcuD Testbuffer, tnt's recreation of a 555 on GF180mcu, TinyQV RISC-V SoC, GF BGR, PolyWave, MCML VCO
MOS capacitors	1	tnt's recreation of a 555 on GF180mcu
Unsalicided poly resistors	1	tnt's recreation of a 555 on GF180mcu
Deep N-well	1	GF BGR
Bipolar transistors	1	GF BGR

Not drawn by any design: Native transistors, 10 V LDMOS, MIM capacitors, Salicided poly resistors, Diffusion resistors, N-well resistors, Metal resistors, Diodes, Well diodes, Schottky diodes, Zener diodes, eFuses, One-time programmable memory, Inductors.

Only devices outside standard cells, SRAM macros and I/O pads count, since every die has those. A single test structure counts the same as a large block.

Gate oxides

Transistors	Designs	Which
3.3 V and 5 V/6 V	4	TT GF180mcuD Analog Factory Test, algofoogle analog stuff, 256x8 SRAM, Oscillating Bones
3.3 V only	7	7 projects 74HCT00 Quad 2-Input NAND (3.3 V), GF BGR, Quadrature VCO, Analog 4 bit Current DAC, 3.3V Folded Cascode OTA, Tiny FABulous FPGA (3.3V version), MCML VCO
5 V/6 V only	20	20 projects Chip ROM, Tiny Tapeout Factory Test, VGA Nyan Cat, Simple Signal Generator, GF R2R DAC, Hardware Entropy Explorer: UART/SPI TRNG and PUF, Until heat death do us part, TT GF180mcuD Testbuffer, Tiny FABulous FPGA, tnt's recreation of a 555 on GF180mcu, TinyQV RISC-V SoC, Abad2048, Philippine flag waving, 2048 sliding tile puzzle game (VGA), Hardware Entropy Explorer: UART/SPI TRNG and PUF (Analog), wafer.space Logo VGA Screensaver, USB CDC (Serial) Device, PolyWave, KianV uLinux SoC, Simon Says memory game

3.3 V transistors have the thin gate oxide; 5 V and 6 V ones share the thick one. No transistors of their own: MoM capacitor.

What fits on 1 mm² of GF180MCU silicon?

Theoretical maximum against what designers achieved

The maximum packs one cell type edge to edge with no room for wiring. Real designs need the wiring. Each box gives the most of a cell that fits with any GF180MCU library, then with the libraries this chip used.

~114k

Inverters per mm²

GF180MCU maximum,
with AS 7t-3.3V inv_2

With this chip's libraries:

7t-5V: 114k inv_1

AS 7t-3.3V: 114k inv_2

~91k

NAND gates per mm²

GF180MCU maximum,
with 7t-5V nand2_1

With this chip's libraries:

7t-5V: 91k nand2_1

AS 7t-3.3V: 65k nand2_2

~76k

Buffers per mm²

GF180MCU maximum,
with AS 7t-3.3V buff_2

With this chip's libraries:

7t-5V: 76k buf_1

AS 7t-3.3V: 76k buff_2

~17k

Flip-flops per mm²

GF180MCU maximum,
with AS 7t-3.3V dfxtp_2

With this chip's libraries:

7t-5V: 16k dffq_1

AS 7t-3.3V: 17k dfxtp_2

28k

Best core average

logic cells/mm² of core — 37% of the buffer maximum

Hardware Entropy Explorer: UART/SPI TRNG and PUF

44k

Densest 0.1 mm square

logic cells per mm² — 58% of the buffer maximum

PolyWave

20k

Typical project

median logic cells/mm² of core across 16 digital projects (1,000 or more logic cells)

58% of the core covered by logic cells

Percentages compare with the buffer maximum for each design's own library: buffers are among the smallest and most common logic cells, so a design made only of buffers, packed edge to edge with no wiring, would reach 100%.

Sizing your own design

What each tile size held on this chip, and what it would hold at its densities

				Logic cells in its digital projects1,000 or more logic cells		Logic cells at this chip's density		Theoretical maximum, 7t-5V cells
Tiles	Size	Core area	Projects	Most	Median	Typical20k / mm²	Best28k / mm²	NAND gatesnand2_1	Flip-flopsdffq_1
1 × 1	0.35 × 0.16 mm	0.06 mm²	3	1.3k	1.3k	1.1k	1.6k	5.1k	880
1 × 2	0.35 × 0.33 mm	0.12 mm²	23	3.3k	2.5k	2.3k	3.3k	10.5k	1.8k
2 × 2	0.71 × 0.33 mm	0.23 mm²	1	4.0k	4.0k	4.7k	6.7k	21.3k	3.7k
3 × 2	1.08 × 0.33 mm	0.36 mm²	1	6.7k	6.7k	7.2k	10.1k	32.5k	5.6k
4 × 2	1.44 × 0.33 mm	0.48 mm²	1	12.5k	12.5k	9.6k	13.5k	43.3k	7.5k
4 × 4	1.44 × 0.74 mm	1.07 mm²	3	25.2k	20.3k	21.6k	30.3k	97.1k	16.7k

Swipe the table sideways for more columns.

Core area is the whole project. "Typical" and "best" multiply the core area by this chip's median and best core densities; SRAM and analog blocks take their area out of that. The theoretical maxima fill the core with nothing but that one cell of 7t-5V, the library most used on this chip, edge to edge with no routing.

Pick the tile size your design needs when you submit it to the next Tiny Tapeout chip, by 7 December 2026.

Logic density of every digital design

A digital project here is one with 1,000 or more logic cells. Solid bar: average over the core. Outlined bar: the densest 0.1 mm square outside SRAM, per mm² (a dash where memory covers most of the design). The scale ends at the buffer theoretical maximum (76k cells/mm²). The numbers are core / densest, in logic cells per mm².

038 Hardware Entropy Explorer: UART/SPI TRNG and PUF 28k / 40k 450 USB CDC (Serial) Device 27k / 34k 358 Hardware Entropy Explorer: UART/SPI TRNG and PUF (Analog) 26k / 41k 199 TinyQV RISC-V SoC 26k / 35k 359 Tiny FABulous FPGA (3.3V version) 24k / 37k 519 Simon Says memory game 23k / 37k 003 VGA Nyan Cat 23k / 35k 258 Abad2048 21k / 30k 448 wafer.space Logo VGA Screensaver 19k / 27k 518 KianV uLinux SoC 19k / 28k 356 2048 sliding tile puzzle game (VGA) 19k / 30k 452 PolyWave 18k / 44k

Show all 16 digital projects

102 Tiny FABulous FPGA 18k / 32k 288 Philippine flag waving 18k / 31k 099 Until heat death do us part 17k / 28k 033 Simple Signal Generator 15k / 27k

Every digital project's densities as a table

Project	Tiles	Library	Logic cells	Inside core per mm²	Densest 0.1 mm square per mm²	Core covered	Core mm²
Hardware Entropy Explorer: UART/SPI TRNG and PUF 038	1 × 2	7t-5V	3,281	28,407	39,500	79%	0.12*
USB CDC (Serial) Device 450	1 × 2	7t-5V	3,155	27,316	33,500	79%	0.12*
Hardware Entropy Explorer: UART/SPI TRNG and PUF (Analog) 358	1 × 2	7t-5V	3,048	26,390	41,200	75%	0.12*
TinyQV RISC-V SoC 199	4 × 2	7t-5V	12,513	26,332	34,600	70%	0.48*
Tiny FABulous FPGA (3.3V version) 359	4 × 4	AS 7t-3.3V	25,184	23,634	37,300	60%	1.07*
Simon Says memory game 519	1 × 1	7t-5V	1,301	23,232	37,200	64%	0.06*
VGA Nyan Cat 003	1 × 2	7t-5V	2,662	23,048	34,700	63%	0.12*
Abad2048 258	1 × 2	7t-5V	2,452	21,229	30,300	58%	0.12*
wafer.space Logo VGA Screensaver 448	1 × 2	7t-5V	2,228	19,290	27,300	53%	0.12*
KianV uLinux SoC 518	4 × 4	7t-5V	20,266	19,018	28,000	58%	1.07*
2048 sliding tile puzzle game (VGA) 356	3 × 2	7t-5V	6,736	18,900	30,000	53%	0.36*
PolyWave 452	1 × 2	7t-5V	1,985	18,228	43,900	47%	0.11*
Tiny FABulous FPGA 102	4 × 4	7t-5V	19,232	18,048	32,000	58%	1.07*
Philippine flag waving 288	1 × 2	7t-5V	2,028	17,558	31,400	43%	0.12*
Until heat death do us part 099	2 × 2	7t-5V	3,961	16,906	27,700	51%	0.23*
Simple Signal Generator 033	1 × 2	7t-5V	1,704	14,753	26,900	47%	0.12*

The projects

Every project on this chip: an index, then grouped by what it does. Select one for its layout, its measurements and any die photographs.

Project index

All 32 projects by their address on the chip's multiplexer, with how many tiles each took and how much logic it packs.

Address	Project	Author	Tiles	What it is	Logic cells	Cells per mm²
000	Chip ROM	Uri Shaked	1 × 1	Other digital	234	4k
001	Tiny Tapeout Factory Test	Tiny Tapeout	1 × 1	Test structures	108	2k
003	VGA Nyan Cat	Andy Sloane · repository @urish	1 × 2	Retro computing	2,662	23k
005	74HCT00 Quad 2-Input NAND (3.3 V)	Vipul Sharma · repository @engrvip123	1 × 2	Analog and mixed-signal	0
007	TT GF180mcuD Analog Factory Test	Sylvain Munaut · repository @smunaut	1 × 2	Test structures	0
033	Simple Signal Generator	Matt Venn · repository @mattvenn	1 × 2	Other digital	1,704	15k
035	GF R2R DAC	Matt Venn · repository @mattvenn	1 × 2	Analog and mixed-signal	284	2k
037	algofoogle analog stuff	algofoogle (Anton Maurovic) · repository @algofoogle	1 × 2	Analog and mixed-signal	695	6k
038	Hardware Entropy Explorer: UART/SPI TRNG and PUF	gojimmypi · repository @gojimmypi	1 × 2	Security	3,281	28k
039	MoM capacitor	htfab · repository @htfab	1 × 2	Analog and mixed-signal	0

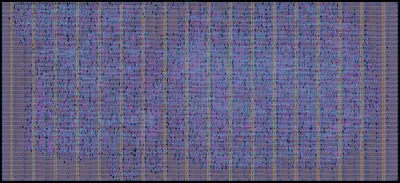

099	Until heat death do us part	Julia Desmazes · repository @Essenceia	2 × 2	Communications	3,961	17k
101	TT GF180mcuD Testbuffer	Christoph Weiser · repository @christoph-weiser	1 × 2	Analog and mixed-signal	0

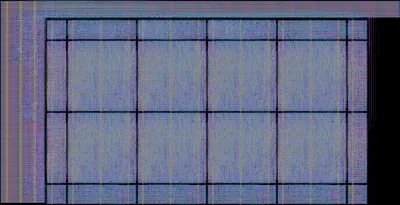

102	Tiny FABulous FPGA	Leo Moser · repository @mole99	4 × 4	FPGA	19,232	18k
103	tnt's recreation of a 555 on GF180mcu	Sylvain Munaut · repository @smunaut	1 × 2	Analog and mixed-signal	0
199	TinyQV RISC-V SoC	Michael Bell · repository @MichaelBell	4 × 2	RISC-V and CPUs	12,513	26k
256	256x8 SRAM	Julia Desmazes · repository @Essenceia	1 × 2	Other digital	96	1k
258	Abad2048	Alexander Co Abad · repository @alexandercoabad	1 × 2	FPGA	2,452	21k
260	GF BGR	Rahul Bhagwat · repository @bhagwat-rahul	1 × 2	Analog and mixed-signal	0
262	Quadrature VCO	Sylvain Munaut · repository @smunaut	1 × 2	Analog and mixed-signal	0
288	Philippine flag waving	Alexander Co Abad · repository @alexandercoabad	1 × 2	Other digital	2,028	18k
290	Analog 4 bit Current DAC	Kiterai · repository @Kiterai	1 × 2	Analog and mixed-signal	0
292	3.3V Folded Cascode OTA	Pranay Arvind Patil and Nithin Purushothama · repository @chennakeshavadasa	1 × 2	Analog and mixed-signal	0
294	Oscillating Bones	Uri Shaked · repository @urish	1 × 2	Other digital	16	<1k

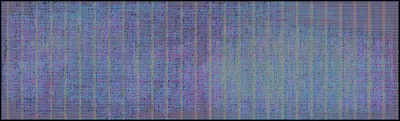

356	2048 sliding tile puzzle game (VGA)	Uri Shaked · repository @urish	3 × 2	Games	6,736	19k
358	Hardware Entropy Explorer: UART/SPI TRNG and PUF (Analog)	gojimmypi · repository @gojimmypi	1 × 2	Security	3,048	26k

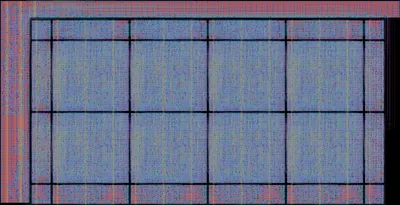

359	Tiny FABulous FPGA (3.3V version)	Leo Moser · repository @mole99	4 × 4	FPGA	25,184	24k
448	wafer.space Logo VGA Screensaver	Uri Shaked	1 × 2	Art and logos	2,228	19k
450	USB CDC (Serial) Device	Uri Shaked · repository @urish	1 × 2	Communications	3,155	27k
452	PolyWave	Riccardo Pellegrini · repository @ODGrip	1 × 2	Other digital	1,985	18k
454	MCML VCO	Namibj · repository @namibj	1 × 2	Analog and mixed-signal	0

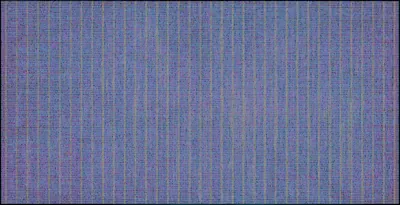

518	KianV uLinux SoC	Hirosh Dabui	4 × 4	RISC-V and CPUs	20,266	19k
519	Simon Says memory game	Uri Shaked · repository @urish	1 × 1	Games	1,301	23k

Show all 32 projectsShow the first 16 only

Swipe the table sideways for more columns.

Designs that grew

Some designs on this chip have been made many times, on earlier and later Tiny Tapeout chips, and several now have a whole die of their own on a wafer.space run. The ringed marker is this chip.

FABulous FPGA 102, 359

TinyQV RISC-V SoC 199

KianV RISC-V Linux SoC 518 KianV uLinux SoC

Expresso Ethernet switch 099 Until heat death do us part

Tiny Tapeout tile Google shuttle wafer.space die this chip
Each marker is one version of the design: hover over it or focus it for details, and select it to open its page. On a phone, the table below lists every one.

As a table

Design	Made on	When	Version	Size
FABulous FPGA	Google GFMPW-0	Dec 2022	56C6 One-hot FABulous FPGA	Caravel chip
	wafer.space Run 1	Dec 2025	MOLE FABulous FPGA	1 × 1 slot
	Tiny Tapeout IHP 26a	Mar 2026	Tiny FABulous FPGA	8 × 4 tiles
	Tiny Tapeout SKY 26a	May 2026	Tiny FABulous FPGA	8 × 4 tiles
	Tiny Tapeout SKY 26b	May 2026	Tiny FABulous FPGA	8 × 4 tiles
	Tiny Tapeout GF 0.3	Jun 2026	Tiny FABulous FPGA; Tiny FABulous FPGA (3.3V version)	4 × 4 tiles
	wafer.space Run 2	Jul 2026	MOLE FABulous FPGA	1 × 1 slot
	Tiny Tapeout SKY 26c	Sep 2026	Tiny FABulous FPGA	8 × 4 tiles
	Tiny Tapeout IHP 26b	Sep 2026	Tiny FABulous FPGA	6 × 4 tiles
TinyQV RISC-V SoC	Tiny Tapeout 6	Apr 2024	TinyQV RISC-V SoC	2 × 2 tiles
	Tiny Tapeout IHP 0.2	Nov 2024	TinyQV RISC-V SoC	2 × 2 tiles
	Tiny Tapeout IHP 25a	Mar 2025	TinyQV RISC-V SoC	3 × 2 tiles
	Tiny Tapeout IHP 25b	Sep 2025	TinyQV - Crowdsourced RISC-V SoC	5 × 4 tiles
	Tiny Tapeout SKY 25a	Sep 2025	TinyQV 'Asteroids' - Crowdsourced RISC-V SoC; TinyQV 'Berzerk' - Crowdsourced RISC-V SoC	8 × 4 tiles, 4 × 4 tiles
	Tiny Tapeout SKY 25b	Nov 2025	TinyQV RISC-V SoC	3 × 2 tiles
	Tiny Tapeout GF 0.1	Nov 2025	TinyQV RISC-V SoC	in a shared block
	Tiny Tapeout GF 0.2	Nov 2025	TinyQV RISC-V SoC	3 × 4 tiles
	wafer.space Run 1	Dec 2025	TQVA TinyQV - Crowdsourced RISC-V SoC; TQVB TinyQV - Crowdsourced RISC-V SoC (0.5x1); TQVC TinyQV - Crowdsourced RISC-V SoC (1x0.5)	TQVA ½ × ½ slot, TQVB ½ × 1 slot, TQVC 1 × ½ slot
	Tiny Tapeout GF 0.3	Jun 2026	TinyQV RISC-V SoC	4 × 2 tiles
	wafer.space Run 2	Jul 2026	TQVA TinyQV - Crowdsourced RISC-V SoC; TQVC TinyQV - Crowdsourced RISC-V SoC (1x0.5); TQVD TinyQV - RISC-V SoC with HDMI output; TQVE TinyQV - RISC-V SoC with experimental pad setup	TQVA ½ × ½ slot, TQVC 1 × ½ slot, TQVD ½ × ½ slot, TQVE ½ × ½ slot
KianV RISC-V Linux SoC	Tiny Tapeout 5	Nov 2023	KianV uLinux SoC	8 × 2 tiles
	Tiny Tapeout 6	Apr 2024	KianV uLinux SoC	8 × 2 tiles
	Tiny Tapeout 7	Jun 2024	KianV RISC-V RV32E Baremetal SoC	3 × 2 tiles
	Tiny Tapeout IHP 0.2	Nov 2024	KianV RISC-V RV32E Baremetal SoC	4 × 2 tiles
	Tiny Tapeout GF 0.1	Nov 2025	KianV uLinux SoC	in a shared block
	Tiny Tapeout GF 0.2	Nov 2025	KianV uLinux SoC	4 × 4 tiles
	wafer.space Run 1	Dec 2025	KIAN KianV: A 32-bit RISC-V Linux SoC taped out on GF180MCU	1 × 1 slot
	Tiny Tapeout IHP 26a	Mar 2026	KianV SV32 TT Linux SoC	8 × 4 tiles
	Tiny Tapeout GF 0.3	Jun 2026	KianV uLinux SoC	4 × 4 tiles
	wafer.space Run 2	Jul 2026	KIAN KianV: A 32-bit RISC-V Linux SoC taped out on GF180MCU Run 2	1 × 1 slot
Expresso Ethernet switch	Tiny Tapeout GF 0.3	Jun 2026	Until heat death do us part	2 × 2 tiles
	Tiny Tapeout GF 26b	Jun 2026	100Mbps 3 port Ethernet switch; 100Mbps Ethernet Accelerator Wrapper	2 × 2 tiles, 1 × 2 tiles
	wafer.space Run 2	Jul 2026	CAFE Expresso Ethernet Chip: 100Mbps Ethernet switch + Heat death of the Universe Beacon - 0.5x0.5 version - Preferred version	½ × ½ slot

Analog and mixed-signal 11

74HCT00 Quad 2-Input NAND (3.3 V)

1 × 2 tiles · 112 transistors

3.3 V

GF R2R DAC

1 × 2 tiles · 284 logic cells

5 V High-resistance poly resistors

algofoogle analog stuff

1 × 2 tiles · 695 logic cells

3.3 V · 5 V High-resistance poly resistors

MoM capacitor

1 × 2 tiles

TT GF180mcuD Testbuffer

1 × 2 tiles · 80 transistors

6 V High-resistance poly resistors

tnt's recreation of a 555 on GF180mcu

1 × 2 tiles · 228 transistors

5 V MOS capacitorsHigh-resistance poly resistorsUnsalicided poly resistors

GF BGR

1 × 2 tiles · 15 transistors

3.3 V High-resistance poly resistorsDeep N-wellBipolar transistors

Quadrature VCO

1 × 2 tiles · 78 transistors

3.3 V

Analog 4 bit Current DAC

1 × 2 tiles · 96 transistors

3.3 V

3.3V Folded Cascode OTA

1 × 2 tiles · 54 transistors

3.3 V

MCML VCO

1 × 2 tiles · 52 transistors

3.3 V High-resistance poly resistors

Other digital 6

Chip ROM

1 × 1 tile · 234 logic cells

5 V

Simple Signal Generator

1 × 2 tiles · 2k logic cells

5 V

256x8 SRAM

1 × 2 tiles · 96 logic cells · 1 SRAM

3.3 V · 5 V

Philippine flag waving

1 × 2 tiles · 2k logic cells

5 V

Oscillating Bones

1 × 2 tiles · 16 logic cells

3.3 V · 5 V

PolyWave

1 × 2 tiles · 2k logic cells

5 V High-resistance poly resistors

FPGA 3

Tiny FABulous FPGA

4 × 4 tiles · 19k logic cells

5 V

Abad2048

1 × 2 tiles · 2k logic cells

5 V

Tiny FABulous FPGA (3.3V version)

4 × 4 tiles · 25k logic cells

3.3 V

Security 2

Hardware Entropy Explorer: UART/SPI TRNG and PUF

1 × 2 tiles · 3k logic cells

5 V

Hardware Entropy Explorer: UART/SPI TRNG and PUF (Analog)

1 × 2 tiles · 3k logic cells

5 V

Test structures 2

Tiny Tapeout Factory Test

1 × 1 tile · 108 logic cells

5 V

TT GF180mcuD Analog Factory Test

1 × 2 tiles · 240 transistors

3.3 V · 5 V

Games 2

2048 sliding tile puzzle game (VGA)

3 × 2 tiles · 7k logic cells

5 V

Simon Says memory game

1 × 1 tile · 1k logic cells

5 V

RISC-V and CPUs 2

TinyQV RISC-V SoC

4 × 2 tiles · 13k logic cells

5 V High-resistance poly resistors

KianV uLinux SoC

4 × 4 tiles · 20k logic cells

5 V

Communications 2

Until heat death do us part

2 × 2 tiles · 4k logic cells

5 V

USB CDC (Serial) Device

1 × 2 tiles · 3k logic cells

5 V

Art and logos 1

448

wafer.space Logo VGA Screensaver

1 × 2 tiles · 2k logic cells

5 V

Retro computing 1

VGA Nyan Cat

1 × 2 tiles · 3k logic cells

5 V

Die T0P3 on wafer.space Run 2

The die as a whole, measured like every other design on its run: its size, pads, process features, density, precheck and photographs. See every design on wafer.space Run 2

Rendered from the layout at 2.5 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings

Logic density

Inside the core logic cells per mm²	9k (12% of buffer maximum) over the 12.90 mm² core: what the design itself packed
Inside the seal ring logic cells per mm²	6k over all 19.65 mm² of the slot, pad ring included
Densest mm² logic cells per mm²	25k (32% of buffer maximum)
Core covered by logic	27%
Transistor density transistors per mm²	154k average, 328k in the mm² with the most logic cells

Every figure here is measured from the public layout, the same way for every design on the run: see data and method, and how its designs used the process.

Experimental Tiny Tapeout shuttle with Analog design support

Source repository

Die	3.93 × 5.12 mm (20.1 mm²)
Core area	12.90 mm² inside the pad ring the project template's, 442 µm in from each edge
Inside the seal ring	19.65 mm² (the die less its 26 µm seal ring)
Placements	1 on the reticle, in slot D5
Bond pads	74
Transistors	1,981,726
Logic cells	118,911 + 216,633 filler and tap cells
Libraries	7t-5V (94k), AS 7t-3.3V (25k)
SRAM	1 macro, 2,048 bits

Submission

Licence	Apache-2.0 declared Repository: Apache-2.0 in LICENSE — agrees
How it was checked	Commit and PDK pin The licence and template were read from the repository at commit 16c30128215e.
Chip-on-board	Not selected at submission
Precheck	Passed the check it was accepted on, 2026-07-04 Passed latest re-run, 2026-08-02, gf180mcu-precheck 1.7.3 step results and logs

Process features

Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.

3.3 V	AS 7t-3.3V standard cells, ocd SRAM, 14,805 custom transistors
5 V	7t-5V standard cells, 4,426 custom transistors
6 V	80 custom transistors
Gate oxides	Thin (3.3 V) and thick (5 V/6 V) in the design itself
MOS capacitors	12 (1,200 µm²)
High-resistance poly resistors	511 (26,587 µm²)
Unsalicided poly resistors	12 (102 µm²)
Deep N-well	9 (1,253 µm²)
Bipolar transistors	9 (225 µm²)
I/O library	gf180mcu_ocd_io (1140 cells)

Where the area went

How this design's area splits between logic cells, SRAM, filler and tap cells, other and pad ring.

17%

15%

32%

36%

Logic cells 3.47 mm² (17%)
SRAM 0.07 mm² (<1%)
Filler and tap cells 2.95 mm² (15%)
Other 6.41 mm² (32%)
Pad ring 7.22 mm² (36%)

Most used cells

The ten standard cells this design uses most.

Cell	Library	Instances	What it does
nand2_1	7t-5V	7,751	2-input NAND gate
mux2_2	AS 7t-3.3V	6,796	2-input multiplexer (2x drive)
buf_1	7t-5V	6,487	Buffer
nor2_1	7t-5V	6,134	2-input NOR gate
dlxfp_2	AS 7t-3.3V	5,504	Latch (level-sensitive, 2x drive)
latq_1	7t-5V	5,504	Latch (level-sensitive)
aoi21_1	7t-5V	5,099	AND-OR-Invert compound gate
dffq_1	7t-5V	5,096	D flip-flop (1 bit storage)
buff_2	AS 7t-3.3V	4,980	Buffer (2x drive)
oai21_1	7t-5V	3,545	OR-AND-Invert compound gate

Logic density map

Logic cells per mm² in each square millimetre of the die. Hatched outlines are SRAM macros; the red outline is the densest mm² that avoids them (25k logic cells per mm²), found by sliding a 1 mm square over the die in 0.1 mm steps, so it can straddle the fixed squares and find more than any one of them. Squares at the edges are partial, so they read low.

SRAM macros

The ready-made memory blocks this design uses.

Macro	Count	Bits each
gf180mcu_ocd_ip_sram__sram256x8m8wm1	1	2,048

Precheck

Before a design is made, the wafer.space platform checks it against the foundry's design rules. T0P3 was accepted on this check, and has been checked again since with newer rules.

All 16 steps passed, with 0 KLayout DRC errors, on 2026-07-04.

Every step, and the latest re-run

Step	Accepted on check 336, 2026-07-04, initial	Latest re-run check 741, 2026-08-02, drc_update, gf180mcu-precheck 1.7.3 PDK open_pdks 1.0.604, LibreLane 5fe3db1
KLayout.ReadLayout	passed	passed
KLayout.CheckTopLevel	passed	passed
KLayout.CheckSize	passed	passed
KLayout.GenerateID	passed	passed
KLayout.Render	passed	passed
KLayout.Density	passed	passed
Checker.KLayoutDensity	passed	passed
KLayout.ZeroAreaPolygons	passed	passed
Checker.KLayoutZeroAreaPolygons	passed	passed
KLayout.Antenna	passed	passed
Checker.KLayoutAntenna	passed	passed
Magic.DRC	passed	passed
Checker.MagicDRC	advisory warning	advisory warning
KLayout.DRC	passed	passed
Checker.KLayoutDRC	passed	passed
KLayout.WriteLayout	passed	passed
KLayout DRC errors	0	0
Magic DRC errors (advisory)	2,268	2,268
Files	steps · log (gzip)	steps · log (gzip)

The steps of the gf180mcu-precheck LibreLane flow, as run by platform.wafer.space. The design was accepted on the newest finished check before it was submitted; later re-runs check the same file with updated rules. KLayout DRC is the sign-off check. Magic DRC is advisory: its count does not stop a design. In the logs, Magic's "Error while reading cell" lines about fill cells are messages from its reader, not check failures.

Data and method

Everything on this page is measured from the public layout; the dates come from the published schedules.

Logic cells are standard cell instances, excluding fillers, taps, antenna diodes and tie cells.
Transistors are places where gate polysilicon crosses diffusion, not counting dummy fill.
Core area is the whole project.
Bond pads are the pad openings in the pad ring, or in a second ring of pads inside it for chip-on-board bonding; probe pads are the others, next to the blocks they test. Letters and logos on the pad layer are not pads.
Theoretical maximum tiles one cell at its placement boundary with no routing.
Densest 0.1 mm square is the best 0.1 mm square anywhere in each die, sliding in 20 µm steps and avoiding SRAM, given per mm².

The full written analysis is the density report. The measurements behind it:

Generated by ws-run-reports from layout/T0P3.oas (md5 bfd37b3547ee338c21a9689a031bbb0c).

What is Tiny Tapeout?

Tiny Tapeout is the quickest and cheapest way to get your own design made on a real chip.

Many designs share one Tiny Tapeout chip. Each project gets one or more small tiles, and a multiplexer on the chip connects the one you choose to the pins. Draw your first design in the browser with no experience by following the digital design guide, or write it in Verilog or another HDL; Tiny Tapeout's templates build and check it on GitHub. The chip comes on a demo board that selects your design and drives it.

Tiny Tapeout also runs workshops and supports teaching in universities and schools. Browse every Tiny Tapeout chip and the projects proven in silicon, or read the Tiny Tapeout FAQ.

Buy a chip and board All its projects on tinytapeout.com

The Tiny Tapeout demo board, with the socket in the middle where the chip's breakout card plugs in — Tiny Tapeout chips come on a breakout card that plugs into the middle of the demo board. Its RP2350 selects a project and drives its clock; the DIP switches, the seven-segment display and the Pmod headers connect to the project's pins. Render: Tiny Tapeout, tt-demo-pcb, Apache 2.0.

Tiny Tapeout and wafer.space are independent companies that work together (announcement). Tiny Tapeout runs its own shuttles: it takes the projects, builds the die, and sells and supports the chips and boards. wafer.space has the dies manufactured on its GF180MCU runs, and these pages are wafer.space's measurements of them. For anything about a Tiny Tapeout project, chip or order, contact Tiny Tapeout.
