Tiny Tapeout GF 0.3 · Die T0P3 on wafer.space Run 2
Oscillating Bones
294 · Other digital · 1 × 2 tiles
by Uri Shaked · repository @urish

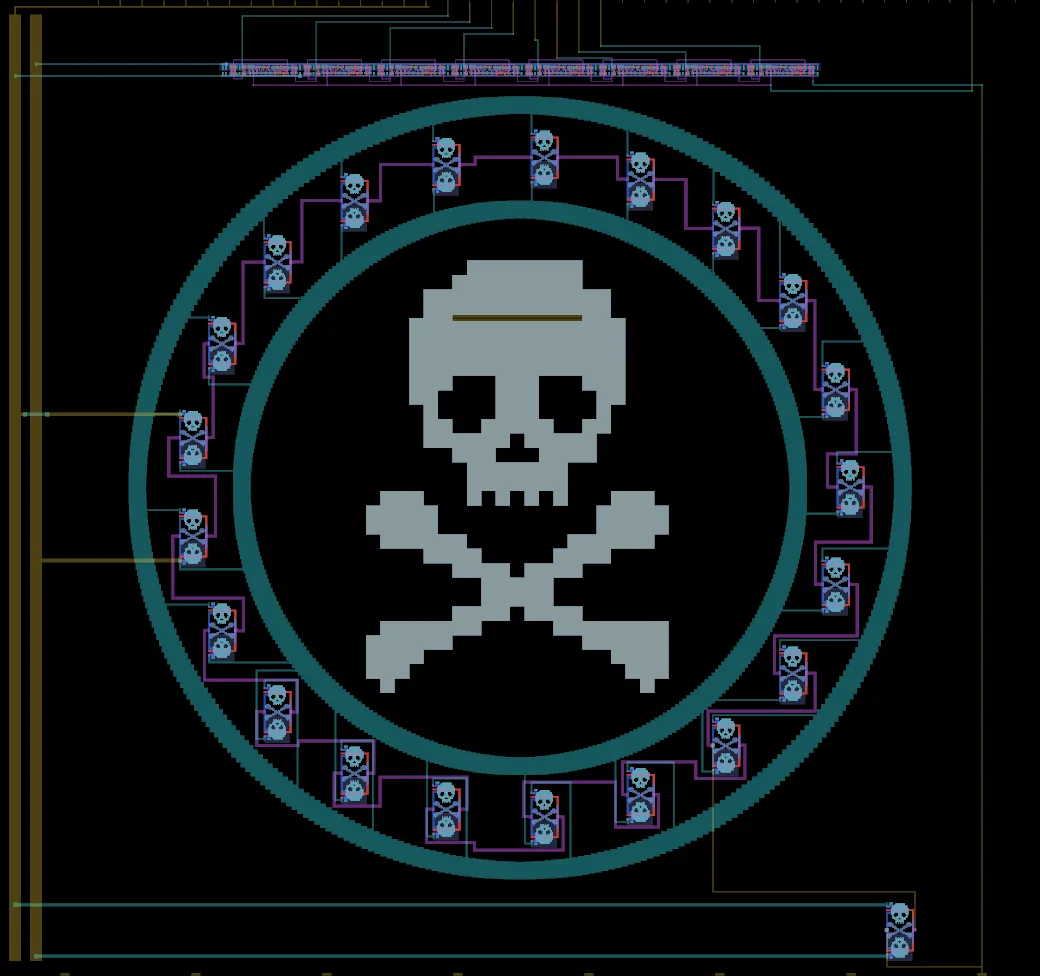

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
16 logic cells: too few for density figures, which are given for projects of 1,000 or more.
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
A stylish SkullFET ring oscillator (~120 MHz) with an 8-bit /2../256 divider
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 347 × 325 µm (0.113 mm²) |
|---|---|
| Macro | tt_um_oscillating_bones |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.3 |
| Tiles | 1 × 2 at column 0, row 14 of the tile grid |
| Mux address | 294 |
| Language | Analog |
| Transistors | 300 |
| Logic cells | 16 + 18 filler and tap cells |
| Libraries | 7t-5V (16) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 3.3 V | 44 custom transistors |
|---|---|
| 5 V | 7t-5V standard cells |
| Gate oxides | Thin (3.3 V) and thick (5 V/6 V) in the design itself |
