Tiny Tapeout GF 0.3 · Die T0P3 on wafer.space Run 2

3.3V Folded Cascode OTA

292 · Analog and mixed-signal · 1 × 2 tiles

by Pranay Arvind Patil and Nithin Purushothama

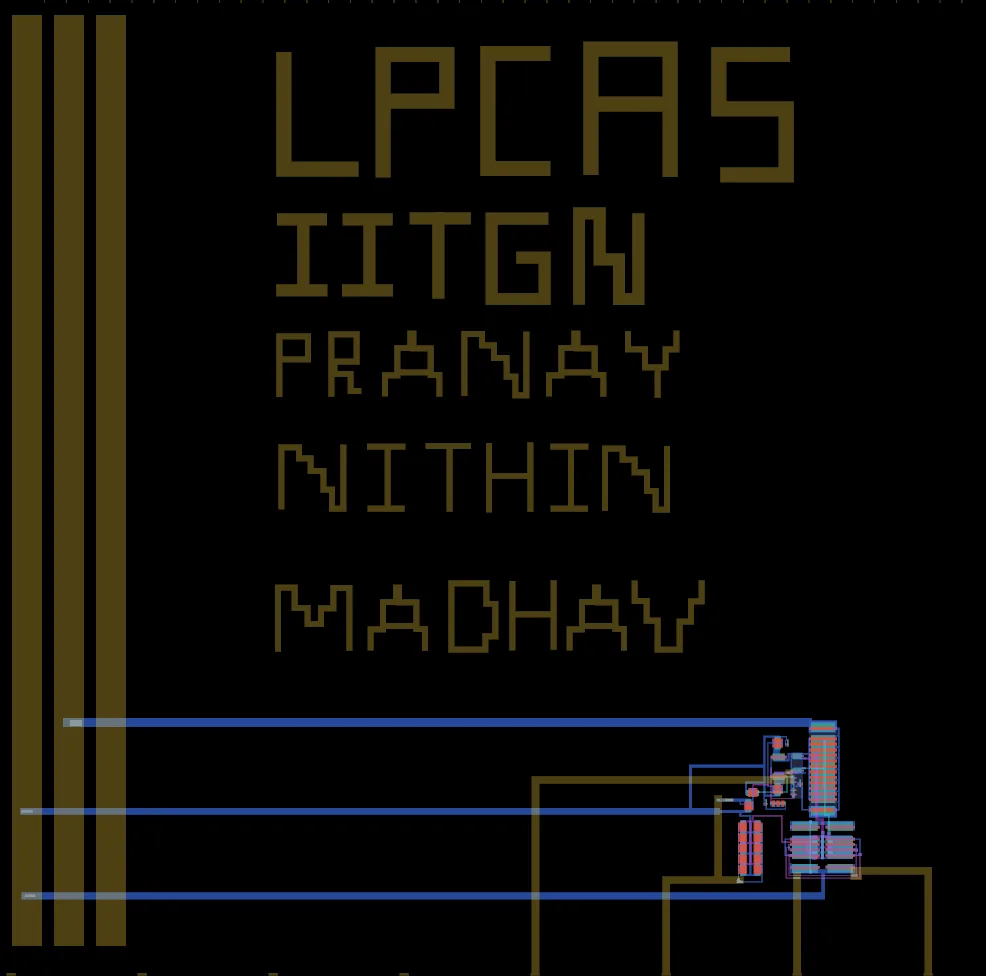

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings

Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.

NMOS Input pair based Folded Cascode OTA

Size329 × 325 µm (0.107 mm²)
Macrott_um_LPCAS_TTGF0P3_TP1
Filesdocumentation · licence · layout and netlist in Tiny Tapeout GF 0.3
Tiles1 × 2 at column 1, row 14 of the tile grid
Mux address292
LanguageAnalog
Transistors54
Logic cells0
SRAMNo SRAM

Process features

Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.

3.3 V54 custom transistors
Gate oxidesThin only (3.3 V) in the design itself

Where the area went

All of this project's area is other.

100%
  • Other 0.11 mm² (100%)
