Tiny Tapeout GF 0.3 · Die T0P3 on wafer.space Run 2
Analog 4 bit Current DAC
290 · Analog and mixed-signal · 1 × 2 tiles
by Kiterai · repository @Kiterai

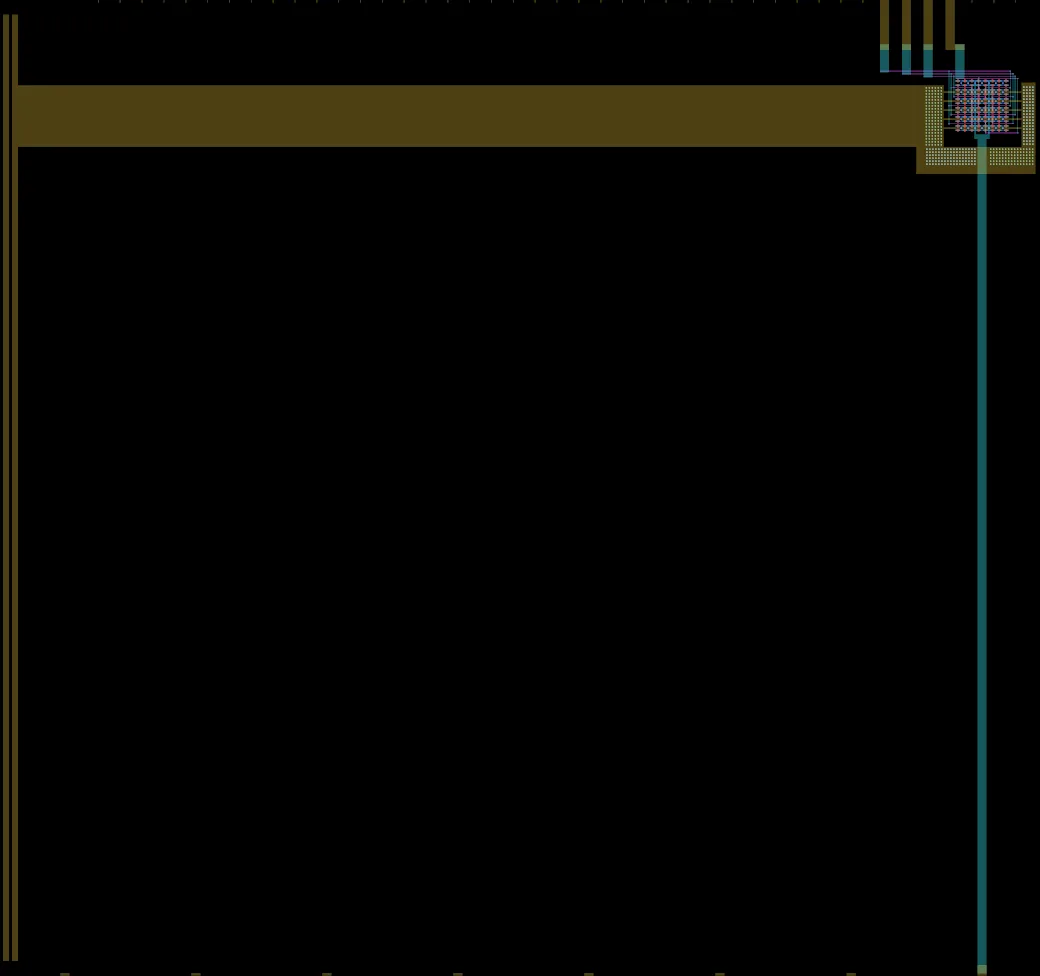

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Simple 4 bit current output DAC
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 347 × 325 µm (0.113 mm²) |
|---|---|
| Macro | tt_um_kiterai_current_dac |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.3 |
| Tiles | 1 × 2 at column 2, row 14 of the tile grid |
| Mux address | 290 |
| Language | Analog |
| Transistors | 96 |
| Logic cells | 0 |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 3.3 V | 96 custom transistors |
|---|---|
| Gate oxides | Thin only (3.3 V) in the design itself |
