Tiny Tapeout GF 0.3 · Die T0P3 on wafer.space Run 2
TT GF180mcuD Analog Factory Test
007 · Test structures · 1 × 2 tiles
by Sylvain Munaut · repository @smunaut

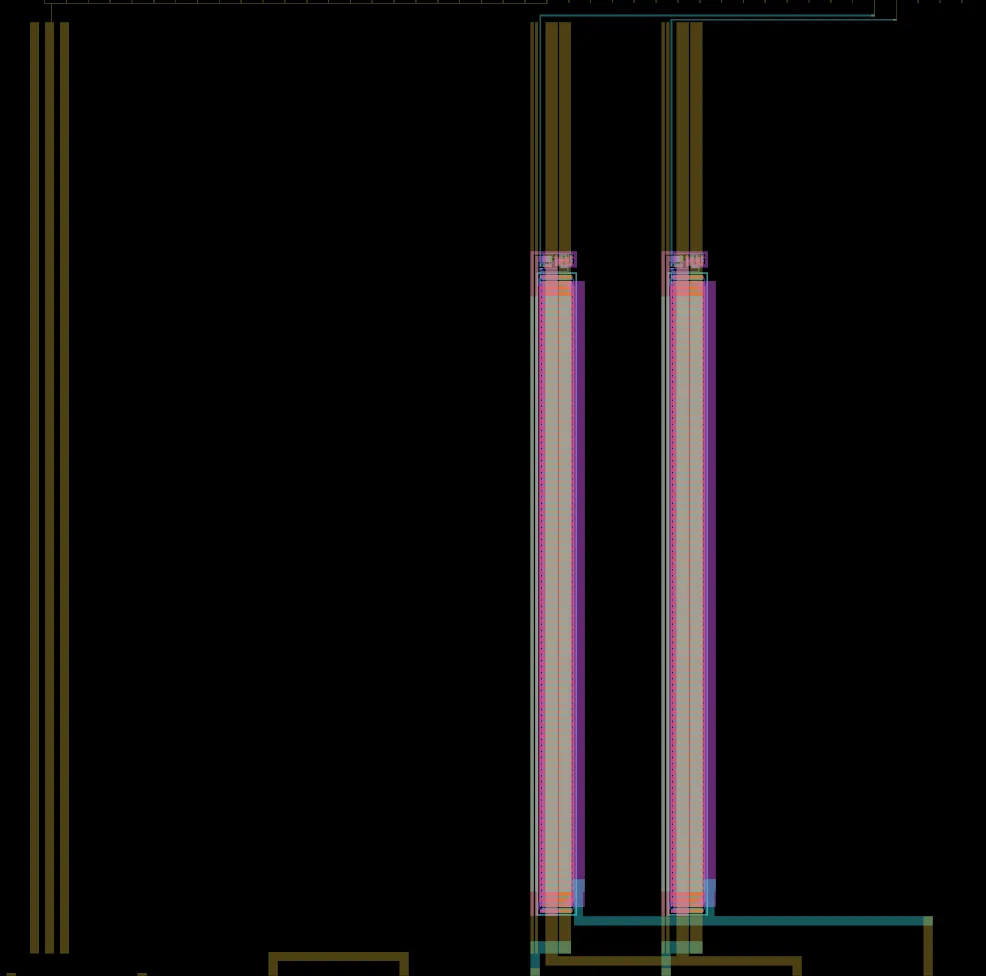

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Test structures for GF180mcuD analog support
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 329 × 325 µm (0.107 mm²) |
|---|---|
| Macro | tt_um_analog_factory_test |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.3 |
| Tiles | 1 × 2 at column 0, row 8 of the tile grid |
| Mux address | 7 |
| Language | Analog |
| Transistors | 240 |
| Logic cells | 0 |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 3.3 V | 8 custom transistors |
|---|---|
| 5 V | 232 custom transistors |
| Gate oxides | Thin (3.3 V) and thick (5 V/6 V) in the design itself |
