Tiny Tapeout GF 0.3 · Die T0P3 on wafer.space Run 2
tnt's recreation of a 555 on GF180mcu
103 · Analog and mixed-signal · 1 × 2 tiles
by Sylvain Munaut · repository @smunaut

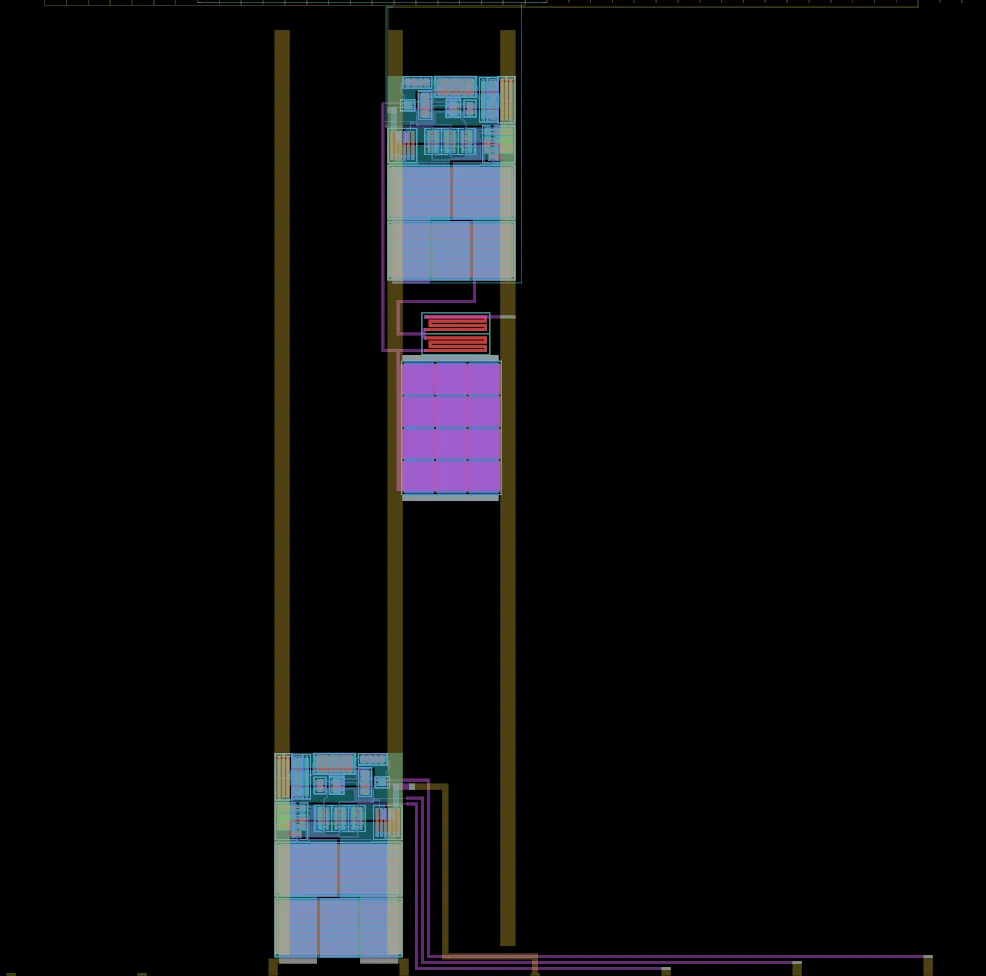

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Just a simple classic timer IC re-imagined
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 329 × 325 µm (0.107 mm²) |
|---|---|
| Macro | tt_um_tnt_gf_555 |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.3 |
| Tiles | 1 × 2 at column 7, row 11 of the tile grid |
| Mux address | 103 |
| Language | Analog |
| Transistors | 228 |
| Logic cells | 0 |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 216 custom transistors |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
| MOS capacitors | 12 (1,200 µm²) |
| High-resistance poly resistors | 8 (236 µm²) |
| Unsalicided poly resistors | 12 (102 µm²) |
