Tiny Tapeout GF 0.3 · Die T0P3 on wafer.space Run 2
MoM capacitor
039 · Analog and mixed-signal · 1 × 2 tiles
by htfab · repository @htfab

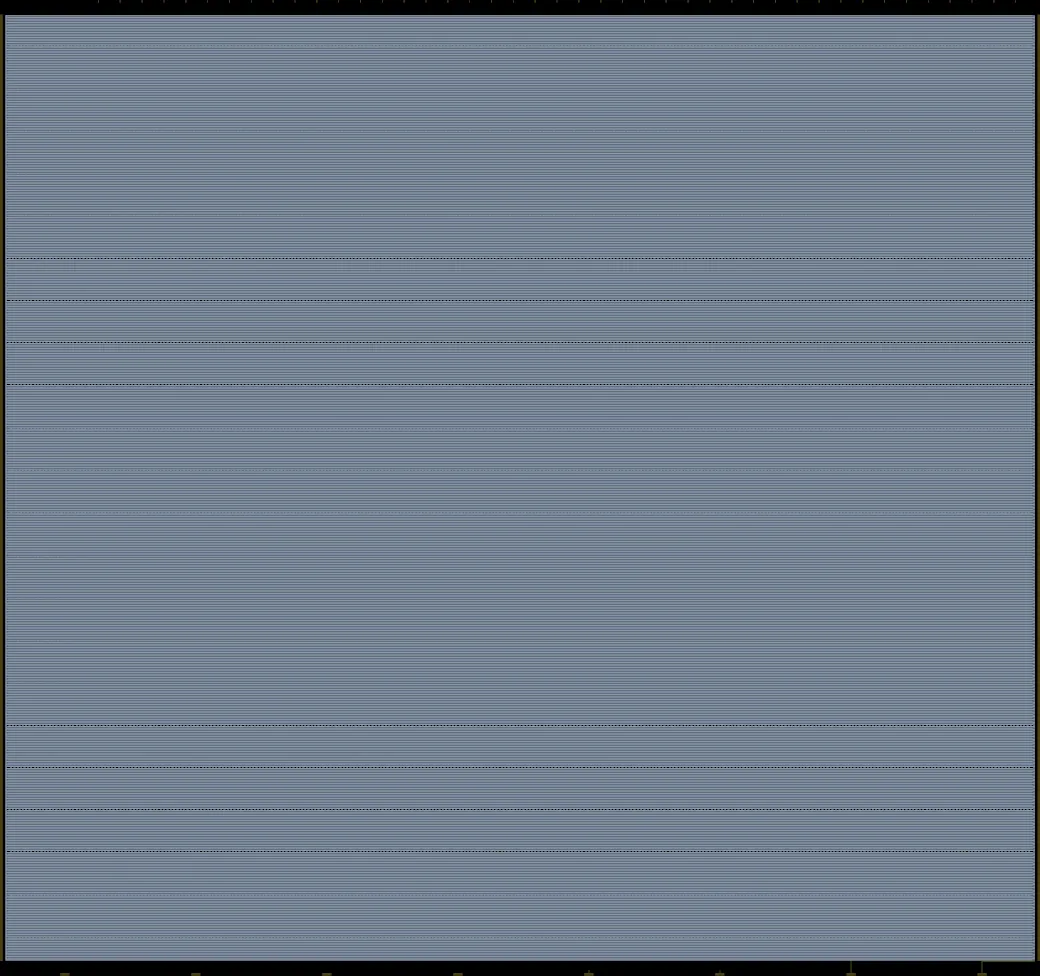

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Simple metal-oxide-metal capacitor for gf180mcuD that fills an analog 1x2 tile
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 347 × 325 µm (0.113 mm²) |
|---|---|
| Macro | tt_um_htfab_momcap |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.3 |
| Tiles | 1 × 2 at column 0, row 11 of the tile grid |
| Mux address | 39 |
| Language | Analog |
| Transistors | 0 |
| Logic cells | 0 |
| SRAM | No SRAM |
