MCML VCO

454 · Analog and mixed-signal · 1 × 2 tiles

by Namibj

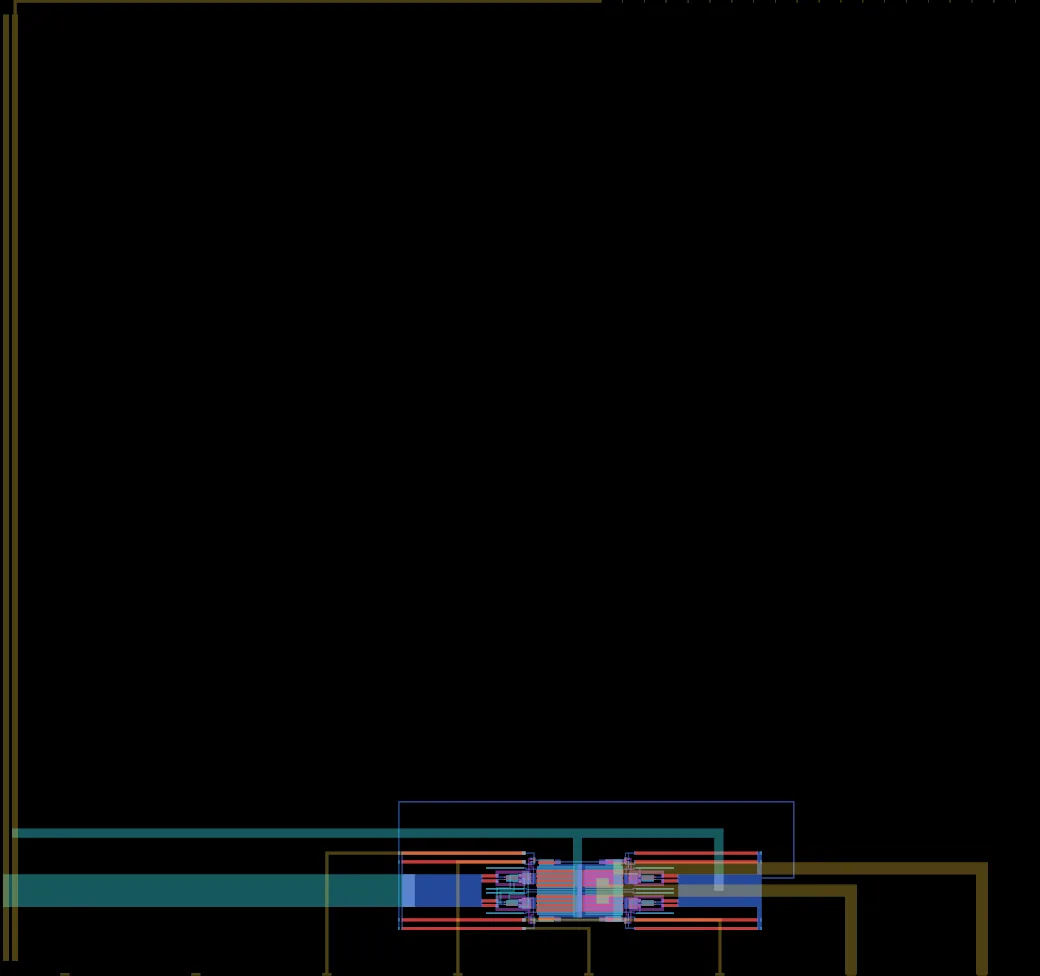

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings

Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.

An MCML VCO

Size347 × 325 µm (0.113 mm²)
Macrott_um_mcml_vco
Filesdocumentation · licence · layout and netlist in Tiny Tapeout GF 0.3
Tiles1 × 2 at column 7, row 3 of the tile grid
Mux address454
LanguageAnalog
Transistors52
Logic cells0
SRAMNo SRAM

Process features

Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.

3.3 V52 custom transistors
Gate oxidesThin only (3.3 V) in the design itself
High-resistance poly resistors16 (352 µm²)

Where the area went

All of this project's area is other.

100%
  • Other 0.12 mm² (100%)
