TinyQV - RISC-V SoC with HDMI output

TQVD · RISC-V and CPUs · ½ × ½ slot

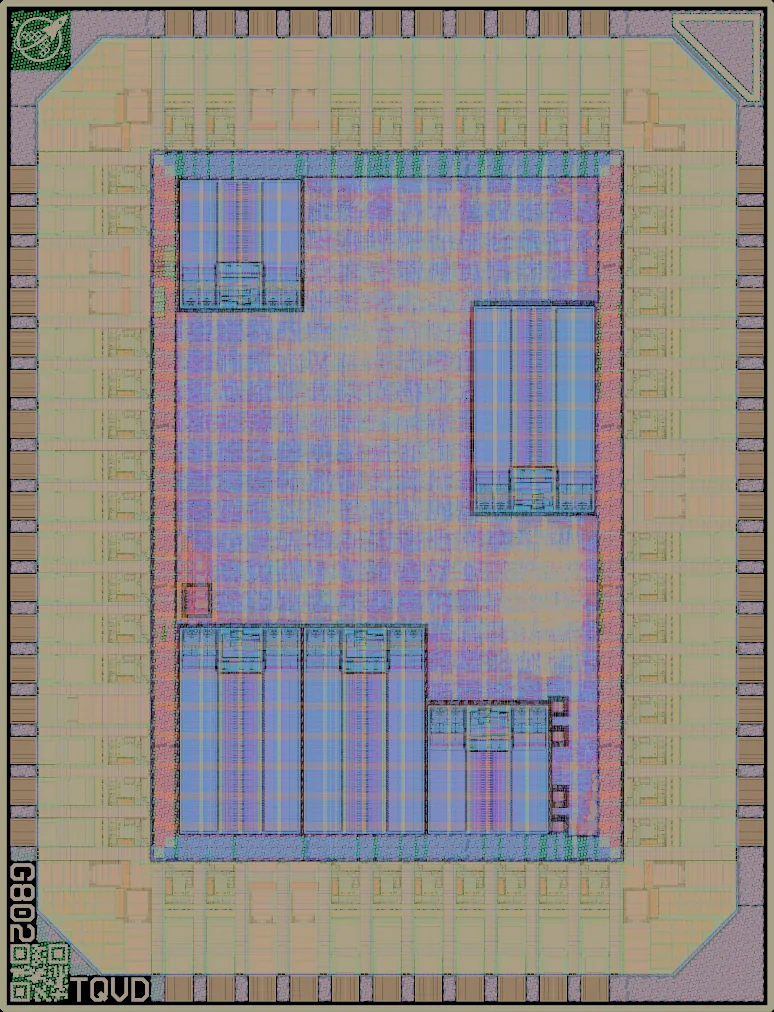

Rendered from the layout at 2.5 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings

Logic density

Inside the core logic cells per mm²	14k (18% of buffer maximum) over the 1.73 mm² core: what the design itself packed
Inside the seal ring logic cells per mm²	5k over all 4.68 mm² of the slot, pad ring included
Core covered by logic	37%
Transistor density transistors per mm²	354k average

Every figure here is measured from the public layout, the same way for every design on the run: see data and method, and how its designs used the process.

This version of TinyQV uses the new 3v3 standard cell library, 3v3 SRAM macros and the split voltage pads. Apart from that it is similar to the Run 1 TinyQV, but with additional scratch RAM, new HDMI/VGA text mode output support and a single 8-bit DAC.

Source repository

Die	1.94 × 2.53 mm (4.9 mm²)
Core area	1.73 mm² inside the pad ring as set in the design's own layout settings
Inside the seal ring	4.68 mm² (the die less its 26 µm seal ring)
Placements	1 on the reticle, in slot H1
Bond pads	56
Transistors	612,804
Logic cells	23,689 + 40,036 filler and tap cells
Libraries	AS 7t-3.3V (24k)
SRAM	5 macros, 32,768 bits

Submission

Licence	Apache-2.0 declared Repository: Apache-2.0 in LICENSE — agrees
Template	wafer-space/gf180mcu-project-template 1.5.8
How it was checked	Commit and PDK pin The licence and template were read from the repository at commit 1ac951fb0fd3.The template release named above is the one whose Makefile pins the same PDK as that commit (PDK_COMMIT f6eeac7dad08).
Chip-on-board	Selected at submission
Precheck	Passed the check it was accepted on, 2026-07-14, gf180mcu-precheck 1.7.2 (from its image) Passed latest re-run, 2026-08-02, gf180mcu-precheck 1.7.3 step results and logs
