wafer.space Run 1

wafer.space Logo

WSLG · Art and logos · 1 × 1 slot

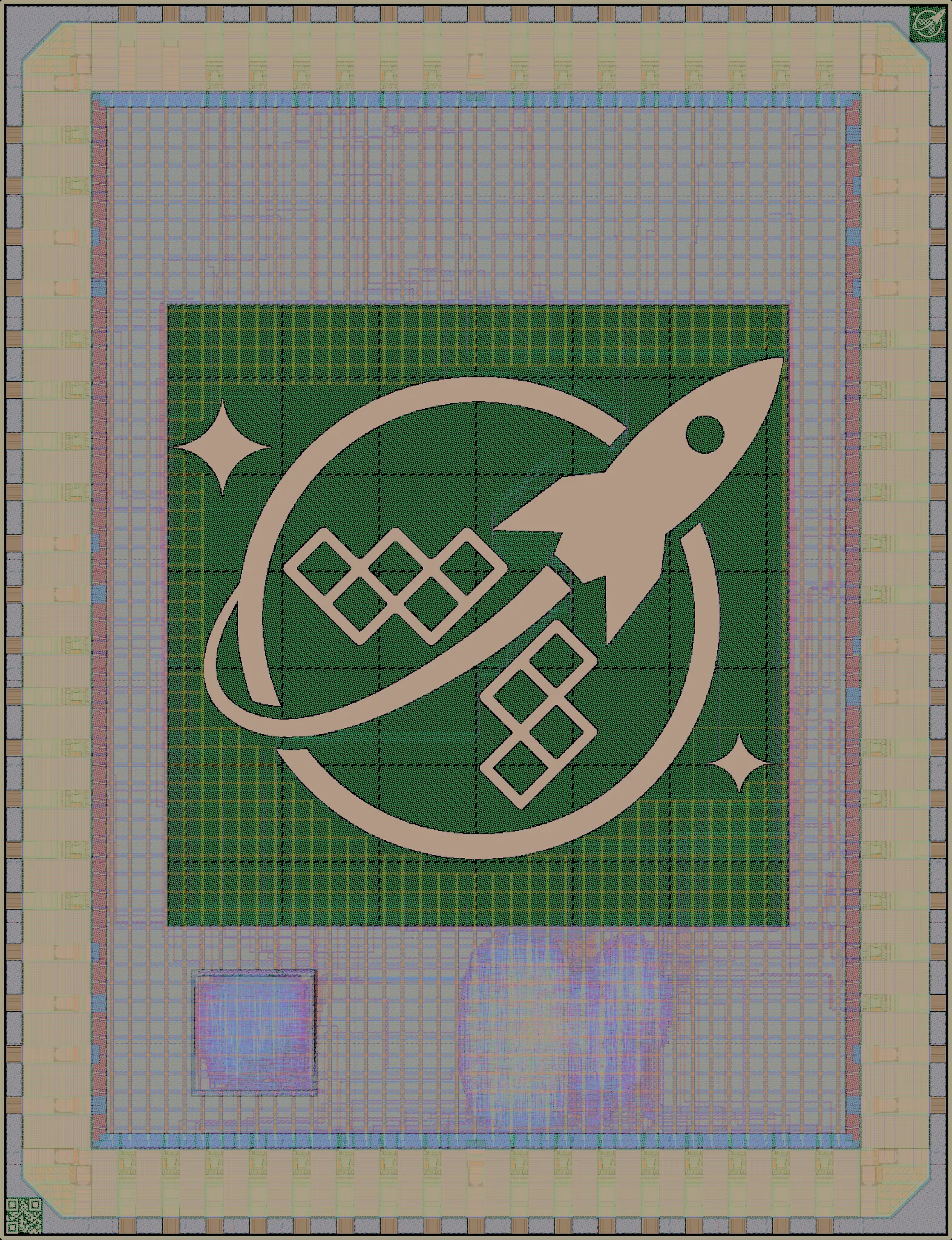

Rendered from the layout at 2.5 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings

Logic density

Inside the core
logic cells per mm²
1k (1% of buffer maximum)
over the 12.92 mm² core: what the design itself packed
Inside the seal ring
logic cells per mm²
1k
over all 19.65 mm² of the slot, pad ring included
Densest mm²
logic cells per mm²
11k (15% of buffer maximum)
Core covered by logic4%
Transistor density
transistors per mm²
117k average, 248k in the mm² with the most logic cells

Every figure here is measured from the public layout, the same way for every design on the run: see data and method, and how its designs used the process.

Die with a big wafer.space logo on it!

Die3.93 × 5.12 mm (20.1 mm²)
Core area12.92 mm² inside the pad ring
as set in the design's own layout settings
Inside the seal ring19.65 mm² (the die less its 26 µm seal ring)
Placements1 on the reticle, in slot F4 WSLG on the reticle
Bond pads74
Transistors1,506,245
Logic cells14,290 + 145,520 filler and tap cells
Libraries 7t-5V (13k), AS extra 7t-5V (2k)
SRAMNo SRAM

Submission

LicenceApache-2.0 declared
Repository: Apache-2.0 in LICENSE — agrees
Templatewafer-space/gf180mcu-project-template 1.3.1 or 1.3.2
How it was checked
Commit and PDK pin The licence and template were read from the repository at commit 02d2ff4e3768.The template releases named above are the ones whose Makefile pins the same PDK as that commit (PDK_TAG 1.6.4).
Chip-on-boardNot selected at submission
PrecheckPassed the check it was accepted on, 2026-01-04, gf180mcu-precheck 1.5.5 (from its image)
Passed latest re-run, 2026-08-02, gf180mcu-precheck 1.7.3
step results and logs

Process features

Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.

5 V7t-5V standard cells, AS extra 7t-5V standard cells
Gate oxidesThick only (5 V/6 V) in the design itself
I/O librarygf180mcu_fd_io (1122 cells), gf180mcu_ws_io (18 cells)

Where the area went

How this design's area splits between logic cells, filler and tap cells, other and pad ring.

28%
33%
36%
  • Logic cells 0.52 mm² (3%)
  • Filler and tap cells 5.72 mm² (28%)
  • Other 6.67 mm² (33%)
  • Pad ring 7.20 mm² (36%)

Most used cells

The ten standard cells this design uses most.

CellLibraryInstancesWhat it does
mux2_27t-5V 2,4392-input multiplexer (2x drive)
buf_27t-5V 1,605Buffer (2x drive)
dfxtp_2AS extra 7t-5V 1,600D flip-flop (1 bit storage, 2x drive)
and2_27t-5V 1,1202-input AND gate (2x drive)
nand2_27t-5V 6382-input NAND gate (2x drive)
buf_87t-5V 578Buffer (8x drive)
aoi21_27t-5V 447AND-OR-Invert compound gate (2x drive)
aoi22_27t-5V 433AND-OR-Invert (2x2 inputs, 2x drive)
clkinv_27t-5V 334Clock inverter (2x drive)
and3_27t-5V 3203-input AND gate (2x drive)

Logic density map

879 logic cells, 74,314 transistors 2,398 logic cells, 134,600 transistors 6,874 logic cells, 163,034 transistors 15 logic cells, 64,459 transistors 176 logic cells, 76,896 transistors 556 logic cells, 65,571 transistors 3,117 logic cells, 81,898 transistors 54 logic cells, 71,163 transistors 31 logic cells, 57,976 transistors 0 logic cells, 0 transistors 0 logic cells, 0 transistors 50 logic cells, 54,222 transistors 18 logic cells, 67,163 transistors 30 logic cells, 30,474 transistors 14 logic cells, 30,152 transistors 10 logic cells, 61,704 transistors 6 logic cells, 87,688 transistors 44 logic cells, 153,355 transistors 13 logic cells, 153,224 transistors 5 logic cells, 77,522 transistors 0 logic cells, 160 transistors 0 logic cells, 256 transistors 0 logic cells, 255 transistors 0 logic cells, 159 transistors Densest SRAM-free mm²: 11,110 logic cells 1k 2k 7k <1k <1k 1k 3k <1k <1k 0 0 <1k <1k <1k <1k <1k <1k <1k <1k <1k

Logic cells per mm² in each square millimetre of the die. Hatched outlines are SRAM macros; the red outline is the densest mm² that avoids them (11k logic cells per mm²), found by sliding a 1 mm square over the die in 0.1 mm steps, so it can straddle the fixed squares and find more than any one of them. Squares at the edges are partial, so they read low.

wafer.space Logo has been made on 2 shuttles since Dec 2025. Every version, oldest first, with this one in bold:

  1. Dec 2025 · wafer.space Run 1 WSLG wafer.space Logo — 1 × 1 slot
  2. Jul 2026 · wafer.space Run 2 WSLG wafer.space Logo — 1 × 1 slot

Tiny Tapeout tile Google shuttle wafer.space die

Its dies compared

Every die of this design measured here, oldest first, with this one in bold.

Made onSlotLibraryGate oxides Logic cellsPer mm² of coreDensest SRAM
wafer.space Run 1 · WSLG 1 × 1mixed 5 V/6 V only 14,290 1k 11k none
wafer.space Run 2 · WSLG
the same logic cells and transistors as WSLG on wafer.space Run 1
1 × 1mixed 5 V/6 V only 14,290 1k 11k none

The fabricated die

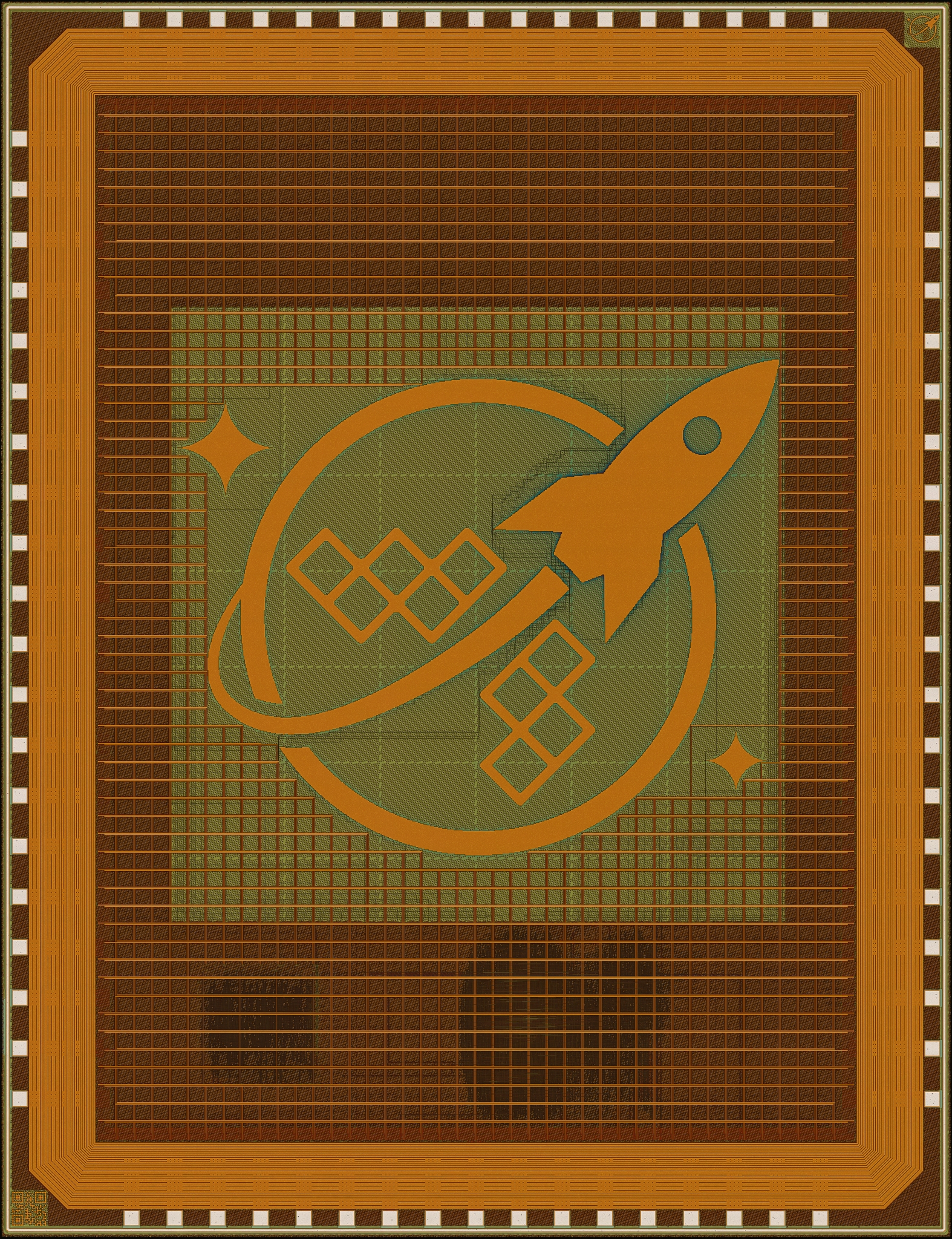

A photograph of the finished chip, taken through a microscope after manufacture: optical micrograph © 2026 InfoSecDJ, CC BY-SA 4.0

Precheck

Before a design is made, the wafer.space platform checks it against the foundry's design rules. WSLG was accepted on this check, and has been checked again since with newer rules.

All 15 steps passed, with 0 KLayout DRC errors, on 2026-01-04.

Every step, and the latest re-run
StepAccepted on
check 242, 2026-01-04, initial, gf180mcu-precheck 1.5.5 (from its image)
PDK wafer-space/gf180mcu 1.6.6, LibreLane e2f0b0e
Latest re-run
check 732, 2026-08-02, drc_update, gf180mcu-precheck 1.7.3
PDK open_pdks 1.0.604, LibreLane 5fe3db1
KLayout.ReadLayoutpassedpassed
KLayout.CheckTopLevelpassedpassed
KLayout.CheckSizepassedpassed
KLayout.GenerateIDpassedpassed
KLayout.Rendernot in this flowpassed
KLayout.Densitypassedpassed
Checker.KLayoutDensitypassedpassed
KLayout.ZeroAreaPolygonspassedpassed
Checker.KLayoutZeroAreaPolygonspassedpassed
KLayout.Antennapassedpassed
Checker.KLayoutAntennapassedpassed
Magic.DRCpassedpassed
Checker.MagicDRCpassedpassed
KLayout.DRCpassedpassed
Checker.KLayoutDRCpassedpassed
KLayout.WriteLayoutpassedpassed
KLayout DRC errors00
Magic DRC errors (advisory)00
Filessteps · log (gzip)steps · log (gzip)

The steps of the gf180mcu-precheck LibreLane flow, as run by platform.wafer.space. The design was accepted on the newest finished check before it was submitted; later re-runs check the same file with updated rules. KLayout DRC is the sign-off check. Magic DRC is advisory: its count does not stop a design. In the logs, Magic's "Error while reading cell" lines about fill cells are messages from its reader, not check failures.

Want a chip of your own like this one?

wafer.space Run 3 takes orders until 9 December 2026. Or start smaller with Tiny Tapeout: the next Tiny Tapeout GF180MCU chips take projects until 7 December 2026, for wafer.space Run 3.
