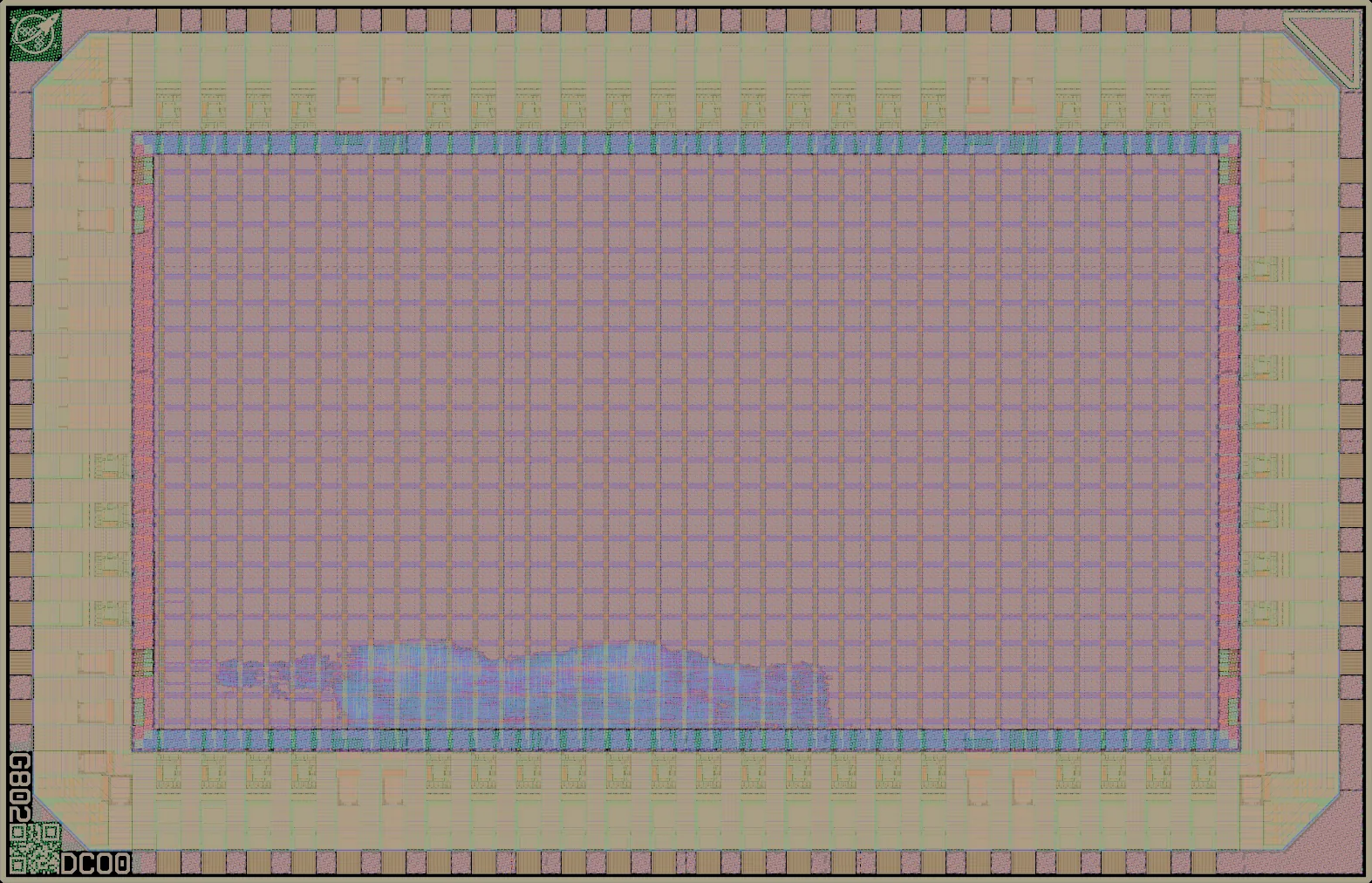

Rendered from the layout at 2.5 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Logic density
| Inside the core logic cells per mm² | 1k
(2% of buffer maximum) over the 5.02 mm² core: what the design itself packed |
|---|---|
| Inside the seal ring logic cells per mm² | 1k
over all 9.61 mm² of the slot, pad ring included |
| Densest mm² logic cells per mm² | 5k (7% of buffer maximum) |
| Core covered by logic | 6% |
| Transistor density transistors per mm² | 234k average, 150k in the mm² with the most logic cells |
Every figure here is measured from the public layout, the same way for every design on the run: see data and method, and how its designs used the process.
A tiny Digital Controlled Oscillator + Time-to-Digital Converter comprised entirely in gf180 standard cells
| Die | 3.93 × 2.53 mm (9.9 mm²) |
|---|---|
| Core area | 5.02 mm² inside the pad ring
as set in the design's own layout settings |
| Inside the seal ring | 9.61 mm² (the die less its 26 µm seal ring) |
| Placements | 1 on the reticle, in slot A2 |
| Bond pads | 72 |
| Transistors | 1,172,973 |
| Logic cells | 7,139 + 100,281 filler and tap cells |
| Libraries | 7t-5V (7k) |
| SRAM | No SRAM |
Submission
| Licence | Apache-2.0 declared
Repository: Apache-2.0 in LICENSE — agrees |
|---|---|
| Template | wafer-space/gf180mcu-project-template 1.5.3 |
| How it was checked | Commit and PDK pinThe licence and template were read from the repository at commit c5b10fc855d7.The template release named above is the one whose Makefile pins the same PDK as that commit (PDK_COMMIT 019cf7a3e0de). |
| Chip-on-board | Selected at submission |
| Precheck | Passed
the check it was accepted on, 2026-07-14, gf180mcu-precheck 1.7.1 (from its image)
Passed latest re-run, 2026-08-03, gf180mcu-precheck 1.7.3 step results and logs |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
| I/O library | gf180mcu_fd_io (758 cells) |
Where the area went
How this design's area splits between logic cells, filler and tap cells, other and pad ring.
- Logic cells 0.28 mm² (3%)
- Filler and tap cells 4.73 mm² (48%)
- Other 0.01 mm² (<1%)
- Pad ring 4.92 mm² (50%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| dlyb_1 | 7t-5V | 5,550 | Delay buffer |
| dffrnq_1 | 7t-5V | 518 | D flip-flop with reset |
| dlyd_4 | 7t-5V | 304 | Delay buffer (4x drive) |
| mux2_1 | 7t-5V | 248 | 2-input multiplexer |
| inv_1 | 7t-5V | 198 | Inverter |
| inv_4 | 7t-5V | 192 | Inverter (4x drive) |
| mux2_2 | 7t-5V | 32 | 2-input multiplexer (2x drive) |
| invz_1 | 7t-5V | 16 | Tri-state inverter |
| clkbuf_8 | 7t-5V | 13 | Clock buffer (8x drive) |
| buf_4 | 7t-5V | 8 | Buffer (4x drive) |
