SPI Master Slave Communication
455 · Communications · 1 × 1 tile
by Nevin Philip · repository @nev-1910

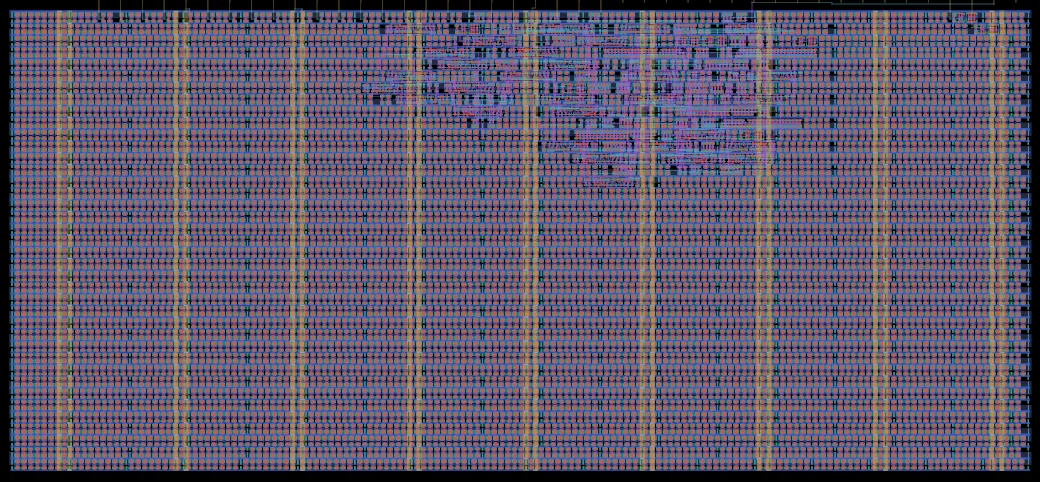

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
128 logic cells: too few for density figures, which are given for projects of 1,000 or more.
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
8-bit Full Duplex SPI Communication using Master and Slave
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 347 × 161 µm (0.056 mm²) |
|---|---|
| Macro | tt_um_spi_master |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 26b |
| Tiles | 1 × 1 at column 7, row 2 of the tile grid |
| Mux address | 455 |
| Language | Verilog |
| Built with | LibreLane 3.0.3, open_pdks 54435919abff |
| Transistors | 11,916 |
| Logic cells | 128 + 1,339 filler and tap cells |
| Libraries | 7t-5V (128) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this project's area splits between logic cells, filler and tap cells and other.
- Logic cells 4,472 µm² (8%)
- Filler and tap cells 0.05 mm² (85%)
- Other 4,033 µm² (7%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| dffrnq_1 | 7t-5V | 24 | D flip-flop with reset |
| clkinv_1 | 7t-5V | 22 | Clock inverter |
| nand2_1 | 7t-5V | 14 | 2-input NAND gate |
| mux2_2 | 7t-5V | 9 | 2-input multiplexer (2x drive) |
| buf_2 | 7t-5V | 8 | Buffer (2x drive) |
| dlyb_1 | 7t-5V | 8 | Delay buffer |
| nor2_1 | 7t-5V | 7 | 2-input NOR gate |
| dffsnq_1 | 7t-5V | 6 | D flip-flop with set |
| clkbuf_16 | 7t-5V | 5 | Clock buffer (16x drive) |
| oai21_1 | 7t-5V | 5 | OR-AND-Invert compound gate |
