Tiny Tapeout GF 26b · Die T26B on wafer.space Run 2
Configurable 8-bit PWM Generator
480 · Other digital · 1 × 1 tile
by Vinuta

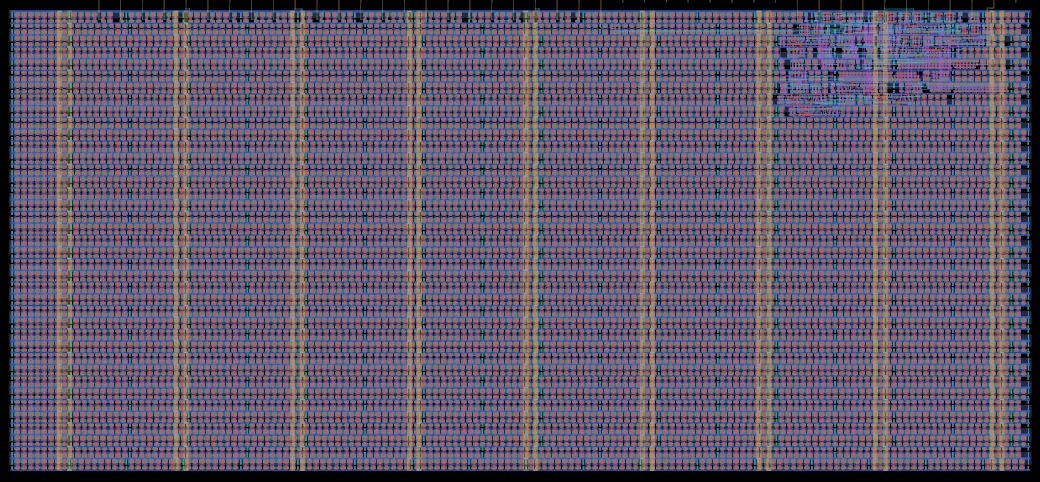

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
57 logic cells: too few for density figures, which are given for projects of 1,000 or more.
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Generates a variable duty cycle PWM signal using an 8-bit input.
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 347 × 161 µm (0.056 mm²) |
|---|---|
| Macro | tt_um_pwm_cit |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 26b |
| Tiles | 1 × 1 at column 4, row 16 of the tile grid |
| Mux address | 480 |
| Language | Verilog |
| Clock | 50 MHz |
| Built with | LibreLane 3.0.3, open_pdks 54435919abff |
| Transistors | 11,592 |
| Logic cells | 57 + 1,279 filler and tap cells |
| Libraries | 7t-5V (57) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this project's area splits between logic cells, filler and tap cells and other.
- Logic cells 1,857 µm² (3%)
- Filler and tap cells 0.05 mm² (89%)
- Other 4,033 µm² (7%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| clkinv_1 | 7t-5V | 8 | Clock inverter |
| dffrnq_1 | 7t-5V | 8 | D flip-flop with reset |
| dlyb_1 | 7t-5V | 8 | Delay buffer |
| nand2_1 | 7t-5V | 6 | 2-input NAND gate |
| xor2_1 | 7t-5V | 4 | 2-input XOR gate |
| buf_2 | 7t-5V | 3 | Buffer (2x drive) |
| clkbuf_16 | 7t-5V | 3 | Clock buffer (16x drive) |
| nand3_1 | 7t-5V | 3 | 3-input NAND gate |
| xnor2_1 | 7t-5V | 3 | 2-input XNOR gate |
| aoi22_1 | 7t-5V | 2 | AND-OR-Invert (2x2 inputs) |
