Tiny Tapeout GF 0.2 · Die TTPG on wafer.space Run 1: the power-gated edition
PRISM 8 with TinySnake
579 · Games · 1 × 1 tile
by Ken Pettit · repository @kdp1965

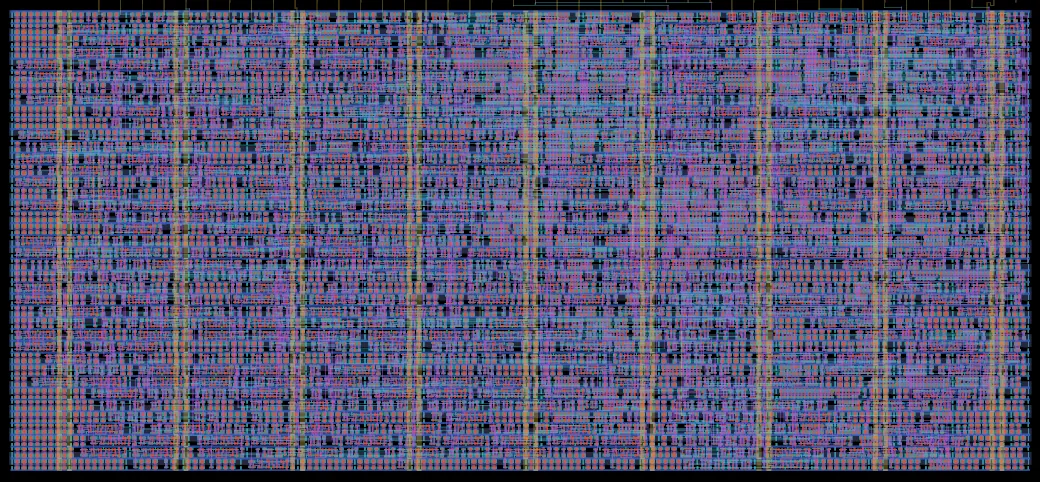

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Logic density
| Core average logic cells per mm² | 25k (33% of buffer maximum) |
|---|---|
| Densest 0.1 mm square logic cells per mm² | 33k (43% of buffer maximum) |
| Core covered by logic | 69% |
| Transistor density transistors per mm² | 286k average, 327k in the 0.1 mm square with the most logic cells |
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
PRISM plus Tiny Snake implemented in Wowki
Source repository Its page on Tiny TapeoutBuy this chip
| Size | 347 × 161 µm (0.056 mm²) |
|---|---|
| Macro | tt_um_wokwi_442081253563458561 |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.2 |
| Tiles | 1 × 1 at column 5, row 0 of the tile grid |
| Mux address | 579 |
| Language | Wokwi |
| Clock | 10 kHz |
| Built with | LibreLane 2.4.2, open_pdks 0fe599b2afb6 |
| Transistors | 15,989 |
| Logic cells | 1,401 + 1,766 filler and tap cells |
| Libraries | 7t-5V (1k) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this project's area splits between logic cells, filler and tap cells and other.
- Logic cells 0.04 mm² (69%)
- Filler and tap cells 0.01 mm² (24%)
- Other 4,033 µm² (7%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| clkinv_1 | 7t-5V | 318 | Clock inverter |
| and2_1 | 7t-5V | 262 | 2-input AND gate |
| dffq_1 | 7t-5V | 207 | D flip-flop (1 bit storage) |
| or2_1 | 7t-5V | 199 | 2-input OR gate |
| mux2_2 | 7t-5V | 62 | 2-input multiplexer (2x drive) |
| nand2_1 | 7t-5V | 50 | 2-input NAND gate |
| and2_4 | 7t-5V | 45 | 2-input AND gate (4x drive) |
| dffrsnq_1 | 7t-5V | 37 | D flip-flop with set and reset |
| buf_2 | 7t-5V | 30 | Buffer (2x drive) |
| xor2_1 | 7t-5V | 27 | 2-input XOR gate |
Logic density map
Logic cells per mm² in each 0.1 mm square of the project (counted in the square, scaled up to a mm²). Hatched outlines are SRAM macros; the red outline is the densest 0.1 mm square that avoids them (33k logic cells per mm²), found by sliding a 0.1 mm square over the project in 20 µm steps, so it can straddle the fixed squares and find more than any one of them. Squares at the edges are partial, so they read low.
