Tiny Tapeout GF 0.2 · Die TTPG on wafer.space Run 1: the power-gated edition
Notre Dame - CSE 30342 - DIC - Advanced FSM Final Project Example
358 · Other digital · 1 × 2 tiles
by Matthew Morrison · repository @mmorri22

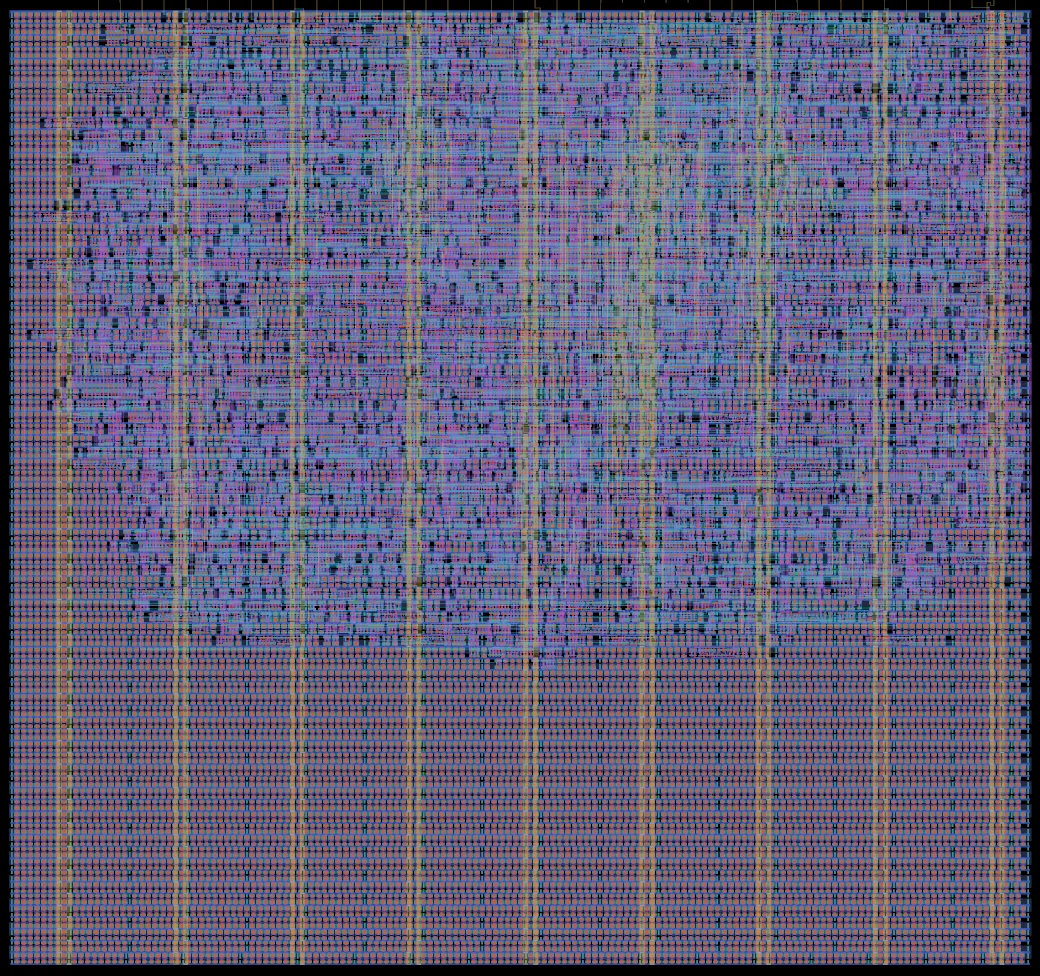

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Logic density
| Core average logic cells per mm² | 18k (23% of buffer maximum) |
|---|---|
| Densest 0.1 mm square logic cells per mm² | 35k (47% of buffer maximum) |
| Core covered by logic | 43% |
| Transistor density transistors per mm² | 261k average, 324k in the 0.1 mm square with the most logic cells |
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Example of SystemVerilog code with FSM and IO pipelining.
Source repository Its page on Tiny TapeoutBuy this chip
| Size | 347 × 325 µm (0.113 mm²) |
|---|---|
| Macro | tt_um_mmorri22_cse_30342 |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.2 |
| Tiles | 1 × 2 at column 7, row 14 of the tile grid |
| Mux address | 358 |
| Language | SystemVerilog |
| Clock | 10 kHz |
| Built with | LibreLane 2.4.2, open_pdks 0fe599b2afb6 |
| Transistors | 30,124 |
| Logic cells | 2,044 + 3,232 filler and tap cells |
| Libraries | 7t-5V (2k) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this project's area splits between logic cells, filler and tap cells and other.
- Logic cells 0.05 mm² (43%)
- Filler and tap cells 0.06 mm² (50%)
- Other 0.01 mm² (7%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| nand2_1 | 7t-5V | 318 | 2-input NAND gate |
| oai21_1 | 7t-5V | 192 | OR-AND-Invert compound gate |
| xor2_1 | 7t-5V | 170 | 2-input XOR gate |
| aoi21_1 | 7t-5V | 125 | AND-OR-Invert compound gate |
| nor2_1 | 7t-5V | 124 | 2-input NOR gate |
| clkinv_1 | 7t-5V | 83 | Clock inverter |
| nand3_1 | 7t-5V | 67 | 3-input NAND gate |
| dffrnq_2 | 7t-5V | 62 | D flip-flop with reset (2x drive) |
| oai211_1 | 7t-5V | 49 | OR-AND-Invert compound gate |
| buf_2 | 7t-5V | 43 | Buffer (2x drive) |
Logic density map
Logic cells per mm² in each 0.1 mm square of the project (counted in the square, scaled up to a mm²). Hatched outlines are SRAM macros; the red outline is the densest 0.1 mm square that avoids them (35k logic cells per mm²), found by sliding a 0.1 mm square over the project in 20 µm steps, so it can straddle the fixed squares and find more than any one of them. Squares at the edges are partial, so they read low.
