Tiny Tapeout GF 0.1 · Made on a GlobalFoundries private MPW run
Pad test buffer
BUFR · Test structures · 0.225 × 0.075 mm

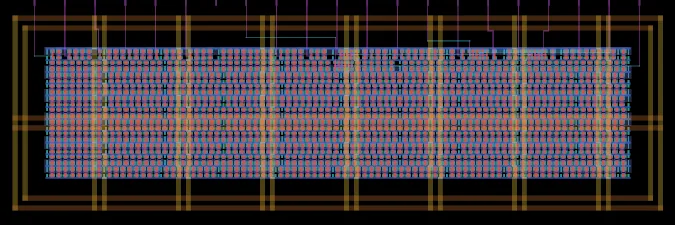

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
4 logic cells: too few for density figures, which are given for projects of 1,000 or more.
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Connects four of the chip's pins straight to the controls of a test input/output pad, so the pad cell can be driven directly, and ties off the loopback pads
| Size | 225 × 75 µm (0.017 mm²) |
|---|---|
| Cell | tt_buffer_macro |
| Transistors | 1,836 |
| Logic cells | 4 + 248 filler and tap cells |
| Libraries | 7t-5V (4) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
