Tiny Tapeout GF 26b · Die T26B on wafer.space Run 2
TT-Arrakeen-SPSRAM-direct-5V
065 · Analog and mixed-signal · 1 × 1 tile
by Staf Verhaegen

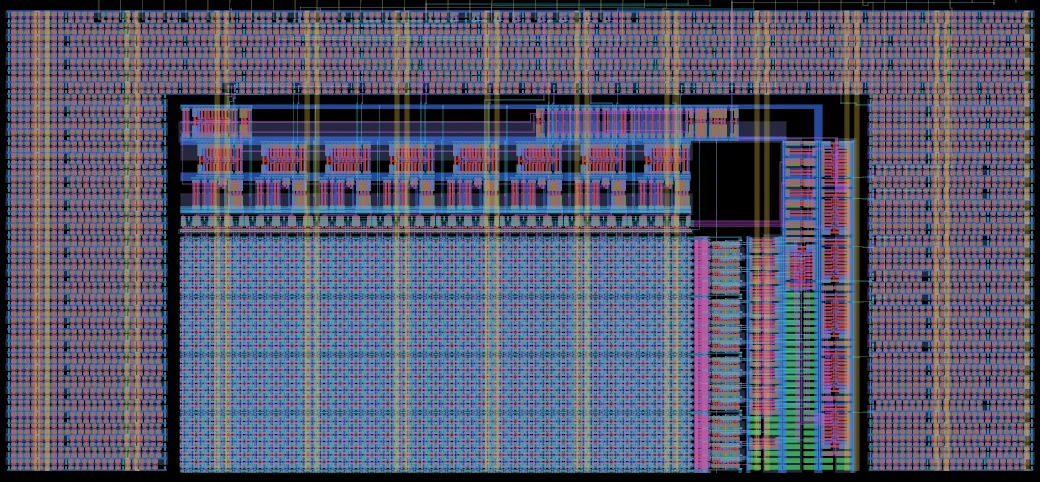

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
8 logic cells: too few for density figures, which are given for projects of 1,000 or more.
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Single port SRAM with pins connected directly to TT tile pins.
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 347 × 161 µm (0.056 mm²) |
|---|---|
| Macro | tt_um_arrakeen_spsram_direct_5v |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 26b |
| Tiles | 1 × 1 at column 4, row 8 of the tile grid |
| Mux address | 65 |
| Language | Full Custom |
| Clock | 66 MHz |
| Transistors | 12,220 |
| Logic cells | 8 + 890 filler and tap cells |
| Libraries | 7t-5V (8) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells, 7,382 custom transistors |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
