Tiny Tapeout GF 26a · Die T26A on wafer.space Run 2
038 · Test structures · 1 × 2 tiles
by Prof. Santhosh Sivasubramani, IIT Delhi

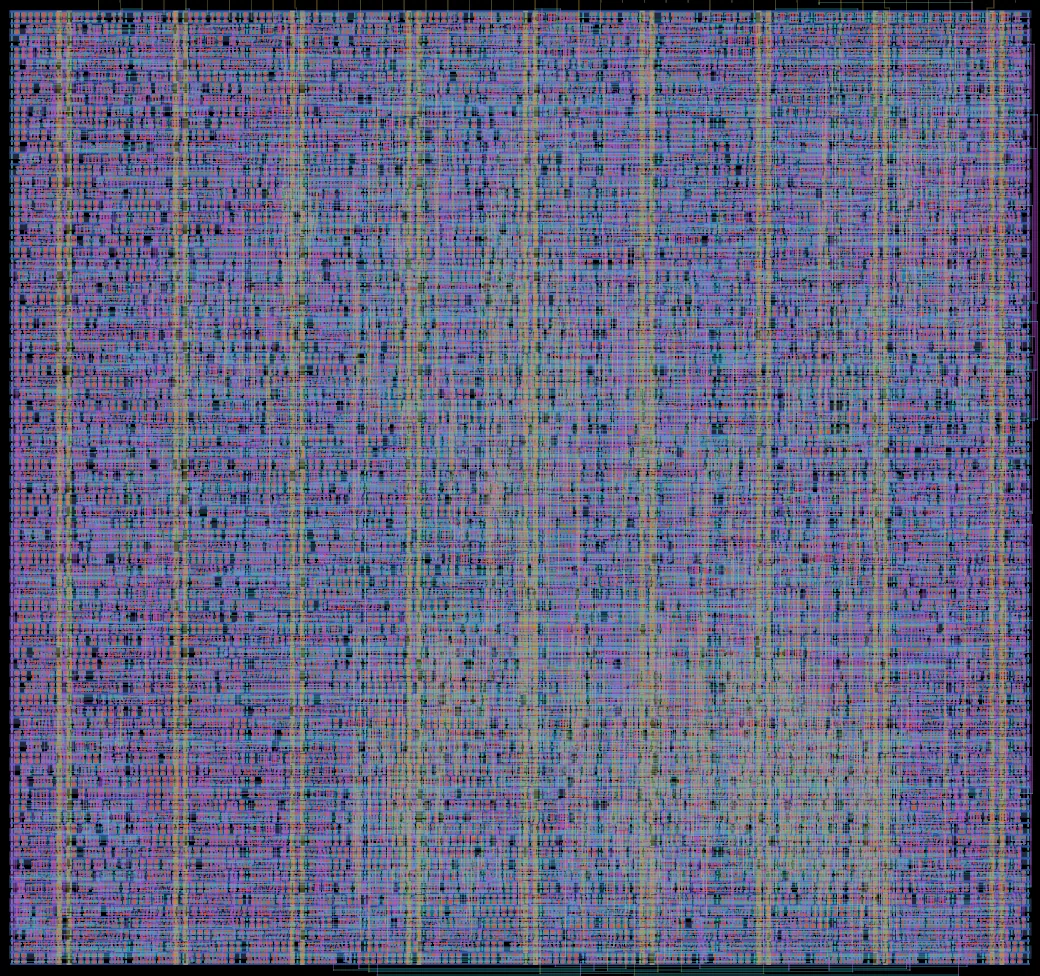

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
| Core average logic cells per mm² | 24k (32% of buffer maximum) |
|---|---|
| Densest 0.1 mm square logic cells per mm² | 33k (43% of buffer maximum) |
| Core covered by logic | 76% |
| Transistor density transistors per mm² | 310k average, 355k in the 0.1 mm square with the most logic cells |
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
GF180mcuD standalone characterization platform for one external resistive-switching device (RRAM / memristor / PCM). Drives an 8-bit DAC rail and reads back an 8-bit ADC rail, with four SPI-selectable modes: DC sweep (VSTART..VSTOP by VSTEP with on-chip 16-bin histogram and min/max tracking), pulse endurance (N cycles of SET/read-verify/RESET/read-verify with THR_LO / THR_HI checks, latches FAIL_IDX on first miss), retention (SET pulse then periodic reads at programmable interval), and free-running histogram capture. 25 MHz signoff clock.
Source repository no longer public Its page on Tiny TapeoutBuy a chip and board
| Size | 347 × 325 µm (0.113 mm²) |
|---|---|
| Macro | tt_um_santhosh_rsd_char_gf |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 26a |
| Tiles | 1 × 2 at column 0, row 10 of the tile grid |
| Mux address | 38 |
| Language | Verilog |
| Clock | 25 MHz |
| Built with | LibreLane 3.0.3, open_pdks 54435919abff |
| Transistors | 35,791 |
| Logic cells | 2,807 + 3,116 filler and tap cells |
| Libraries | 7t-5V (3k) |
| SRAM | No SRAM |
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
How this project's area splits between logic cells, filler and tap cells and other.
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| dffrnq_1 | 7t-5V | 392 | D flip-flop with reset |
| nand2_1 | 7t-5V | 285 | 2-input NAND gate |
| aoi22_1 | 7t-5V | 241 | AND-OR-Invert (2x2 inputs) |
| mux2_2 | 7t-5V | 234 | 2-input multiplexer (2x drive) |
| dlyb_1 | 7t-5V | 161 | Delay buffer |
| buf_2 | 7t-5V | 134 | Buffer (2x drive) |
| clkinv_1 | 7t-5V | 130 | Clock inverter |
| oai21_1 | 7t-5V | 123 | OR-AND-Invert compound gate |
| nor2_1 | 7t-5V | 104 | 2-input NOR gate |
| clkbuf_2 | 7t-5V | 74 | Clock buffer (2x drive) |
Logic cells per mm² in each 0.1 mm square of the project (counted in the square, scaled up to a mm²). Hatched outlines are SRAM macros; the red outline is the densest 0.1 mm square that avoids them (33k logic cells per mm²), found by sliding a 0.1 mm square over the project in 20 µm steps, so it can straddle the fixed squares and find more than any one of them. Squares at the edges are partial, so they read low.
