Tiny Tapeout GF 0.2 · Die TTPG on wafer.space Run 1: the power-gated edition
DDR throughput and flop aperture test
613 · Other digital · 1 × 1 tile
by Darryl Miles project from Eric Smith · repository @dlmiles

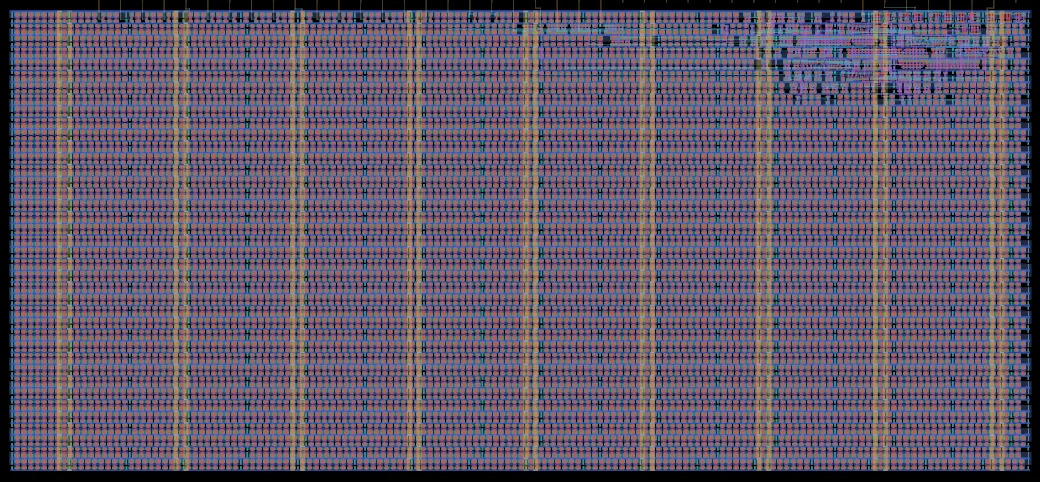

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
90 logic cells: too few for density figures, which are given for projects of 1,000 or more.
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Grab data on every edge of clock with varying pos pulse width
Source repository Its page on Tiny TapeoutBuy this chip
| Size | 347 × 161 µm (0.056 mm²) |
|---|---|
| Macro | tt_um_dlmiles_ddr_throughput_test |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.2 |
| Tiles | 1 × 1 at column 6, row 19 of the tile grid |
| Mux address | 613 |
| Language | Verilog |
| Built with | LibreLane 2.4.2, open_pdks 0fe599b2afb6 |
| Transistors | 11,581 |
| Logic cells | 90 + 1,284 filler and tap cells |
| Libraries | 7t-5V (90) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this project's area splits between logic cells, filler and tap cells and other.
- Logic cells 2,066 µm² (4%)
- Filler and tap cells 0.05 mm² (89%)
- Other 4,033 µm² (7%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| inv_2 | 7t-5V | 40 | Inverter (2x drive) |
| clkinv_1 | 7t-5V | 16 | Clock inverter |
| and2_2 | 7t-5V | 8 | 2-input AND gate (2x drive) |
| dlyb_1 | 7t-5V | 5 | Delay buffer |
| buf_4 | 7t-5V | 4 | Buffer (4x drive) |
| dffrnq_2 | 7t-5V | 4 | D flip-flop with reset (2x drive) |
| or2_2 | 7t-5V | 4 | 2-input OR gate (2x drive) |
| clkbuf_16 | 7t-5V | 3 | Clock buffer (16x drive) |
| buf_1 | 7t-5V | 1 | Buffer |
| buf_2 | 7t-5V | 1 | Buffer (2x drive) |
Tiny Tapeout and wafer.space are independent companies that work together (announcement). Tiny Tapeout runs its own shuttles: it takes the projects, builds the die, and sells and supports the chips and boards. wafer.space has the dies manufactured on its GF180MCU runs, and these pages are wafer.space's measurements of them. For anything about a Tiny Tapeout project, chip or order, contact Tiny Tapeout.
