Tiny Tapeout GF 0.2 · Die TTP2 on wafer.space Run 1: the standard edition

easy PAL

198 · Other digital · 1 × 2 tiles

by Ken Pettit

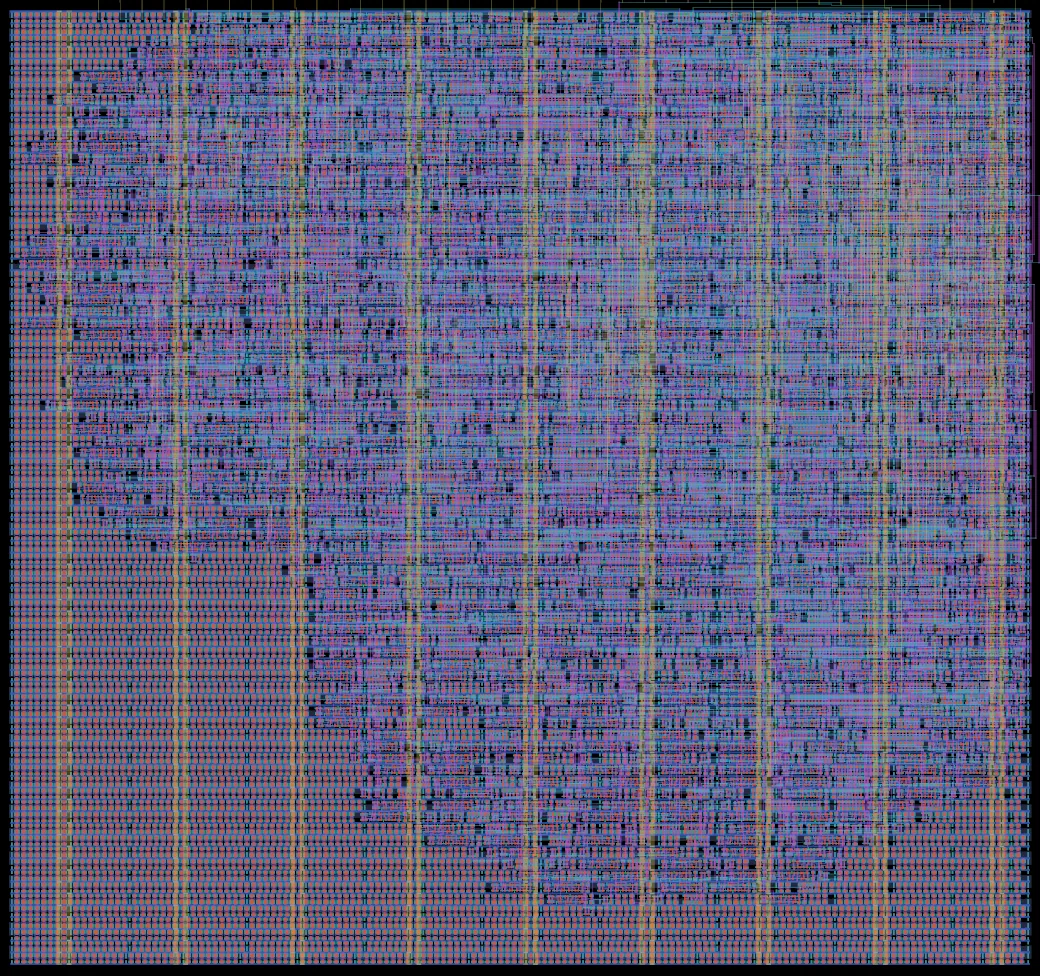

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings

Logic density

Core average
logic cells per mm²
16k (22% of buffer maximum)
Densest 0.1 mm square
logic cells per mm²
26k (35% of buffer maximum)
Core covered by logic61%
Transistor density
transistors per mm²
291k average, 331k in the 0.1 mm square with the most logic cells

Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.

This is a simple PAL (by Matthias Musch) using shift-register based configuration

Size347 × 325 µm (0.113 mm²)
Macrott_um_MATTHIAS_M_PAL_TOP_WRAPPER
Filesdocumentation · licence · layout and netlist in Tiny Tapeout GF 0.2
Tiles1 × 2 at column 7, row 7 of the tile grid
Mux address198
LanguageVerilog
Built withLibreLane 2.4.2, open_pdks 0fe599b2afb6
Transistors33,566
Logic cells1,890 + 2,935 filler and tap cells
Libraries 7t-5V (2k)
SRAMNo SRAM

Process features

Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.

5 V7t-5V standard cells
Gate oxidesThick only (5 V/6 V) in the design itself

Where the area went

How this project's area splits between logic cells, filler and tap cells and other.

61%
33%
  • Logic cells 0.07 mm² (61%)
  • Filler and tap cells 0.04 mm² (33%)
  • Other 0.01 mm² (7%)

Most used cells

The ten standard cells this design uses most.

CellLibraryInstancesWhat it does
and2_17t-5V 6042-input AND gate
dffq_17t-5V 598D flip-flop (1 bit storage)
mux2_27t-5V 1432-input multiplexer (2x drive)
clkbuf_27t-5V 68Clock buffer (2x drive)
buf_27t-5V 65Buffer (2x drive)
aoi22_17t-5V 61AND-OR-Invert (2x2 inputs)
buf_17t-5V 31Buffer
aoi22_27t-5V 28AND-OR-Invert (2x2 inputs, 2x drive)
clkinv_17t-5V 26Clock inverter
or4_27t-5V 214-input OR gate (2x drive)
