VGA Clock for GF180
0ABD · Retro computing · 1 × 1 slot

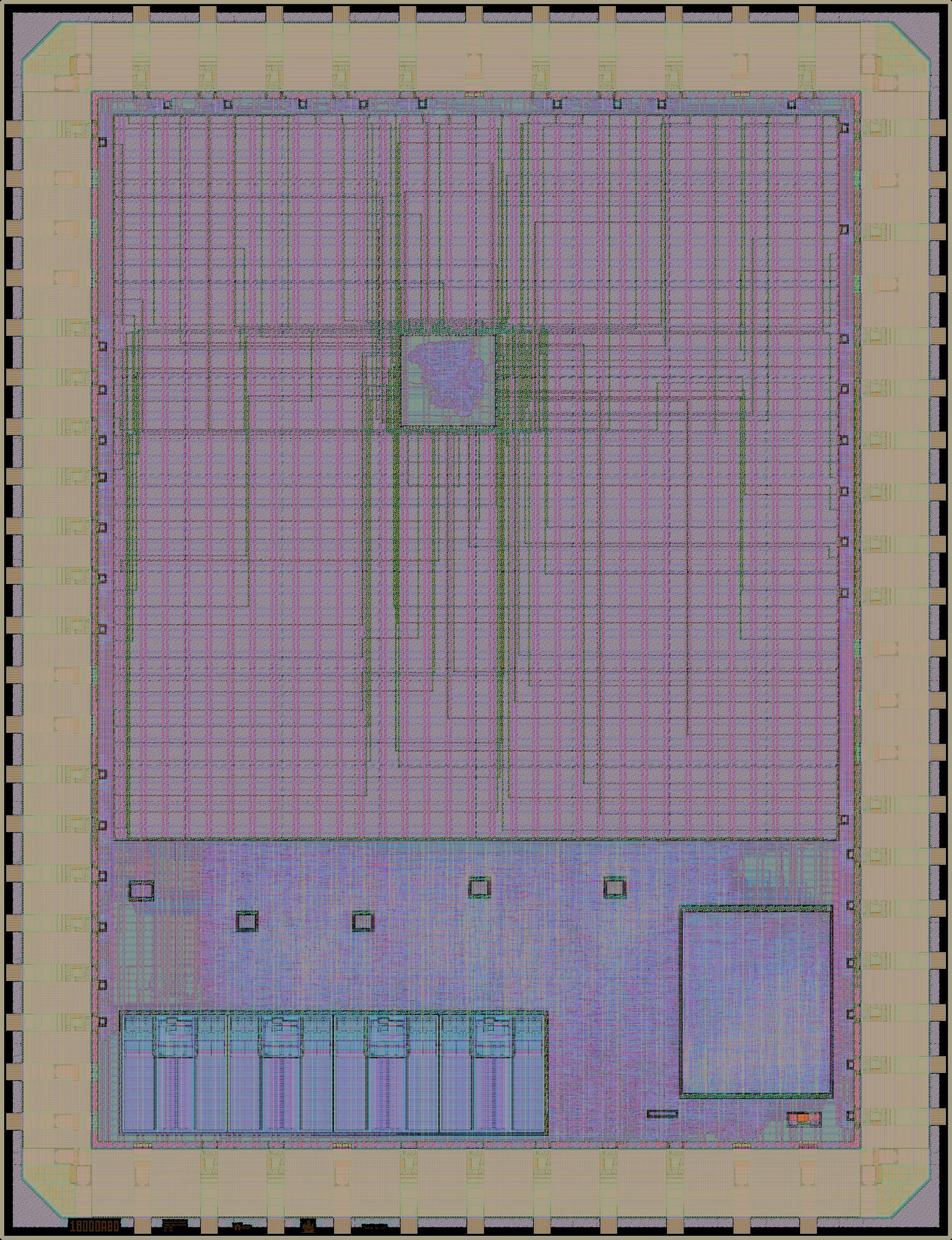

Rendered from the layout at 2.5 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Logic density
| Core average logic cells per mm² | <1k (<1% of buffer maximum) |
|---|---|
| Densest mm² logic cells per mm² | 1k (2% of buffer maximum) |
| Core covered by logic | <1% |
| Transistor density transistors per mm² | 4k average, 33k in the mm² with the most logic cells |
Every figure here is measured from the public layout, the same way for every design on the run: see data and method, and how its designs used the process.
Fork of Matt Venn's VGA clock for GF180MCU, by Russell L Friesenhahn.
| Die | 3.93 × 5.12 mm (20.1 mm²) |
|---|---|
| Core area | 9.00 mm² inside the pad ring
its user_project_wrapper cell |
| Placements | 1 on the reticle, in slot B1 |
| Bond pads | 63 |
| Transistors | 33,316 |
| Logic cells | 1,319 + 8,052 filler and tap cells |
| Libraries | 7t-5V (1k) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this design's area splits between logic cells, filler and tap cells, other and outside the user area.
- Logic cells 0.04 mm² (<1%)
- Filler and tap cells 0.10 mm² (1%)
- Other 8.85 mm² (44%)
- Outside the user area 11.12 mm² (55%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| dffq_1 | 7t-5V | 212 | D flip-flop (1 bit storage) |
| clkbuf_1 | 7t-5V | 117 | Clock buffer |
| nand2_1 | 7t-5V | 96 | 2-input NAND gate |
| nor2_1 | 7t-5V | 95 | 2-input NOR gate |
| mux2_2 | 7t-5V | 80 | 2-input multiplexer (2x drive) |
| aoi21_1 | 7t-5V | 79 | AND-OR-Invert compound gate |
| clkinv_1 | 7t-5V | 67 | Clock inverter |
| clkbuf_16 | 7t-5V | 55 | Clock buffer (16x drive) |
| oai21_1 | 7t-5V | 53 | OR-AND-Invert compound gate |
| and2_1 | 7t-5V | 48 | 2-input AND gate |
Logic density map
Logic cells per mm² in each square millimetre of the die. Hatched outlines are SRAM macros; the red outline is the densest mm² that avoids them (1k logic cells per mm²), found by sliding a 1 mm square over the die in 0.1 mm steps, so it can straddle the fixed squares and find more than any one of them. Squares at the edges are partial, so they read low.
