Tiny Tapeout GF 26a · Die T26A on wafer.space Run 2
ram 1 bit Copy
614 · Other digital · 1 × 1 tile
by siningua_alagartos · repository @siningua

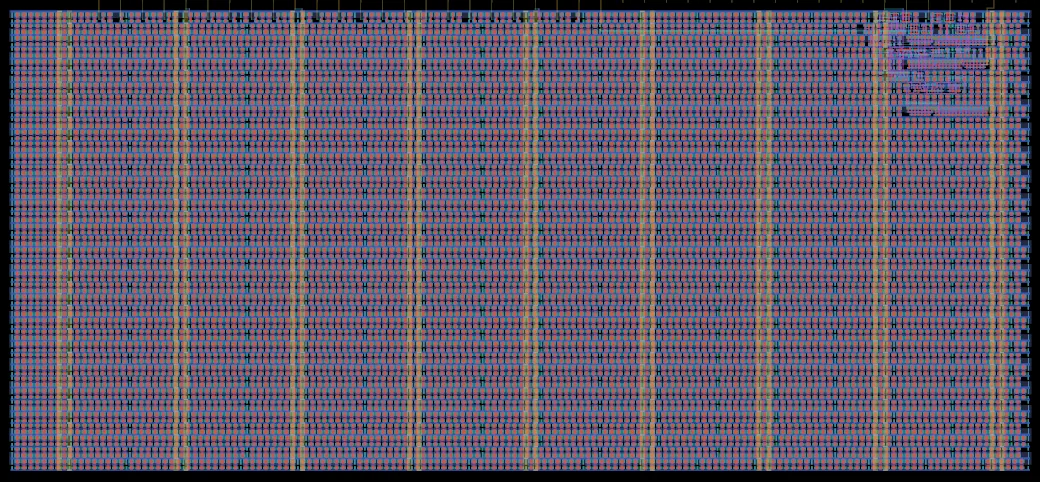

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
22 logic cells: too few for density figures, which are given for projects of 1,000 or more.
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
ram de 1 bit con dos posiciones
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 347 × 161 µm (0.056 mm²) |
|---|---|
| Macro | tt_um_wokwi_465630130495825921 |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 26a |
| Tiles | 1 × 1 at column 7, row 18 of the tile grid |
| Mux address | 614 |
| Language | Wokwi |
| Clock | 10 kHz |
| Built with | LibreLane 3.0.3, open_pdks 54435919abff |
| Transistors | 11,476 |
| Logic cells | 22 + 1,277 filler and tap cells |
| Libraries | 7t-5V (22) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this project's area splits between logic cells, filler and tap cells and other.
- Logic cells 858 µm² (2%)
- Filler and tap cells 0.05 mm² (91%)
- Other 4,033 µm² (7%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| clkinv_1 | 7t-5V | 5 | Clock inverter |
| dlyb_1 | 7t-5V | 4 | Delay buffer |
| clkbuf_16 | 7t-5V | 3 | Clock buffer (16x drive) |
| mux2_2 | 7t-5V | 3 | 2-input multiplexer (2x drive) |
| and2_1 | 7t-5V | 2 | 2-input AND gate |
| dffrsnq_1 | 7t-5V | 2 | D flip-flop with set and reset |
| nand2_1 | 7t-5V | 2 | 2-input NAND gate |
| buf_2 | 7t-5V | 1 | Buffer (2x drive) |
