Tiny Tapeout GF 26a · Die T26A on wafer.space Run 2
spiPWMio
480 · Other digital · 1 × 1 tile
by Sönke Appel · repository @FHW-Appel

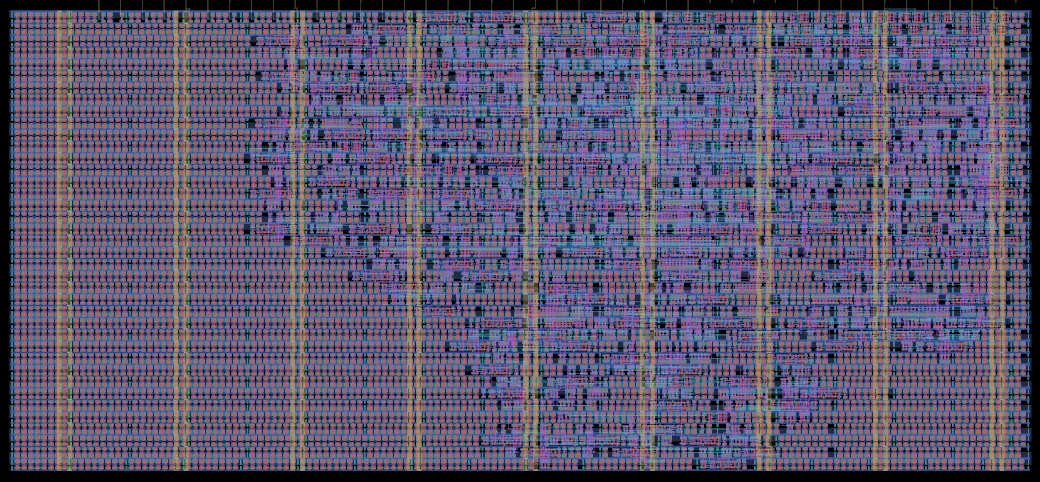

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
710 logic cells: too few for density figures, which are given for projects of 1,000 or more.
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
A PWM input and PWM generator are configurable via input pins, readable via output pins, and accessible via SPI for read and write operations.
Source repository Its page on Tiny TapeoutBuy a chip and board
| Size | 347 × 161 µm (0.056 mm²) |
|---|---|
| Macro | tt_um_fhw_appel_spiPWMio |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 26a |
| Tiles | 1 × 1 at column 4, row 16 of the tile grid |
| Mux address | 480 |
| Language | Verilog |
| Clock | 12 MHz |
| Built with | LibreLane 3.0.3, open_pdks 54435919abff |
| Transistors | 13,588 |
| Logic cells | 710 + 1,873 filler and tap cells |
| Libraries | 7t-5V (710) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this project's area splits between logic cells, filler and tap cells and other.
- Logic cells 0.02 mm² (35%)
- Filler and tap cells 0.03 mm² (58%)
- Other 4,033 µm² (7%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| dffq_1 | 7t-5V | 120 | D flip-flop (1 bit storage) |
| nor2_1 | 7t-5V | 68 | 2-input NOR gate |
| oai21_1 | 7t-5V | 66 | OR-AND-Invert compound gate |
| clkinv_1 | 7t-5V | 65 | Clock inverter |
| aoi21_1 | 7t-5V | 63 | AND-OR-Invert compound gate |
| nand2_1 | 7t-5V | 52 | 2-input NAND gate |
| dlyb_1 | 7t-5V | 43 | Delay buffer |
| aoi211_1 | 7t-5V | 29 | AND-OR-Invert compound gate |
| nor3_1 | 7t-5V | 25 | 3-input NOR gate |
| clkbuf_2 | 7t-5V | 23 | Clock buffer (2x drive) |
