Tiny Tapeout GF 0.2 · Die TTP2 on wafer.space Run 1: the standard edition
PILIPINAS_IC
577 · Other digital · 1 × 1 tile
by Alexander Co Abad and Dino Dominic Ligutan · repository @alexandercoabad

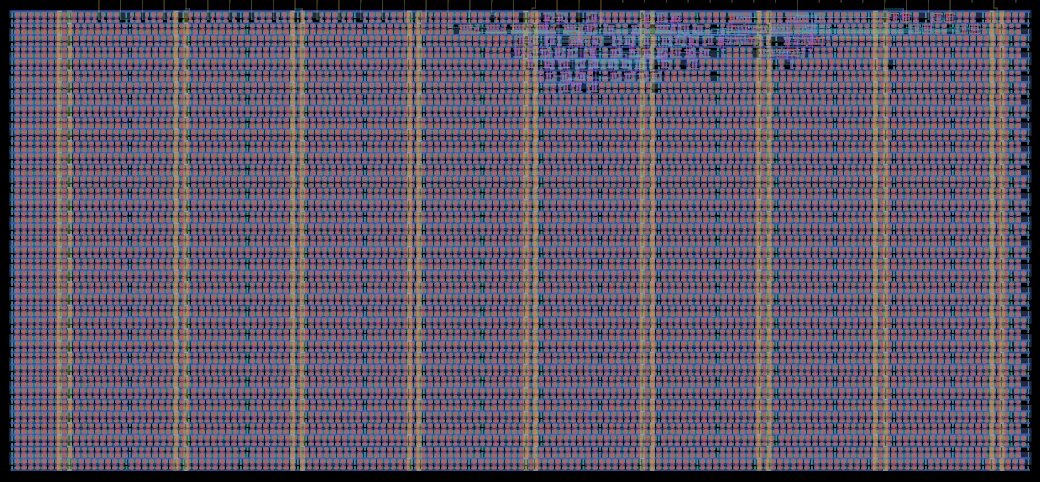

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
82 logic cells: too few for density figures, which are given for projects of 1,000 or more.
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
7-seg Display for PILIPINASLASALLE
Source repository Its page on Tiny TapeoutBuy this chip
| Size | 347 × 161 µm (0.056 mm²) |
|---|---|
| Macro | tt_um_wokwi_392873974467527681 |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.2 |
| Tiles | 1 × 1 at column 4, row 0 of the tile grid |
| Mux address | 577 |
| Language | Wokwi |
| Clock | 1 Hz |
| Built with | LibreLane 2.4.2, open_pdks 0fe599b2afb6 |
| Transistors | 11,535 |
| Logic cells | 82 + 1,309 filler and tap cells |
| Libraries | 7t-5V (82) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this project's area splits between logic cells, filler and tap cells and other.
- Logic cells 1,778 µm² (3%)
- Filler and tap cells 0.05 mm² (90%)
- Other 4,033 µm² (7%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| and2_1 | 7t-5V | 37 | 2-input AND gate |
| or2_1 | 7t-5V | 16 | 2-input OR gate |
| clkbuf_3 | 7t-5V | 7 | Clock buffer (3x drive) |
| clkinv_1 | 7t-5V | 6 | Clock inverter |
| dffq_1 | 7t-5V | 4 | D flip-flop (1 bit storage) |
| dlyb_1 | 7t-5V | 4 | Delay buffer |
| mux2_2 | 7t-5V | 4 | 2-input multiplexer (2x drive) |
| inv_1 | 7t-5V | 2 | Inverter |
| buf_2 | 7t-5V | 1 | Buffer (2x drive) |
| clkbuf_2 | 7t-5V | 1 | Clock buffer (2x drive) |
