LEDs Racer
384 · Games · 1 × 2 tiles
by KerCrafter · repository @KerCrafter

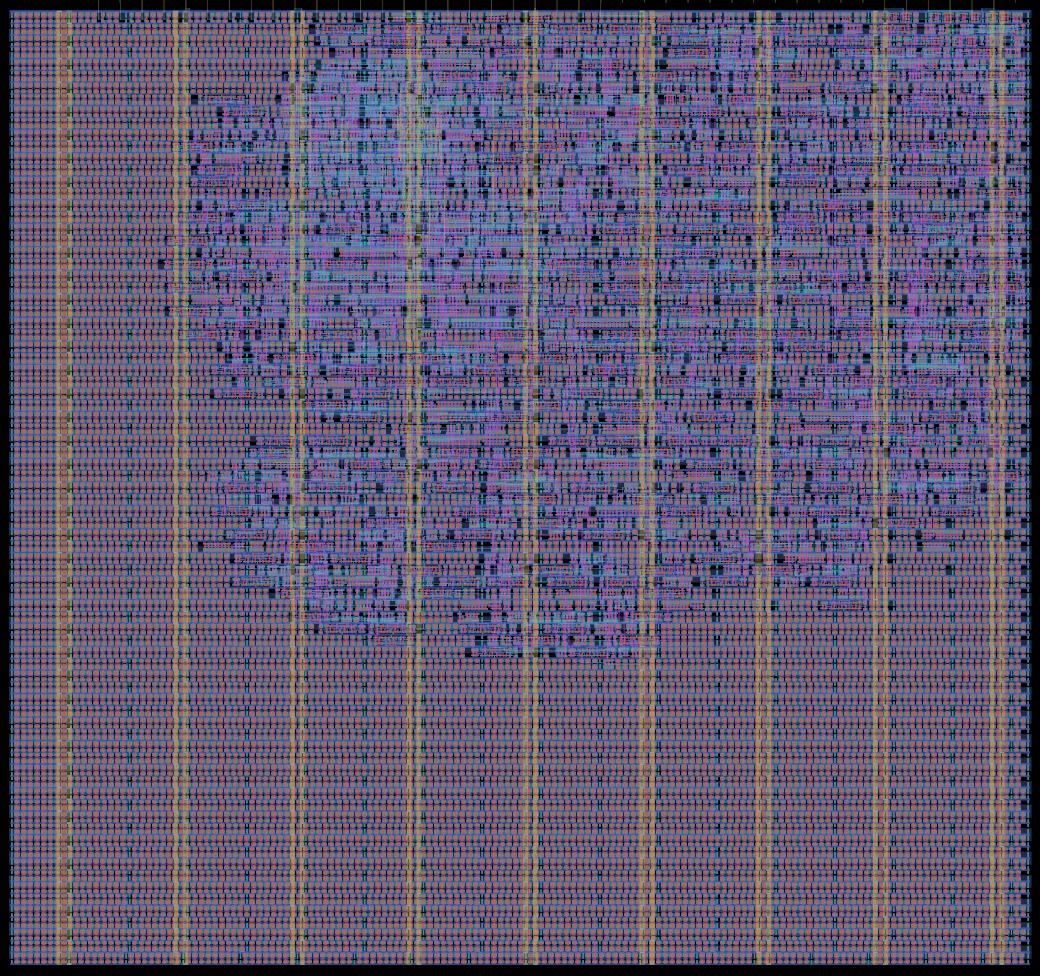

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Logic density
| Core average logic cells per mm² | 11k (15% of buffer maximum) |
|---|---|
| Densest 0.1 mm square logic cells per mm² | 31k (41% of buffer maximum) |
| Core covered by logic | 32% |
| Transistor density transistors per mm² | 245k average, 320k in the 0.1 mm square with the most logic cells |
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
Funny electronic game with WS2812B LEDs
Source repository Its page on Tiny TapeoutBuy this chip
| Size | 347 × 325 µm (0.113 mm²) |
|---|---|
| Macro | tt_um_kercrafter_leds_racer |
| Files | documentation · licence · layout and netlist in Tiny Tapeout GF 0.2 |
| Tiles | 1 × 2 at column 3, row 3 of the tile grid |
| Mux address | 384 |
| Language | Verilog |
| Clock | 50 MHz |
| Built with | LibreLane 2.4.2, open_pdks 0fe599b2afb6 |
| Transistors | 28,288 |
| Logic cells | 1,315 + 3,292 filler and tap cells |
| Libraries | 7t-5V (1k) |
| SRAM | No SRAM |
