2x2 MAC Systolic array with DFT
129 · Other digital · 1 × 2 tiles
by Julia Desmazes · repository @Essenceia

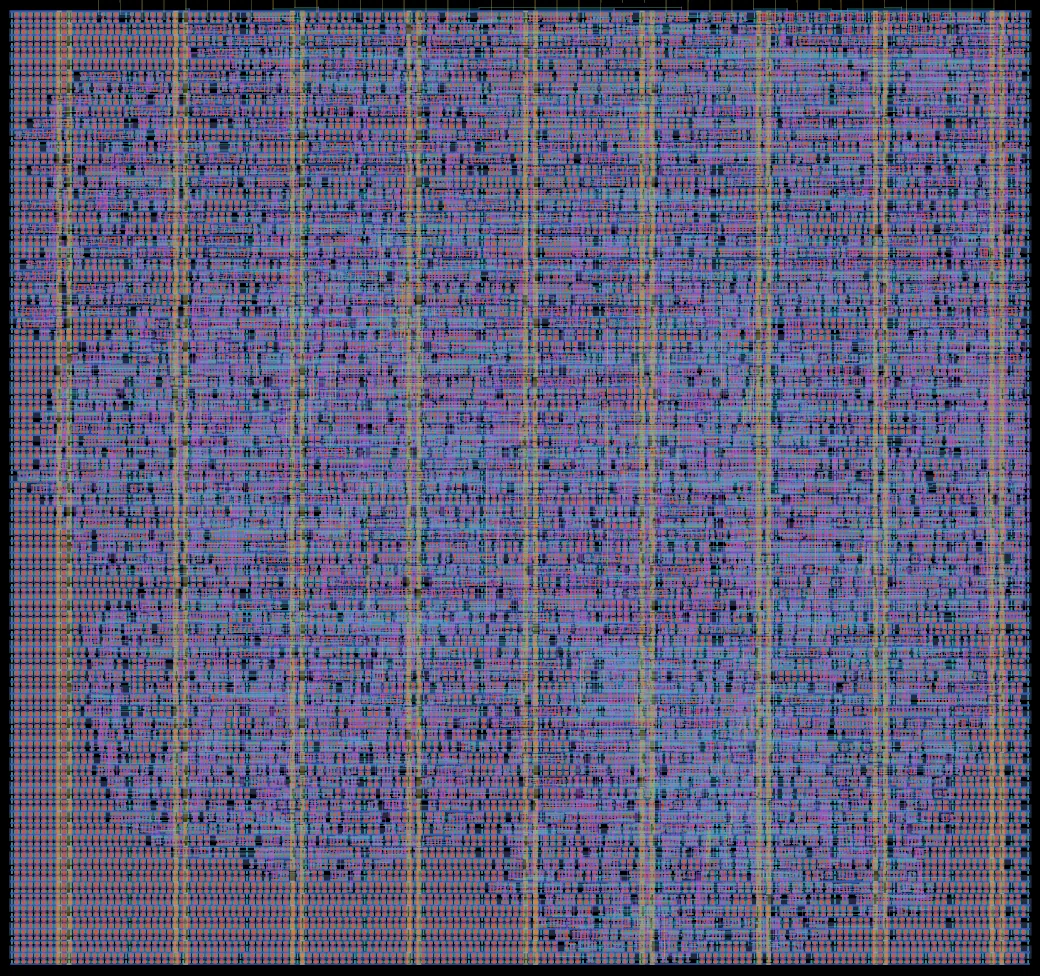

Rendered from the layout at 0.33 µm per pixel. Layers: NwellDiffusionPolysiliconMetal 1Metal 2Metal 3Metal 4Metal 5Top metalPad openings
Logic density
| Core average logic cells per mm² | 23k (31% of buffer maximum) |
|---|---|
| Densest 0.1 mm square logic cells per mm² | 36k (47% of buffer maximum) |
| Core covered by logic | 64% |
| Transistor density transistors per mm² | 289k average, 339k in the 0.1 mm square with the most logic cells |
Every figure here is measured from the public layout, the same way for every design on the chip: see data and method, and how its designs used the process.
2x2 multiply and accumulate systolic array supporting signed 8 bit values with design for test infrastructure.
Source repository Its page on Tiny TapeoutBuy this chip
| Size | 347 × 325 µm (0.113 mm²) |
|---|---|
| Macro | tt_um_essen |
| Files | documentation · layout and netlist in Tiny Tapeout GF 0.2 |
| Tiles | 1 × 2 at column 3, row 6 of the tile grid |
| Mux address | 129 |
| Language | Verilog |
| Clock | 50 MHz |
| Built with | LibreLane 2.4.2, open_pdks 0fe599b2afb6 |
| Transistors | 33,358 |
| Logic cells | 2,711 + 3,477 filler and tap cells |
| Libraries | 7t-5V (3k) |
| SRAM | No SRAM |
Process features
Which parts of the GF180MCU process this design uses: its transistor voltages and where they come from, its gate oxides, and any devices drawn by hand outside the standard cells, SRAM and pads.
| 5 V | 7t-5V standard cells |
|---|---|
| Gate oxides | Thick only (5 V/6 V) in the design itself |
Where the area went
How this project's area splits between logic cells, filler and tap cells and other.
- Logic cells 0.07 mm² (64%)
- Filler and tap cells 0.03 mm² (30%)
- Other 0.01 mm² (7%)
Most used cells
The ten standard cells this design uses most.
| Cell | Library | Instances | What it does |
|---|---|---|---|
| nand2_1 | 7t-5V | 308 | 2-input NAND gate |
| dffq_1 | 7t-5V | 205 | D flip-flop (1 bit storage) |
| oai21_1 | 7t-5V | 205 | OR-AND-Invert compound gate |
| xor2_1 | 7t-5V | 195 | 2-input XOR gate |
| clkinv_1 | 7t-5V | 148 | Clock inverter |
| nor2_1 | 7t-5V | 142 | 2-input NOR gate |
| aoi21_1 | 7t-5V | 122 | AND-OR-Invert compound gate |
| aoi22_1 | 7t-5V | 102 | AND-OR-Invert (2x2 inputs) |
| mux2_2 | 7t-5V | 87 | 2-input multiplexer (2x drive) |
| xnor2_1 | 7t-5V | 77 | 2-input XNOR gate |
Logic density map
Logic cells per mm² in each 0.1 mm square of the project (counted in the square, scaled up to a mm²). Hatched outlines are SRAM macros; the red outline is the densest 0.1 mm square that avoids them (36k logic cells per mm²), found by sliding a 0.1 mm square over the project in 20 µm steps, so it can straddle the fixed squares and find more than any one of them. Squares at the edges are partial, so they read low.
